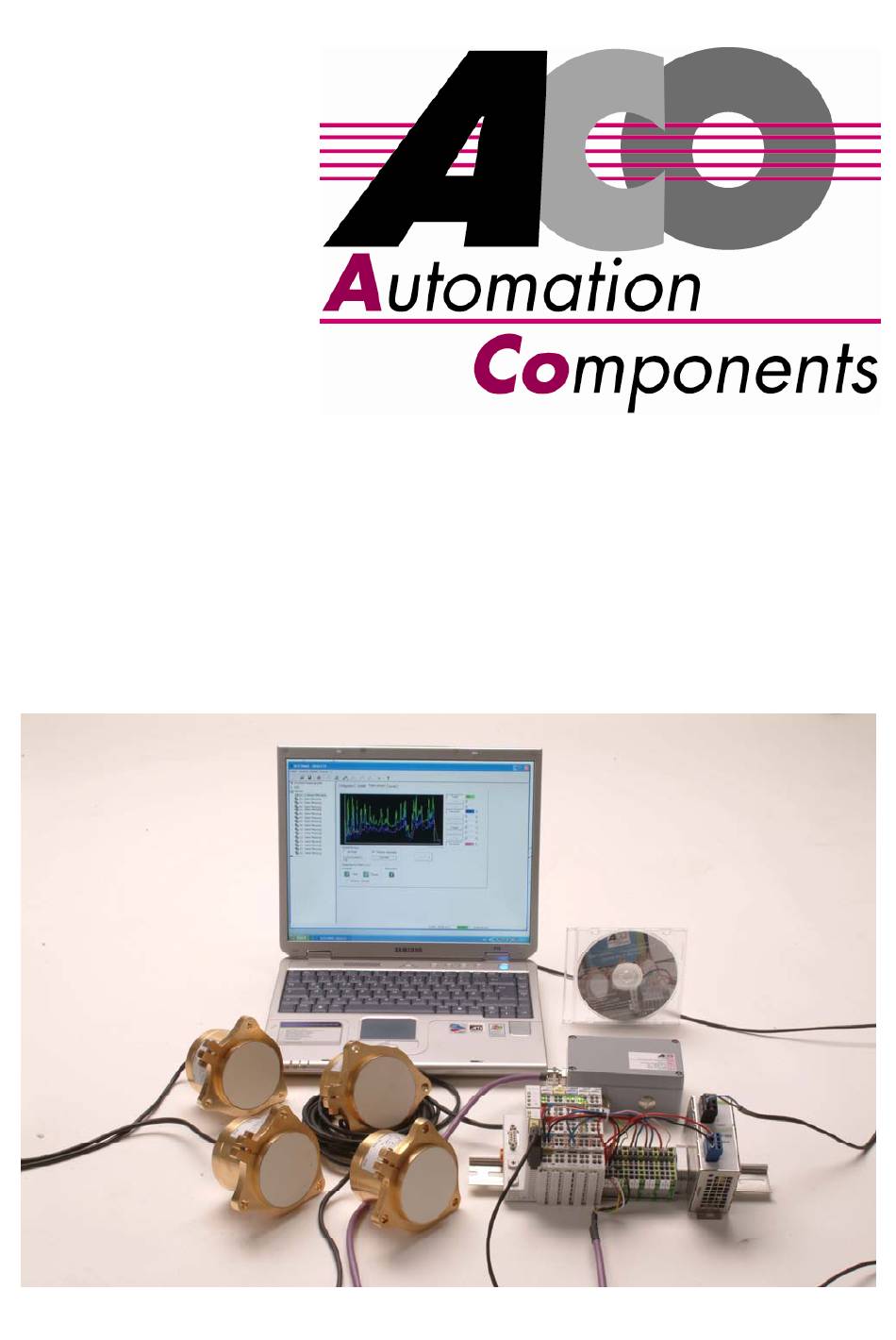

- Page 1 ACO - DMMS - DIGISYS Moisture Measuring System Operating Instructions ACO-DMMS- Moisture Measuring System (2008)
-
Page 3: Table Of Contents
ACO AUTOMATION COMPONENTS Table of Contents FOREWORD ......................NOTES ON SAFETY....................TECHNICAL DATA ....................DMMS sensor .............................6 Bus connection socket........................7 Interchange and evaluation unit.......................8 Power pack (DIN rail mounting)......................9 Profibus DP measured value transmission...................10 PC-Software............................10 SYSTEM SUMMARY ....................MOISTURE SENSOR.................... -
Page 5: Foreword
Fax.:+49 7746 91317 Email: info@acoweb.de ACO AUTOMATION COMPONENTS have taken all necessary care to ensure utmost correctness during compilation of these operating instructions. The data specified serves the product description only and should not be interpreted as guaranteed properties in a legal sense. -
Page 6: Notes On Safety
ACO AUTOMATION COMPONENTS Notes on safety Warning information and symbols Tasks and operating phases which represent an increased danger to persons or the system are indicated with special symbols. In these operating instructions, the symbols carry the following meanings: DANGER indicates a particularly dangerous situation. - Page 7 ACO AUTOMATION COMPONENTS General operational safety • Ensure that the operating instructions are on-hand in the switch cabinet, within which the Interchange and evaluation unit is installed, at all times! • Observe and apply any supplements to the operating instructions, general valid, legal and other obliga- tory regulations regarding accident-prevention (e.g.
-
Page 8: Technical Data
ACO AUTOMATION COMPONENTS Technical data Technical data DMMS sensor Technical data sheet: Physical principal Determination of capacity in the high-frequency stray field frequency Measuring location Outside of the silo, within the silo, via deflection plate, on a belt with guide shoe slides, pipes, conveyor screws Measuring frequency 0.016 ..0.022 GHz... -
Page 9: Bus Connection Socket
ACO AUTOMATION COMPONENTS Bus connection socket Technical data sheet: Housing material Aluminium Weight 200 g Colour Grey Height [mm] 57.5 mm Height [inches] 2.26 in Width [mm] 125 mm Width [inches] 4.92 in Depth [mm] 80 mm Depth [inches] 3.15 in Operating temperature -25 °C ... -
Page 10: Interchange And Evaluation Unit
ACO AUTOMATION COMPONENTS Technical data Interchange and evaluation unit These technical data sheets can be obtained directly from WAGO Kontakttechnik GmbH, Minden, or by way of the internet site: http://www.wago.com WAGO 750-833 WAGO 750-550 Field bus controller 2-channel PROFIBUS DP/V1... -
Page 11: Power Pack (Din Rail Mounting)
ACO AUTOMATION COMPONENTS Power pack (DIN rail mounting) Technical data sheet: Type PH15-2406 Manufacturer: MGV Stromversorgungen (Internet: www.mgv.de) Weight 0.130kg Dimensions (B x H x D) 25 x 76 x 74 mm Operating temperature 0...70°C, with free convection Overtemperature protection... -
Page 12: Profibus Dp Measured Value Transmission
ACO AUTOMATION COMPONENTS Technical data PROFIBUS DP measured value transmission Technical data sheet: Hardware WAGO 750-833/000-002 field bus controller Transmission medium Cu-cable EN50170 Bus segment length 100..1200m Baud rate 9600.. 12M bit/s Bus connector 9-pin Sub-D male Protocol DP / DPVI GSD - file WAGOB756.GSD download:... -
Page 13: System Summary
PROFIBUS-DP Measured value transmission- Material curve change-over RS-232 Analogue measured value out- put 0-10V, 4-20mA digital in- DIGISYS/DMMS PC software puts for Start/Stop control Measured value display, cali- and material curve change-over, digital bration,set-up, material curves, outputs for limit signalisation... -
Page 14: Moisture Sensor
ACO AUTOMATION COMPONENTS DMMS moisture sensor DMMS moisture sensor The DMMS sensor is a so-called "intelligent sensor", thus, the installed µ-processor allows complete solving of the problem in one component, as well as an expanded functionality. • Direct digital measuring procedure •... - Page 15 ACO AUTOMATION COMPONENTS CAUTION Damage to the system. • Do not open the cable clamp on the sensor. • Do not strike the ceramic wear shield directly with a hammer. • Install the sensor flush to prevent material encrustations or premature wear.
-
Page 16: Digisys Bus Connection Socket
ACO AUTOMATION COMPONENTS Bus connection socket Bus connection socket The ACO bus connection socket facilitates installation of the sensor bus: • Protection type IP66 • Connection of 1 or 2 moisture sensors • Connection of 1 or 2 bus lines •... -
Page 17: Digisys Interchange And Evaluation Unit
WAGO Kontakttechnik GmbH, Min- den, or alternatively, from the internet site from WAGO Kontakttechnik GmbH: http://www.wago.com. The field bus controller 750-833000-002 includes a ACO-specific Firmware, comprising the complete ACO- DIGISYS - approach: •... - Page 18 ACO AUTOMATION COMPONENTS DIGISYS interchange and evaluation unit PROFIBUS DP Moisture and temperature values, status and error reports from all 16 channels can be read from the control- ler via the PROFIBUS DP, and all control signals such as Start, Fine and Manual can be set.
-
Page 19: Led-Signalisation
ACO AUTOMATION COMPONENTS LED-signalisation Colour Explanation A B C D green Operating voltage available green The field bus was efficiently initialised. (flashing) red Communication via the PROFIBUS is not functioning. An external diagnosis is being performed. Flashing code Projection error... -
Page 20: Connection / Wiring
Connection / wiring The I/O modules must be inserted in a determined sequence on a carrier rail (35x7.5 mm): Amount WAGO Module type Field bus controller PROFIBUS DP / V1 with ACO/LMT soft- 750-833 ware 0 to 4 750-402 4-channel digital input terminal 3ms... - Page 21 ACO AUTOMATION COMPONENTS PROFIBUS with output 2 x 4..20mA A controller PROFIBUS DP D output terminal 4..20mA +A1+A2 G RS485 interface H end terminal J terminal block 1 cable 4..20mA channel 1 2 cable 4..20mA channel 2 ADDRESS 3 configuration interfaces...
-
Page 22: Pc-Software Dmms/Digisys
PC-Software DMMS/DIGISYS PC-Software DMMS/DIGISYS The multi-lingual PC-Software DMMS/DIGISYS allows the possibility of connection to the interchange and evaluation unit. Configuration interface A is connected with the communication cable B to serial interface C of a PC/ notebook. In the event that the PC does not feature a serial interface, please find a „USB RS232 serial adapter“, included in delivery, and follow the operating instructions of the manufacturer. -
Page 23: General Notes On Operation
Allows quick access to the following menu functions: New Open Save As Print Connect Disconnect Read all Read Write Write all Restart About Menu structure File Creates a new file with DMMS- settings Open Opens a file with equipment - settings Save... -
Page 24: Extras / Settings
User and passwords Menu DMMS / connect The configuration interface must be connected with the communication cable and the serial interface (COM-port) of the PC. Menu connect DMMS or click on „ “. When connection has been established, read the configuration DIGISYS by clicking on „Yes“. -
Page 25: Moisture / Temperture-Image
ACO AUTOMATION COMPONENTS Moisture / Temperature-Image Representation of the measured values and the back-up measured values entered „manually“ (channel 1..16). A manual / automatic changeover is possible. The manual value can be adjusted using the sliding regu- lators. The back-up measured values serve simula- tion of the measured values and are issued in place of the measured value by pressing the „Manual“... - Page 26 ACO AUTOMATION COMPONENTS PC-Software DMMS/DIGISYS Batching cross section: Allows weighted mean value calculation, as well as a curve changeover with fine batching. Coarse flow = fine flow No curve changeover Fine flow = 0 Discontinuation of the measurement with fine signal, only the coarse flow is measured Coarse flow >...
-
Page 27: Test Image
ACO AUTOMATION COMPONENTS Analogue output A measured value is transferred via an analogue output (0-10V or 4..20mA) to another system. Moisture-Output: analogue output no. for moisture measuring value On Error: output status if an error occurs ---- / 0V / 10V Temperature-Output: analogue output no. -
Page 28: Take Sample
ACO AUTOMATION COMPONENTS PC-Software DMMS/DIGISYS Take sample To obtain a material-specific balance, it is necessary to take samples from the flowing material as the digits are being recorded. The weight moistures of the samples are determined in the laboratory by drying or via „Karl Fischer Titration“. -
Page 29: Curves
4 points. This type is supported by all DMMS moisture sensors. The sample is only available for this curve type. - Page 30 ACO AUTOMATION COMPONENTS PC-Software DMMS/DIGISYS Curve, Type 2..10 Points Evaluation of the samples is resulted on graph paper or via a table calculation system (e.g.: MS EXCEL). 2 data points (straight) or several data points can then be entered. The point list of the curve can be adminis- trated via the "..."...
-
Page 31: System
ACO AUTOMATION COMPONENTS 8.11 System Settings Dig. Inputs (effectiveness): no effect Start mean value Start/Stop Fein coarse-fine curve changeover binary material changeover: M0^1 M0^2 M0..M7 = channel 1..8 M0^4 ^1..^4 = binary valency M0^8 If with 3: „M1^1“ and 4: „M1^2“ is entered... -
Page 32: Example - Install A Measuring Channel
ACO AUTOMATION COMPONENTS PC-Software DMMS/DIGISYS 8.12 Example - install a measuring channel Measuring problem Sand is batched onto a weigher belt via dual discharge. Both discharge points are completely open for coarse batching, in the subsequent fine batching phase the 2nd discharge point half closes and the 1st discharge posi- tion closes completely. - Page 33 ACO AUTOMATION COMPONENTS Calibration 14. Switch to " Take Sample" register card and click the "by Start" box to enter a tick symbol. The measured values of the next batching are re- corded. Simultaneously, take material samples from the discharge points and ascertain the moisture value in the laboratory.
-
Page 34: Error Reports
8.13 Error reports Incorrect entries All errors which are recognised during operation of the PC software DMMS/DIGISYS are displayed in a separate window in clear text and must be confirmed. DIGISYS error signalisation Errors which are recognised by the DIGI- SYS interchange and evaluation unit are displayed via a flashing code (error code). -
Page 35: Spare-Parts List
ACO AUTOMATION COMPONENTS Spare-parts list Spare-parts list Description: DMMS_Sensor Mounting flange with screw A4 Countersunk screw DIN7991 M5X 25 A2-70 Hexagonal nut EN24032 M 5 A2-70 Lock washer DIN 128 5 A2-70 Washer EN27089 5,3 A2-70 Bus connection socket Cable gland M16x1.5 4.5-10MM Lock M16x1.5...
