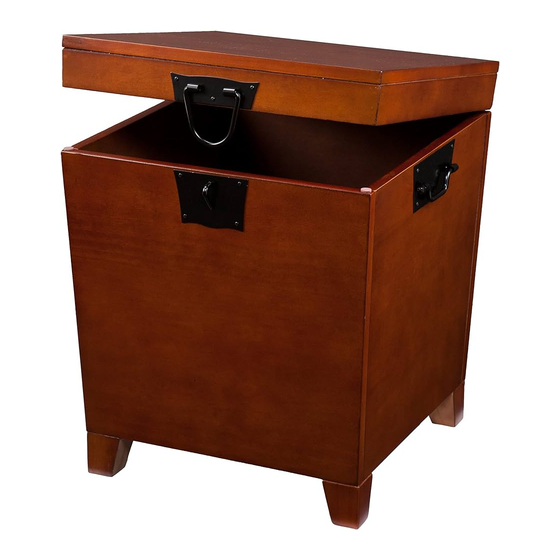

- Page 1 CK1225T Pyramid End Table For assistance with assembly contact: Southern Enterprises Inc. Assembly Instruction Customer Service 1-800-633-5096 service@seidal.com www.seidal.com...
- Page 2 CK1225T Pyramid End Table Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Screws shown actual size. Using a screw that is too long will cause damage.
- Page 3 8pcs 8pcs Small Cam Screw Small Cam Lock φ6.8 x 36mm φ15 x 12mm Flat Wrench 8pcs 8pcs 25pcs Dowel Bolts Screws φ8 x 30mm φ1/4” x 2-3/4” φ3.5 x 16mm Support Handle-A Handle-B 2pcs 10pcs Handle Sponge Cushion Care and Cleaning Instructions: For replacement parts or questions, please Before using , wipe with a clean , dry cloth.
- Page 4 CK1225T Pyramid End Table Assembly Instructions Step 1 Put all parts on a soft surface to prevent scratches, attach (H) handle-A to the top (1) by using screw (F) and phillip screwdriver to tighten it as shown Step 2 Attach (I) handle-B to (2)
- Page 5 Step 4 Attach (J) handle to (4) left side panel and (7) right side panel by using screw (F) and phillip screwdriver to tighten it as shown Step 5 Screw (A) small cam screw into (3) back panel as shown. Step 6 Insert (D) dowel into to (4) side panel as shown.
- Page 6 Step 7 Turn the trunk base up side down and attach (6) leg to the bottom of trunk by using screw (E) as shown Step 8 Attach (1) top to the trunk base by using screw phillip screwdriver to tighten it as shown.
- Page 7 Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/ Website/ Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Missing or damaged hardware and/ or parts will be replaced free of charge. We do not sell parts. Southern Enterprises Inc.
