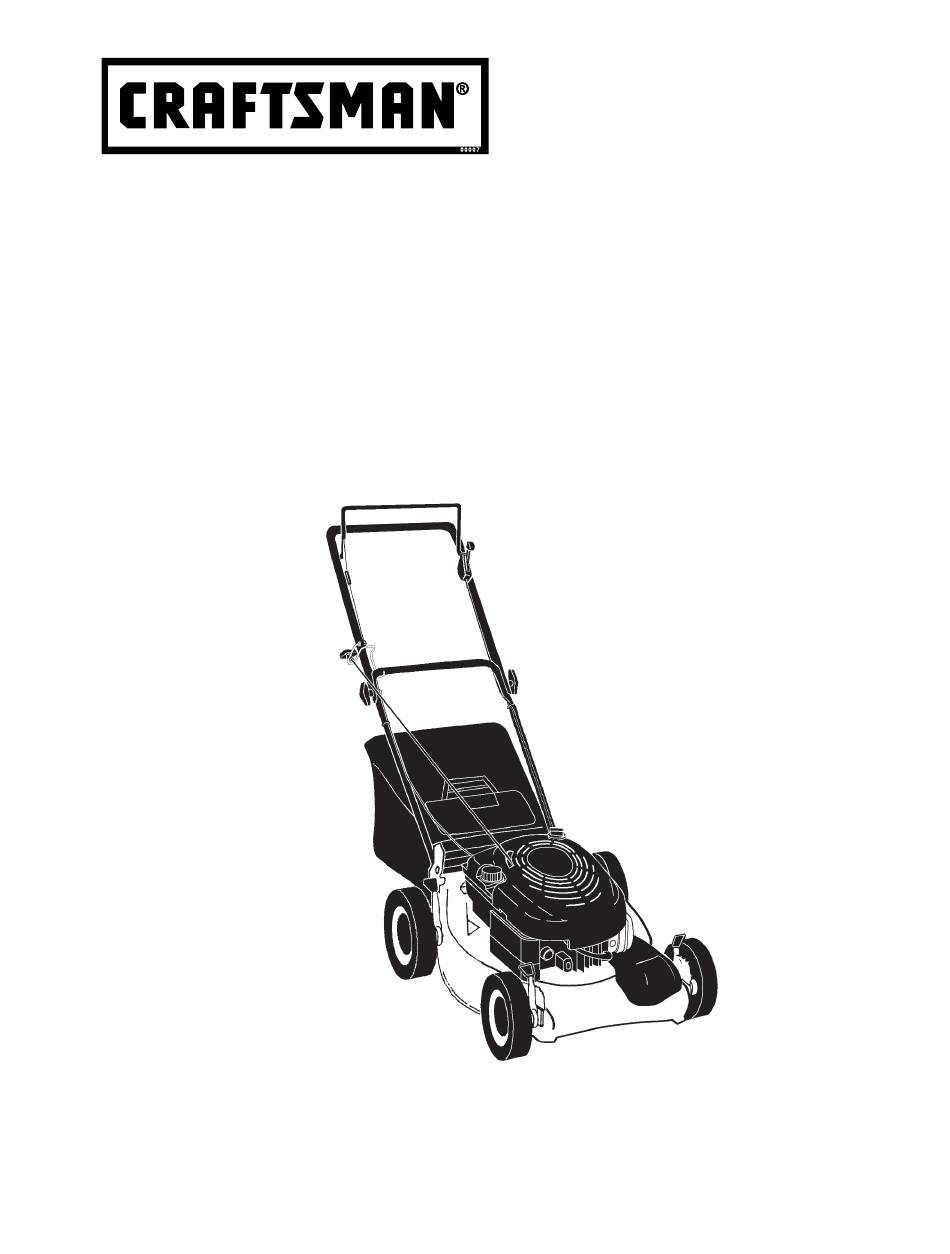

- Page 1 Owner’s Manual ROTARY LAWN MOWER 6.25 Horsepower Power-Propelled 21" Rear Discharge Model No. 944.363410 CAUTION: Read and follow all Safety Rules and In struc tions before operating this equipment Sears Canada, Inc., Toronto, Ontario M5B 2B8...
-
Page 2: Table Of Contents
WARRANTY LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER For Two years from date of purchase Sears Canada, Inc. will repair or replace at Sears option free of charge parts which are defective as a result of material or workmanship. - Page 3 • Do not pull mower backwards unless III. CHILDREN absolutely nec es sary. Always look down Tragic accidents can occur if the op er a tor is and behind before and while moving not alert to the presence of children. Children backwards.
-
Page 4: Product Specifications
PRODUCT SPECIFICATIONS Serial Number: Date of Purchase: Gasoline Capacity / Type: 1,5 Litres (Unleaded Regular) Oil Type (API-SF-SJ): SAE 30 (above 32°F); SAE 5W-30 (below 32°F) Oil Capacity: 0,58 Litres Spark Plug (Gap: 0,76 mm) Champion RJ19LM Blade Bolt Torque: 35-40 ft. -
Page 5: Operation
IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine. MEETS CPSC SAFETY REQUIREMENTS Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute and the U.S. Consumer Product Safety Com- mis sion. - Page 6 TO ADJUST CUTTING HEIGHT The operation of any lawn Raise wheels for low cut and lower wheels mower can result in foreign for high cut, adjust cutting height to suit objects thrown into the your requirements. Me di um position is eyes, which can result in best for most lawns.
- Page 7 ADD GASOLINE • Fill fuel tank to bottom of tank fi ller neck. Do not overfi ll. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. Do not mix oil with gasoline. Purchase fuel in quan ti ties that can be Grass used within 30 days to assure fuel fresh- catcher...
- Page 8 MOWING TIPS MULCHING MOWING TIPS • Under certain conditions, such as very IMPORTANT: For best performance, tall grass, it may be nec es sary to raise keep mower housing free of built-up the height of cut to reduce pushing grass and trash. See “CLEANING” in the effort and to keep from overloading the Maintenance section of this manual.
-
Page 9: Maintenance Schedule
MAINTENANCE GENERAL REC OM MEN DA TIONS LUBRICATION CHART The warranty on this lawn mower does not ➀ Wheel cover items that have been sub ject ed to adjuster (on operator abuse or negligence. To receive each wheel) full value from the warranty, operator must maintain unit as in struct ed in this manual. - Page 10 4. Put wheels back in place. NOTE: If after cleaning, the drive wheels Crank Blade do not turn freely, contact a Sears or other shaft bolt Hardened qualifi ed service center. washer...
- Page 11 GEAR CASE 6. Stop adding oil when you reach the FULL mark on the dipstick. Wait a • To keep your drive system working minute to allow oil to settle. properly, the gear case and area around 7. Continue adding small amounts of oil, the drive should be kept clean and free rechecking the dipstick until oil level of trash build-up.
-
Page 12: Service And Adjustments
MUFFLER • Clean the underside of your lawn mower by scraping to remove build-up of grass Inspect and replace corroded muffl er as it and trash. could create a fi re hazard and/or dam age. • Clean engine often to keep trash from SPARK PLUG accumulating. -
Page 13: Storage
Your carburetor is not adjustable. If your ROTATE engine does not operate properly due to suspected carburetor problems, take your lawn mower to a Sears or other qualifi ed Mowing Mowing service center for repair or ad just ment. position... -
Page 14: Troubleshooting
Allow the engine to cool before storage con tain er. Always follow the mix storing in any en clo sure. TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Service Center. PROBLEM CAUSE CORRECTION Does not start 1. - Page 15 1. Worn, bent or loose blade. 1. Replace blade. Tighten vibration blade bolt. 2. Bent engine crankshaft. 2. Contact a Sears or other qualifi ed service center. Starter rope 1. Engine fl ywheel brake is on 1. Depress control bar to hard to pull when control bar is released.
- Page 16 SERVICE NOTES...
-
Page 17: Repair Parts
REPAIR PARTS CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 944.363410 GEAR CASE ASSEMBLY - - PART NUMBER 180184 KEY PART DESCRIPTION 183497 Case, Lower 183498 Case, Upper 183499 Gear, 27 Teeth 183500 Lever, Clutch 183501 Spring, Return 183502 Shaft, Input 183503 Dog, Movable 183504... - Page 22 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 12Q802-0272-B1 1019 LABEL KIT...
- Page 23 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 12Q802-0272-B1 977 CARBURETOR GASKET SET 121 CARBURETOR OVERHAUL KIT...
- Page 24 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 12Q802-0272-B1 1059 1211 1210 1036 EMISSIONS LABEL...
- Page 25 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 12Q802-0272-B1 358 ENGINE GASKET SET...
- Page 26 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 12Q802-0272-B1 KEY PART KEY PART DESCRIPTION DESCRIPTION 697322 Cylinder Assembly 691449 Camshaft 399269 Kit-Bushing/Seal 498829 Short Block (Replacement 299819 • Seal-Oil (Magneto Side) Engine 125K02-0253) 493279 Sump-Engine 497465 Manifold-Intake 691160 Head-Cylinder 272199 • Gasket-Intake 692249 •...
- Page 27 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 12Q802-0272-B1 KEY PART KEY PART DESCRIPTION DESCRIPTION 690450 Shield-Cylinder 690345 Screw (Breather Passage Cover) 690345 Screw (Cylinder Shield) 691855 Spring-Friction 695161 Cup/Screen Assembly 690959 Pin-Locating 690662 Nut (Flywheel) 691830 Gear-Timing 802574 Armature-Magneto 691648 Screw (Brake) 691061 Screw (Armature Magneto)
- Page 28 186638 Rev. 3 06.20.03 BY Printed in U.S.A.
