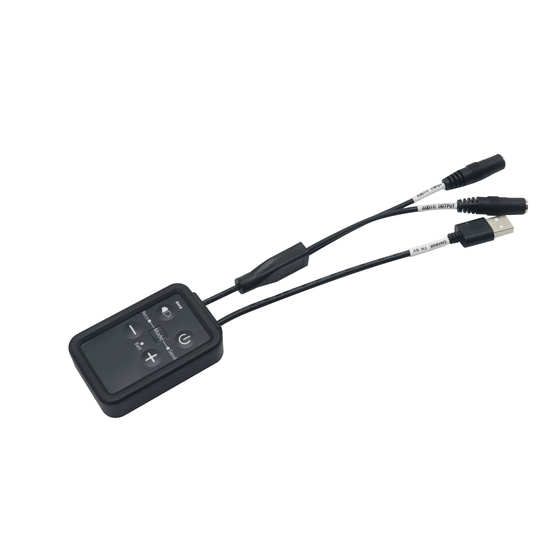

Music Sharing Kits Manual
Edge's music sharing kits is a 2.4GHz audio module that allows wireless audio broadcasting from
one audio system to any other audio system with an AUX input. Each unit can be programmed to
either send or receive audio as needed. One sender can be connected with four receivers within
70m range.
SPECIFICATIONS
• Waterproof IPX6 rating
• RF frequency: 2.4G
• Auxiliary stereo input/output
• Music sharing range: up to 70m (230ft)
• one sender works with four receivers
• Super low latency time 26ms
• Built-in lithium battery
• Automatically reconnect after initial paring
INSTRUCTIONS
Bond:
Only active when in RECV mode.
Use this button to select which Send
Unit you'relistening to. You can also
select and listen to any SKAA® transmit-
ter.
Volume Control:
In SEND mode, this
affects all bonded receivers' volumes.
In RECV mode,this affects only this
single receiver's volume.
7TH BUILDING, NO.59 CHUANG FU ROAD,XIAO GANG
INDUSTRIAL ZONE, NINGBO 315800, CHINA
Tel +86.574.873.88888
Fax +86.574.876.77777
Power On/0ff
Mode Selection:
to either SEND or RECEIVE.
Battery Indicator:
Charging,when the LED is out the
unit is fully charged
www.edgeholdings.com
WMSK-1
Assigns each unit
Solid Red when
Advertisement
Table of Contents
Related Manuals for Edge Wireless WMSK-1
Summary of Contents for Edge Wireless WMSK-1
- Page 1 Music Sharing Kits Manual WMSK-1 Edge's music sharing kits is a 2.4GHz audio module that allows wireless audio broadcasting from one audio system to any other audio system with an AUX input. Each unit can be programmed to either send or receive audio as needed. One sender can be connected with four receivers within 70m range.
- Page 2 Music Sharing Kits Manual WMSK-1 Send Mode Wiring Receiver Mode Wiring AUX Output for Amplifier AUX Output for Amplifier Connection (black) Connection (black) USB Wire for Charging USB Wire for Charging AUX Input for Source Unit Connection(red) CHARGING 1. Insert the USB charging cable into any standard USB powered port.
- Page 3 Music Sharing Kits Manual WMSK-1 Edge's music sharing kits are developed with SKAA® chips. Each SKAA® receiver has a Green List which remembers your favourite sender. A Green Indicator on your receiver means you are listening to a favourite, or hunting for one. Your receiver can also explore to find new senders—an Amber Indicator means you are exploring for senders which are not on your Green List.
