Bluetooth
®

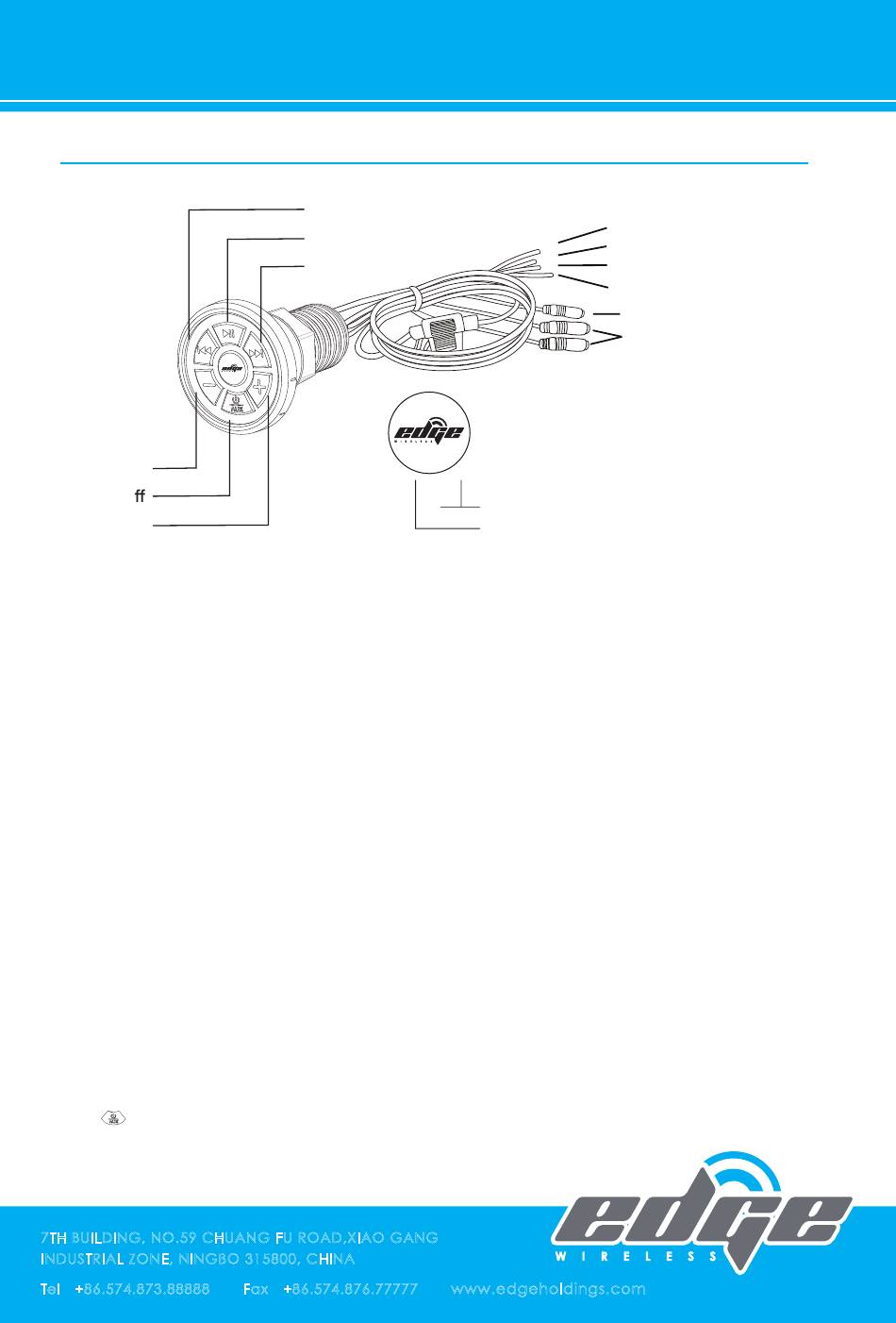

Design Features And Functions
VOL -
Power on/o
VOL +
Rear Flush Mount Instructions
Drilla 1 1/8" (30mm) diameter hole.
There are two grommets remove one and leave one in place.
Feed the wires and the threaded protion throuth the hole,place on the second grommet and screw the
nut back into place until tightly installed
The orientation of the unit can be adjusted in either of the mounting positions simply by loosening the unit
at the back and rotating the device.
Note
Never attempt to open, repair, or modify any part of the unit doing So will void all warranty.
You should open, remove the fuse, and leave the cap open on the fuse holder to feed it through the
hole.
Important
Check local laws regarding the use of a mobile phone and a handsfree kit while
driving. If you use the Bluetooth® unit while driving, ensure your attention and focus remains on your
responsibility of driving safely.
Turning Unit - ON / OFF
Connect Yellow Wire (B+) 12V Battery and Black Wire (B-) 12V Ground securely,
Press
button and hold it for over 3 seconds until you see the blue LED light goes out (OFF) or stays lit for
(ON).
7TH BUILDING, NO.59 CHUANG FU ROAD,XIAO GANG
INDUSTRIAL ZONE, NINGBO 315800, CHINA
Tel +86.574.873.88888
Audio Receiver
Previous
Play/Pause
Next
Fax +86.574.876.77777
Red -(B+)- 12V Ignition/Accessory Power
Black -(B-) 12V Ground
Blue/White Stripe - Amplifier Remote Turn on
Yellow - (B+) - 12V Battery/Constant/Fused Power
Blue LED Blinking - Pairing Mode
Blue LED Solid - Paired
www.edgeholdings.com
BTR-12
AUX Audio Input - Red 3.5mm Connector
RCA Audio Output(to Amp)
Advertisement
Table of Contents
Related Manuals for Edge Wireless BTR-12
Summary of Contents for Edge Wireless BTR-12
- Page 1 Bluetooth Audio Receiver ® BTR-12 Design Features And Functions Previous Red -(B+)- 12V Ignition/Accessory Power Play/Pause Black -(B-) 12V Ground Next Blue/White Stripe - Amplifier Remote Turn on Yellow - (B+) - 12V Battery/Constant/Fused Power AUX Audio Input - Red 3.5mm Connector...
- Page 2 On phone select (BTR-12) to pair device. Once a device is paired each time this device is seen by the BTR-12 it will automatically reconnect to the device. If no device is present the BTR-12 automatically goes intopairing mode and will present itself as discoverable for the next device present.
