Summary of Contents for DatoHome L-B400

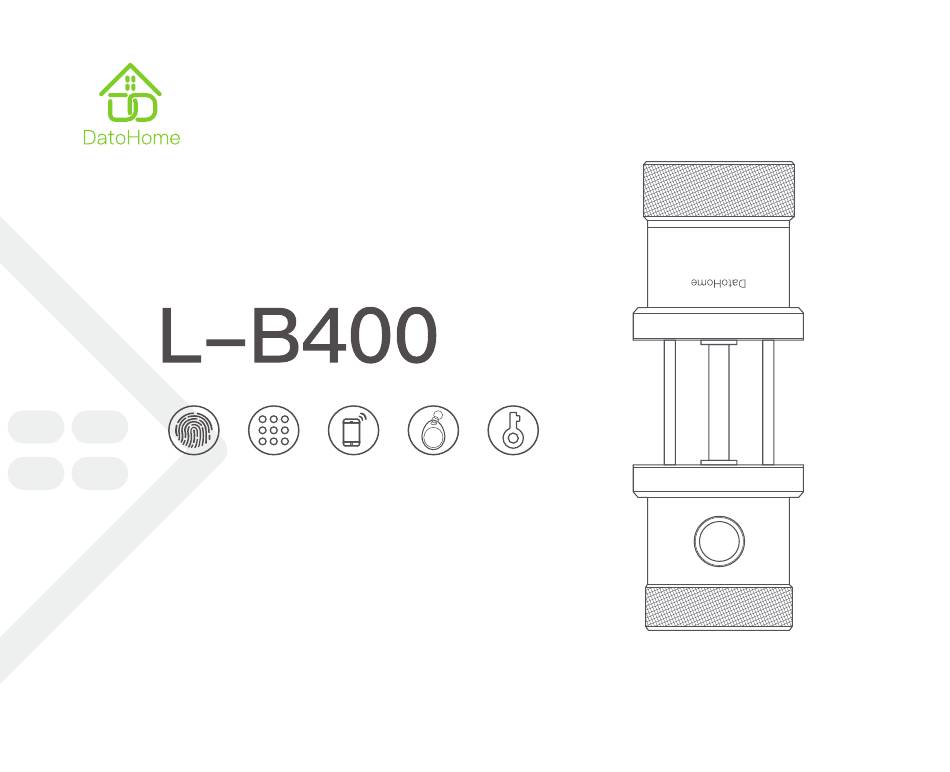

- Page 1 (V3.0) Fingerprint Password App Unlock RF tag Unlock Unlock...
- Page 2 DatoHome bids you welcome to a world of smart home devices, smart locks, and smart surveillance. We at DatoHome strive to explore and develop the the smart home industry for the good of all. We combine bridge cutting-edge technologies to develop products fit and ready for the market.
- Page 3 ① Fortified Lock Structure Well engineered and built. A combination of billet metal and hand-made parts. ② Anti-Peeping Password Technology Your 4-6 digit passwords are shaded with a 12-digit sequence to ruse any unauthorized peeping. ③ Semicondunctor Fingerprint Sensing The fingerprint scanner， with it's own semiconductor， is always ready for high-precision and high-speed recognition.
- Page 4 (1) Checking the delivery set Spindle (Square Bar) Exterior Handle Interior Handle Connecting Rod RFID Tag Screws for Strike and Latch If you need help with the cardboard drilling template， please visit out support page. Visit: https://www.datoaihome.com/pages/technical-support...
- Page 5 (2) Check the door " " (a) Door thickness range: (35mm) (65mm) Lock mounting hole " " (35mm) (65mm) " " (b) Lock mounting hole diameter range: (45mm) (55mm) (Large holes in this range will make the installation process easier) (c) Distance from the center of the lock mounting hole to the edge of the door (latch hole side): "...
- Page 6 Route the wire through the spindle Door Thickness Square Bar (spindle) Connecting screws 35mm~55mm 73mm 30mm 50mm~65mm 88mm 40mm Internal Metal sheet Install the latch into the door， select proper spindle and connecting rod Locating hole according to door thickness. Make the locating hole of spindle align with the internal metal sheet，...
- Page 7 Disassemble rear handle to 3 parts， as shown in Insert exterior handle into latch. (When inserting the Figure A， Figure B and Figure C. interior handle into the latch， try to loosen the ⑤ ⑥ connecting screws slightly to ease insertion.) ⑦...
- Page 8 Install Part C (battery cover)， and secure it with screws. DatoHome DatoHome Youtube Channel Technical Support Please watch our easy step by step installation video Note: make sure the "secure lock button﹄ before attempting to install your L-B400 V3.0 Smart Lock. facing upwards as on figure.
- Page 9 2. Enter default passcode "1233456 + #"， your lock should be unlock by turn the exterior handle. NOTE: If the DatoHome app has been installed and the lock has been added, the admin password may have changed. Open the app to check the admin password.
- Page 10 (1) Scan the QR code to the right， you can use Android and IOS to download the APP. (2) Android version software can be downloaded in the Google Play store. Search "DatoHome" (3) iOS version of the software can be downloaded in the iPhone App Store. Search "DatoHome" 2 Adding new Door Lock by app.
- Page 11 ④ Turn on Bluetooth ⑤ Wake up the touch screen ⑥ Select the searched lock Need Help? Contact Customer Support Visit: https://www.datoaihome.com/pages/technical-support Service line: (929)336-6777 (US) or (1) 44 2602 2456 (MEX) Email: service@datoiot.com...
- Page 12 When door lock has been added successfully， please click the [settings] button in the upper right corner to check your new administrator password. If you can not add a new door lock in app， please reset to factory default. Please refer to page 17: Factory Reset / Delete Admin.
- Page 13 3 Fingerprint management ① Note : please click ﹃+﹄ symbol ② Insert fingerprint account ③ Scan finger on lock on the upper right corner to name and duration (Requires 4 scans) add a fingerprint After the administrator successfully adds the lock， the administrator will have the highest management rights of the door lock.
- Page 14 Admins can send Ekeys to emails. The receiver needs to download the DatoHome app and log in to use the Ekey. Administrators can manage all users， delete Limited time user or Permanent user and view unlock records.
- Page 15 5 Password management ① Note : please click"+" on the ② Choose type. Set name ③ Administrator can upper right corner to add a and password manage passwords new password Password management refers to the digital password combination of the door lock. You can send passwords to others to grant access.
- Page 16 6 Open Passage Mode The Open Passage mode lets anyone open the door without any need for passcode etc., and is great in case of temporary large gatherings and many guests. ① To set up Open Passage ② Enable Open Passage ③...
- Page 17 7 Add Bluetooth Administrator Make sure a door lock administrator is not already added. When the backlight is off， the user touches the numeric keypad to wake up the door lock. After hearing the voice prompt "Please add Bluetooth administra- tor"，...
- Page 18 NOTE: We strongly recommend that you complete all these operations on the app， which is the easiest way to get started. (1) Add unlock password / IC card / fingerprint (These operations must be performed after the initial administrator password has been modified， please do this by using app or refer section (6) of this chapter) After the user inputs *85#，...
- Page 19 (7) Open Passage Mode When the passage mode is activated， the user can directly turn the handle and unlock the door without fingerprint， passcode， IC card or Bluetooth. After successfully unlocking with fingerprint， passcode， IC card or Bluetooth， immediately input "123#" within 5 seconds，...
- Page 20 ② Make sure the battery cover is in place. ③ Are the two handles in right direction? Front handle:The fingerprint sensor should be up； Rear handle:The DatoHome should face up. ④ The connecting screws are not tensed/balanced enough. (Please refer to the installation instructions.
- Page 21 120 Max 150 Max 200 Max ， -25~70℃ ， ， ，...
