- Page 2 Product Description ................................1 Preparing for Installation ..............................2 Door Lock Installation ..............................4 APP Operation Guide ................................ 8 Door Lock Configuration from Physical Lock Panel ....................15 Trouble Shooting ................................18 Specifications ..................................20 Before installing， please scan the QR codes below to watch our easy step-by-step installation video. If you have questions regarding the installation process please contact us by mail service@datoiot.com or by phone (929)336-6777.

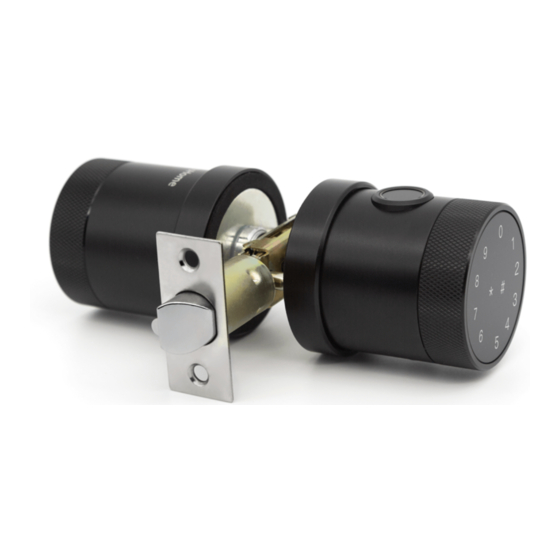

- Page 3 ① Patented Wire-free Structure The wire-free design prevents internal socket disconnects and offers a more robust lock structure. ② Anti-Peeping Password Technology Your 4-6 digit passwords are shaded with a 12-digit sequence to ruse any unauthorized peeping. ③ Semicondunctor Fingerprint Sensing The fingerprint scanner, with it's own semiconductor, is always ready for high-precision and high-speed recognition.
- Page 4 1 Checking the delivery set Spindle (Squre Bar) Hex Key RFID Tag Package comes with 2 latches " " " (60mm) (70mm) (60mm) If you need help with the cardboard drilling template, please visit out support page. Visit: https://www.datoaihome.com/pages/technical-support...
- Page 5 (2) Check the door " " (a) Door thickness range: (35mm) (65mm) Lock mounting hole " " (35mm) (65mm) " " (b) Lock mounting hole diameter range: (45mm) (55mm) (Large holes in this range will make the installation process easier) "...
- Page 6 Step : Latch Length Step 2 : Installing the latch Choose the latch length according to door width. Install the latch into the door with screws. " Use only for (70mm) " (60mm) " Use only for (60mm) Step 3 : Insulating Sleeves Step 4 : Sleeve Length Insulating sleeves must be installed for lock to work.
- Page 7 Step 5 The Front Handle Step 6 Spindle & Screws Turn the Triangle on the Front Handle to Install the recommended square bar and connecting position "S " screws in the handle according to your door thickness. Put insulating sleeves upon the connecting screws as shown.
- Page 8 Step 9 : The rear handle Step 10 : Close the gap Press rear handle center button to remove battery cover. Screw the hex nuts inside rear handle with the hex key Connect rear handle with front handle already installed to fasten the connecting screws.
- Page 9 NOTE: You can only set up one administrator for each lock. 4. Close the door and check if the latch properly inserts into the strike plate on the door frame. Congratulations! You installed the L-B400 Smart Lock. What now..? Need Help? Contact Customer Support Visit: https://www.datoaihome.com/pages/technical-support...
- Page 10 (1) Scan the QR code to the right, you can use Android and IOS to download the APP. (2) Android version software can be downloaded in the Google Play store. Search "DatoHome" (3) iOS version of the software can be downloaded in the iPhone App Store. Search "DatoHome" 2 Adding new Door Lock by app.
- Page 11 ④ Turn on Bluetooth ⑤ Wake up the touch screen ⑥ Select the searched lock Need Help? Contact Customer Support Visit: https://www.datoaihome.com/pages/technical-support Service line : (929)336-6777 Email: service@datoiot.com...
- Page 12 When door lock has been added successfully, please click the [settings] button in the upper right corner to check your new administrator password. If you can not add a new door lock in app, please reset to factory default. Please refer to Door Lock Settings (from physical lock panel), Article 10: deleting the Administrator (Restore Factory Default).
- Page 13 3 Fingerprint management Note : please click “+” symbol Insert fingerprint account name Scan finger on lock on the upper right corner to add and duration (Requires 4 scans) a fingerprint Within fingerprint you can manager. After the administrator successfully adds the lock, the administrator will have the highest management rights of the door lock.
- Page 14 4 User management Please click "+" in the right Choose access schedule for Admin can see and mange all upper corner to add new user these users user Administrators can manage all user, delete Limited time user or Permanent user and view unlock records.
- Page 15 5 Password management Note : please click"+" on the Choose type. Set name and Administrator can manage upper right corner to add a new password passwords password Password management refers to the digital password combination of the door lock. You can send passwords to others to grant access.
- Page 16 6 Add Bluetooth Administrator Make sure the door lock administrator is not added. When the backlight is off, the user touches the numeric keypad to wake up the door lock. After hearing the voice prompt "Please add Bluetooth administra- tor", open the mobile phone bluetooth and begin the door lock adding process on the app to obtain Bluetooth administrator privileges.
- Page 17 NOTE: We strongly recommend that you complete all these operations on the app, which is the easiest way to get started. (1) Add unlock password / IC card / fingerprint (These operations must be performed after the initial administrator password has been modified, please do this by using app or refer section (6) of this chapter) After the user inputs #85#, the lock prompts "Please input administrator's passcode"...
- Page 18 (4) Delete All Passcodes The user inputs "# 71 # Administrator Passcode #" to delete all the added passcodes, including the passcode generated by the App (the administrator passcode will not be deleted). In this process, the user inputs "#71#", and the lock prompts "Please input administrator's passcode" by voice, after that, the user inputs the administrator passcode and "#", when the verification is successful, the lock prompts "Operation successful"...
- Page 19 ( 8) Turn Off Open Passage Mode The passage mode is turned off by inputting fingerprint, passcode, IC card or BIuetooth on the app. ( 9 ) Deleting the Administrator Deletion by Handle and Secure-Lock Button While pushing the rear handle towards the door, turn front handle left and push secure lock button for 3 seconds. Lock prompts "Please input initialization passcode".
- Page 20 Q: After the door lock is installed, there is no response or abnormal behaviour. A: Please check as follows: ① Check the battery installaton direction and make sure that the battery has suffcient power. ② Make sure the battery cover is in place. ③...
- Page 21 Q: The lock body heats up and the battery loses power quickly. A: The problem is mainly caused by improper installation. For security reasons, please contact us for special support or ask a professional to check. Q: The fingerprint recognition success rate is different from what the manual says. A: When entering the fingerprint, please try to move the position of the fingertip slightly every time you enter the fingerprint, so that you can enter a larger fingerprint area.
- Page 22 PARAMETER STAT Living fingerprint recognition, 0.5 second speed recognition Fingerprint, Password, IC Card, Bluetooth Single-Latch,and suitable for the lock body which's backset is bigger than 45mm...
