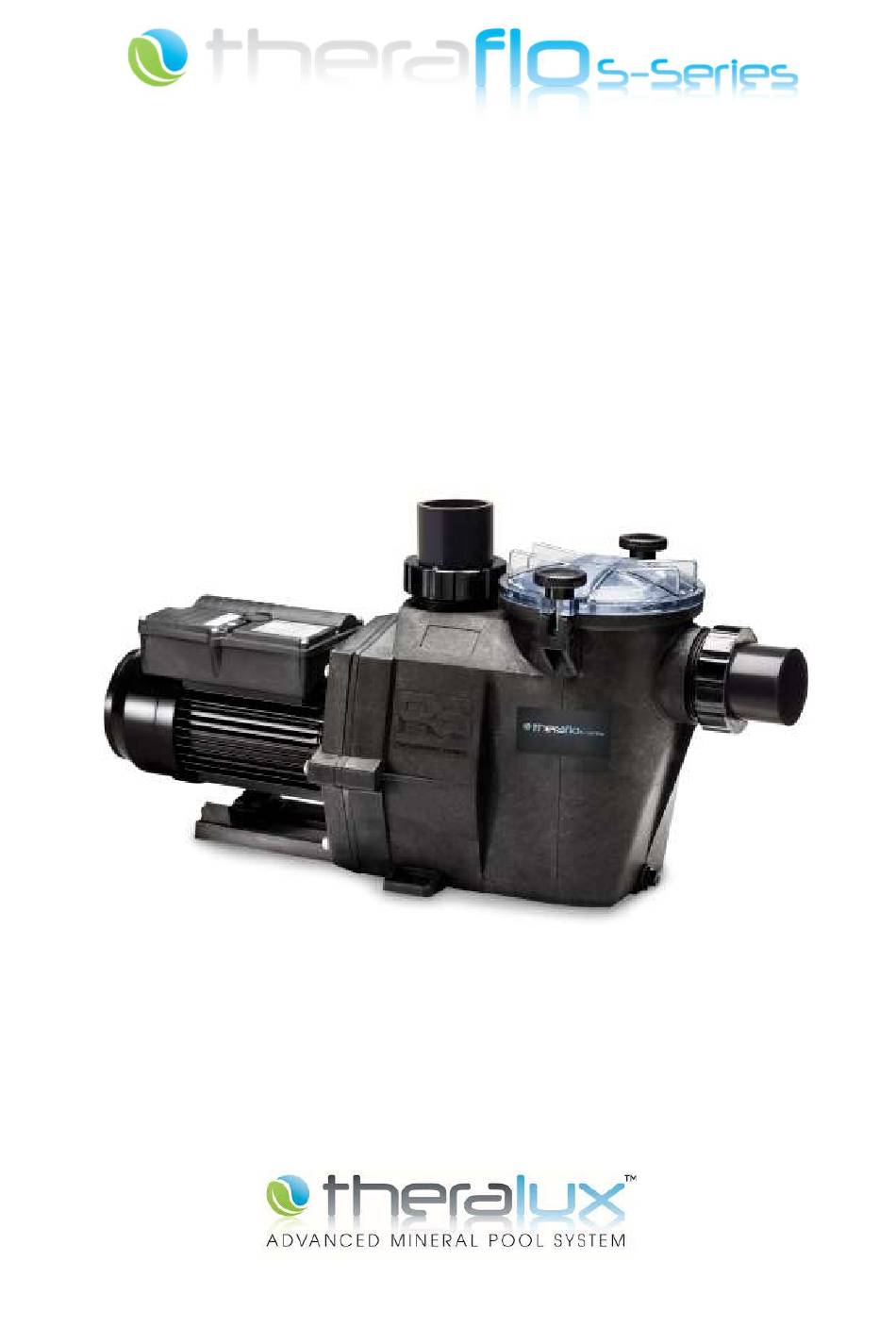

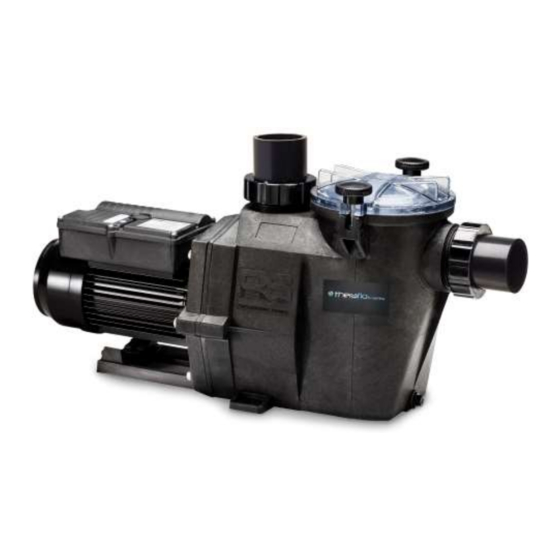

- Page 1 SELF-PRIMING SWIMMING POOL PUMP INSTALLATION OPERATING INSTRUCTION MANUAL Your Theralux self-priming centrifugal pump has been quality-built engineered to give you many years of efficient, dependable, corrosion free service. advanced design reduces operation and maintenance simple, common-sense procedures. IMPORTANT *This appliance is not intended for use by young children unless...
- Page 2 GENERAL TIPS ON PUMP INSTALLATION Locate the pump as close to pool as practical and run suction line as direct as possible. Secure pump to base with screws or bolts to reduce vibration and pipe stress. Never overtighten pipe connections - use only pipe sealants formulated specifically for plastics, i.e., Teflon tape, Permatex No.
- Page 3 • Only qualified personnel should attempt to replace the shaft seal. Contact your local Authorised Theralux Service Centre if have any questions. • Exercise extreme care in handling both the rotating stationary sections the two-part replacement seal.
-
Page 4: Maintenance
SEAL, IMPELLER AND DIFFUSER INSTALLATION Clean and lightly lubricate the motor shaft seal recess in the seal plate (item with a dilute solution of non-granulated liquid type soap. Gently wipe the polished face of the ceramic seal with a soft, lint free cotton cloth. - Page 5 THERAFLO S-SERIES REPLACEMENT PARTS REF NO. PART DESCRIPTION THERA F4301 Pump Housing/Strainer - 50mm, w/Drain Plugs. threaded style THERAF4302 Basket THERAF4303 Strainer Cover O-Ring THERAF4304 Strainer Cover, Hand- Knob Style, Clear THERA F4305 Housing Gasket THERAF4306A Diffuser (suit Theraflo .75hp, Theraflo 1hp) THERAF4306B Diffuser (suit Theraflo 1.5hp.
- Page 6 Our warranty covers manufacturing faults, not wear and tear. We will, at our discretion, repair or replace the faulty material or part. It is your responsibility to notify Theralux at the earliest possible time of any issues found within the warranty period.
- Page 7 (240v Models only). E. LOW FLOW 3. Refer to Theralux Authorised Generally, check for: Service Agent or qualified technician. 1. Clogged or restricted strainer or B. MOTOR CUTS OUT suction line.
