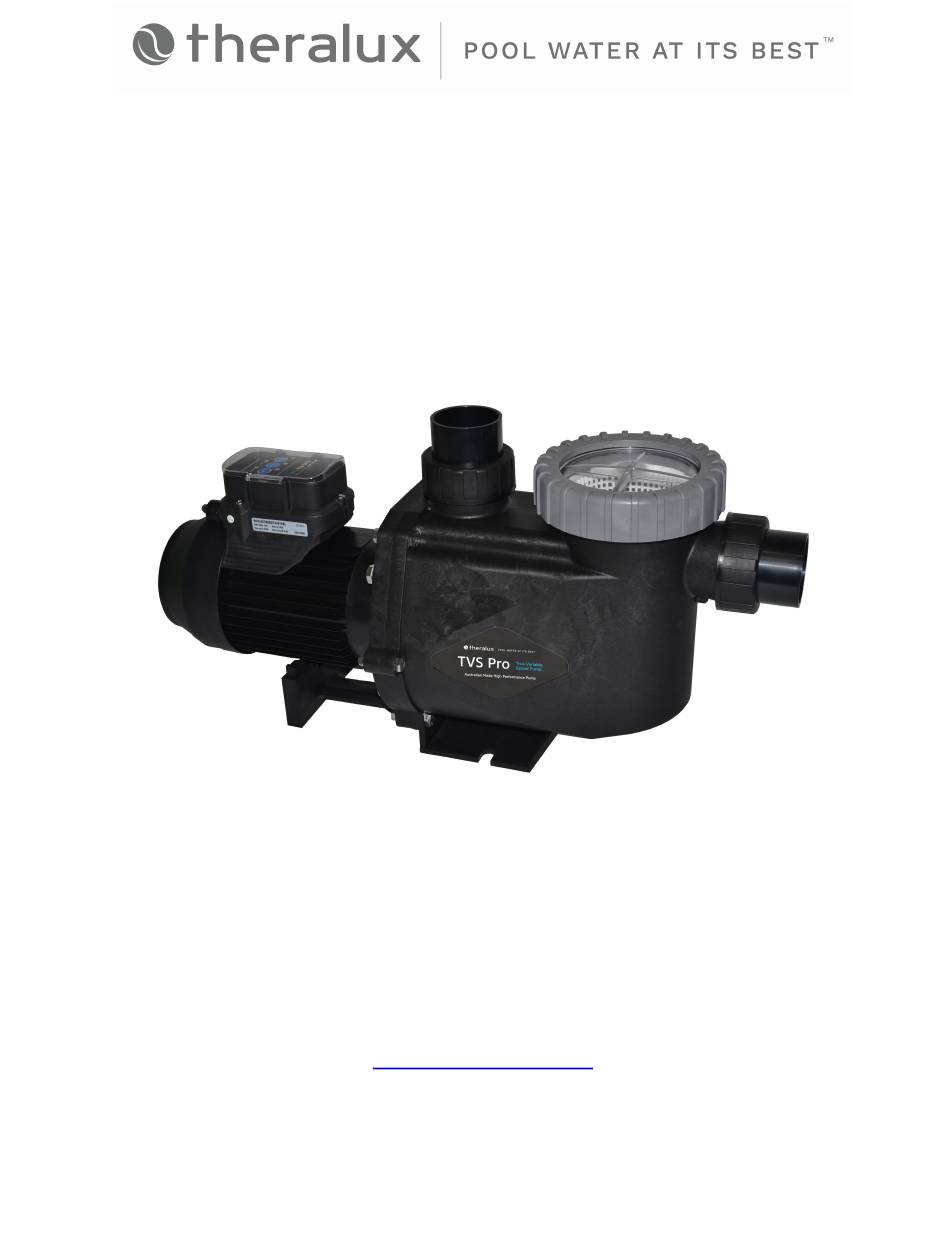

- Page 1 TVS PRO VARIABLE 3 SPEED POOL & SPA PUMP INSTALLATION AND OPERATION MANUAL Theralux 12 Gatwood Close Padstow, NSW 2211 Ph: 1300 131 788 www.theralux.com.au Page 1 of 15...
- Page 2 Read these instructions before operating the pool and spa pump. Please pass these instructions on to the owner of this equipment. MODEL: TVS Pro 1.25hp and 1.75hp DANGER - HAZARDOUS SUCTION Do not block water entry into filtration system with any part of your body as the suction can trap hair or body parts, causing severe injury or death.
- Page 3 THERALUX recommends that all installations are fitted with earth leakage or residual current protection devices. Ensure that an electrical isolation switch is located with easy access so that the pump can be switched off in an emergency. Page 3 of 15...
-
Page 4: Features And Benefits
THERALUX’S advanced pump technology provides reliable and efficient performance that lasts. THERALUX pool and spa pump are designed with high flow and the head pressures are ideally suited for the modern pool or spa with extensive equipment. -
Page 5: Weather Protection
Power Connection THERALUX pool and spa pumps are suitable for connection to a nominal 240-volt 50Hz power supply. The motor is equipped with a flex and 3-pin plug. If a power outlet is not available within 2 meters of the pump, a 3-pin power point in a safe, dry place may need to be provided by an electrician. -
Page 6: Pipe Connection
Always install pump for maintenance and service accessibility. USAGE WARNING The TVS Pro is manufactured with technological advances including PCB’s and microchips. It is necessary to turn power off completely for 10 seconds prior to turning pump back on again ... -
Page 7: Operation
If water flow through the pump is continuously tedious to obtain at start-up after cleaning the lint basket, then an examination of the system to establish a reason and correct the cause. (ie. Check valve, air leaks, faulty seal/s, crack lid. TVS Pro variable speed control Page 7 of 15... - Page 8 Factory Setting Speeds / Star Ratings 1.25hp TVS PRO Low @ 1600 Medium @ 2400 High @ 2850 1.75hp TVS PRO Low @ 1450 Medium @ 2400 High @ 2850 Adjustable Speed Mode Page 8 of 15...
- Page 9 PLEASE NOTE The TVS Pro will always run at “high” speed for 3 minutes upon start up or a filter cycle. This assists with priming of the pump and pipe work. After the initial 3 minutes the TVS Pro will revert back to the previous selected speed it was set at before it was turned off.
- Page 10 WHEN USING WITH THERALUX / POOL+ MANAGER CONTROLLER WITH RS485 COMMUNICATION Press and hold OFF button for 10secs Screen will display P 3 -- Press SET Screen will display 2850 -- Press SET Screen will display -- Mod Off...
-
Page 11: Water Quality
THERALUX’S RECOMMENDATION During day-to-day operation we recommend to run the TVS PRO on “eco” for 8-10 hours. This will achieve the lowest noise and lowest operating costs whilst maintaining filtration effectiveness. In some cases (larger pools, warmer climates and increase bather loads you may have to increase the speed setting or operating duration. -
Page 12: Troubleshooting
Motor is burnt out - burning smell is evident. Replacement is required. If you are unable to resolve any installation or operation difficulties with your THERALUX pool and spa pump, contact the supplier from whom the pump was purchased or you’re nearest Authorized THERALUX pool and spa pump Pool Equipment Service Centre. -
Page 13: Fault Codes
Barrel unions need to be hand tightened. No sealant, glues or silicones are required. When making any enquiries about your THERALUX pool and spa pump be certain to quote the model number from the nameplate located on motor. - Page 14 Our warranty covers manufacturing faults, not wear and tear. We will, at our discretion, repair or replace the faulty material or part. It is your responsibility to notify Theralux at the earliest possible time of any issues found within the warranty period.
- Page 15 This literature is not a complete guide to product usage. Further information is available from your THERALUX dealer, THERALUX Customer Service Centre and from the relevant product Installation and Operating Instructions. This data sheet must be read in conjunction with the relevant product Installation and Operating ...
