277CAN TROUBLE SOUNDER
Installation Sheet
Description:
The Model 277CAN Trouble Sounder is an audible trouble alert.
Compatibility:
XR150/XR550 Canadian Series panels
Processor Fail Alert:
The 277CAN Trouble Sounder monitors the keypad bus to sound an alert whenever the keypad bus is faulted. The
sounder also sounds a trouble alert whenever the panel processor is reset using the RESET header or the processor
stops functioning.
Installation:
Slide the connector on the sounder onto the panel 893A or 277 connector.
Ground yourself before handling the panel: Touch any grounded metal, such as the enclosure, to discharge
static before touching the panel.
Remove all power from the panel: Remove all AC and Battery power from the panel before installing or
connecting any modules, cards, or wires to the panel.

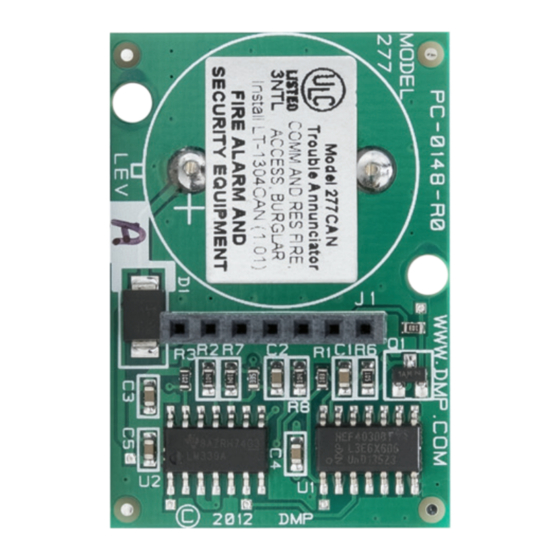

Figure 1: 277CAN Trouble Sounder
Front and Rear Views
Specifications:
Operating Voltage
Current Draw
Certifications:
ULC - S545
Household Fire
ULC - S559
Equipment for Fire Receiving Centres and Systems
12 VDC from the panel
16 mA
893A OR
277

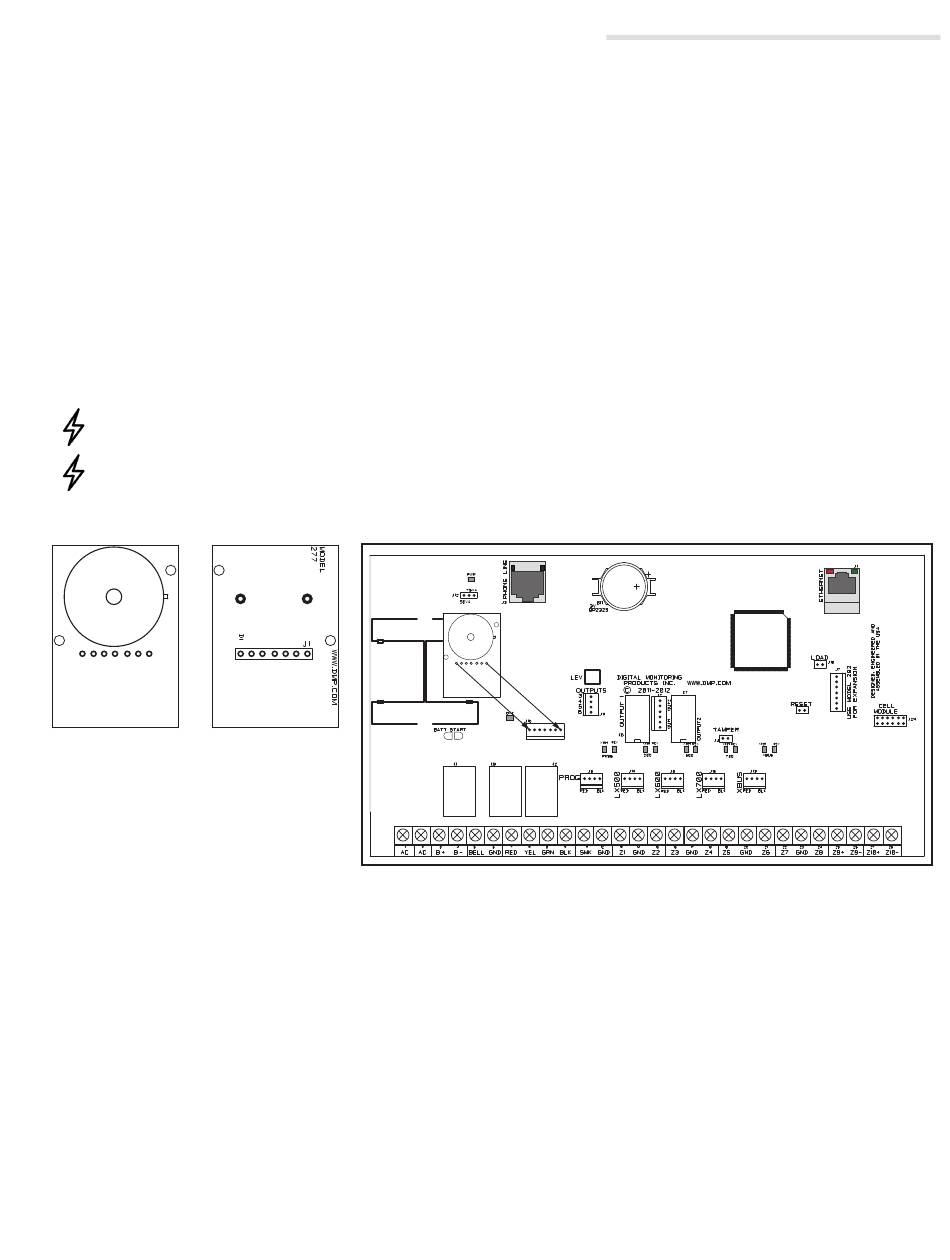

Figure 2: 277CAN Trouble Sounder to Panel Connections
