DMP Electronics 1119 Installation Manual

1119 WIRELESS DOOR SOUNDER
Installation Guide

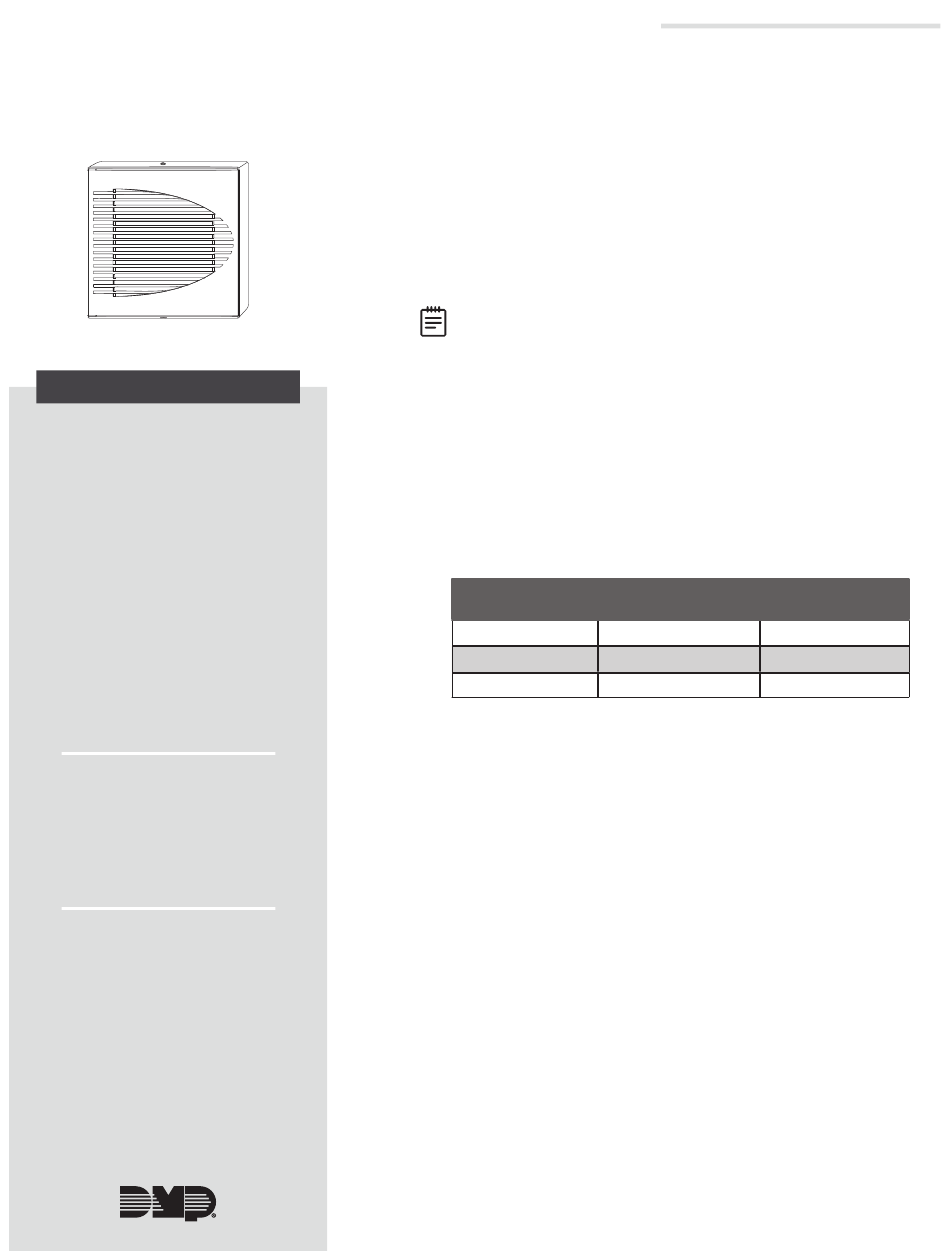

Figure 1: 1119 Wireless Sounder
DESCRIPTION
The Model 1119 Wireless Door
Sounder is a single‑zone
transmitter equipped with a
battery‑powered sounder that
provides 100‑110 decibels of
annunciation.
The 1119 provides a cover tamper,
sounder cutoff, survey LED, and two
batteries. The transmitter's zone
input can be connected to a
standard door contact, typically
attached to an emergency exit
door for local annunciation during
the day and burglary alarm
annunciation at night. The sounder
always automatically turns on when
the door opens and can be silenced
depending on system configuration.
Compatibility
• All DMP 1100 Series Wireless
Receivers
• All DMP Burglary Panels
What is Included?
• One 1119 Wireless Door Sounder
• Two 3.0 V Lithium CR123A
batteries
• Hardware pack with a 470k EOL
resistor and serial number labels
1
PROGRAM THE PANEL
To allow the 1119 sounder to be turned on or silenced by the panel,
the transmitter serial number must be programmed as an output
in OUTPUT INFORMATION and assigned to the ALARM ACTION
output in ZONE INFORMATION. Refer to Silencing the Sounder for
more information.
Note: When programming both the output and zone, ensure
the Supervision Time is set to the same value.
Program the Output
In OUTPUT INFO (XR150/XR550) or OUTPUT SETUP
1.
(XT30/XT50, XTLplus, and XTLtouch), enter the output
number. Refer to Table 1 for slow and fast response outputs.
To extend battery life, DMP recommends programming
the transmitter as a slow response output.
2. Enter the OUTPUT NAME.
Enter the eight‑digit SERIAL# and press CMD.
3.
4. Enter the SUPRVSN TIME (Supervision Time) and press
CMD.
PANEL
XT30/XT50
XTLplus/XTLtouch
XR150/XR550
Program the Zone
1. In ZONE INFORMATION, enter the wireless zone number.
2. At *UNUSED*, enter the zone name.
3. If the sounder should be the only source of annunciation
during a disarmed state, select NT (Night) as the ZONE
TYPE. If the system requires local annunciation at the
keypad when the panel is disarmed, select DY (Day) as the
ZONE TYPE.
4. Select the AREA.
5. At the NEXT ZONE prompt, select NO.
6. Select YES when WIRELESS? displays.
Enter the eight‑digit SERIAL# and press CMD.
7.
Enter the SUPRVSN TIME and press CMD.
8.
9. To allow the panel to control the sounder, select NO at the
NEXT ZONE prompt to access ALARM ACTION.
10. In OUTPUT NO, enter the sounder output number.
11. Press the back arrow. Press CMD until STOP displays,
then press any top row select key or area to save and exit
programming.
SLOW RESPONSE
OUTPUTS (15 SEC)
31‑34
51‑54
450‑474
Table 1: Wireless Output Numbers
FAST RESPONSE
OUTPUTS (1 SEC)
41‑44
61‑64
480‑499
