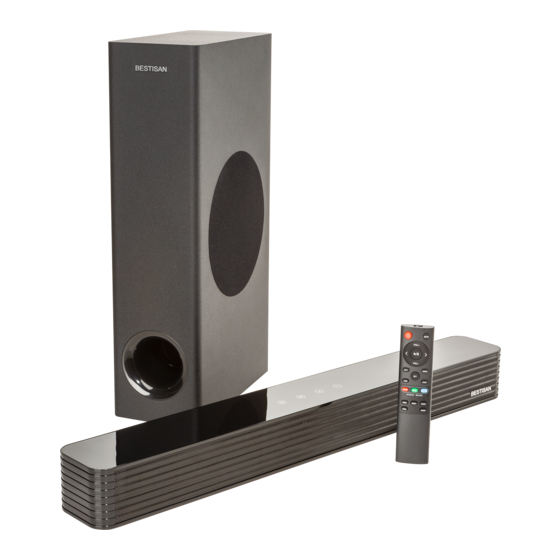

- Page 1 BESTISAN Best Artisan & Better Than Most Let’s get started. MODEL: SG08...
-
Page 3: Table Of Contents
Table of Contents What’s in the Box......................3 Controls and Connections..................4 Ready for the step by step?..................6 Connecting the Subwoofer..................9 “PCM” Settings on TV....................10 Know Your Remote....................11 Bluetooth Pairing......................12 Additional Bluetooth Information.................13 Indicator Light Explanations...................14 Advanced Connections.....................15 Installing the Wall Mount..................16 Troubleshooting......................17... -
Page 4: What's In The Box
What’s in the Box Sound Bar and Subwoofer Remote control User’s guide Insert 2pc of AAA batteries before use Digital Optical cable Stereo 3.5mm to Power Adapter Wall mount brackets 3.5mm audio cable Mount screws Wall mount template... -
Page 5: Controls And Connections
Controls and Connections Back of Sound Bar AUX IN OPTICAL COAX IN SUB OUT Top Side Panel of the Soundbar... - Page 6 [DC] Power Port [USB] USB In [AUX IN] Analog Audio In (Stereo 3.5mm) [OPTICAL] Digital Optical In [COAX IN] Digital Coaxial In [SUB OUT] Subwoofer Out Turn the power on or press and hold to power o . Select the source input mode; Press and hold to reset treble and bass to factory settings. Press to adjust volume up and down, the LED indicator flashes until the volume to the MAX or MIN.
-
Page 7: Ready For The Step By Step
Ready for the step by step? Back of Sound Bar AUX IN OPTICAL COAX IN SUB OUT... - Page 8 Back of Sound Bar AUX IN OPTICAL COAX IN SUB OUT...
- Page 9 SOUNDBAR...
-
Page 10: Connecting The Subwoofer
Connecting the Subwoofer Connect the subwoofer cable into Sound Bar SUB OUT port as shown: Back of Subwoofer Back of Sound Bar AUX IN OPTICAL COAX IN SUB OUT SUB OUT cable... -
Page 11: Pcm" Settings On Tv
Setting “PCM” on Your TV When all cables are connected properly, and LED indicator lights properly(Optical or HDMI connection), if there is no sound from tv or Soundbar, please setting your tv as below: 1. Press "Menu" on the tv’s remote control. 2. -
Page 12: Know Your Remote
Know Your Remote Power the remote by inserting 2 pcs of AAA batteries Power Button Mute / Unmute Volume up Previous track Next track Volume down Coaxial mode Optical mode Bluetooth mode (press and hold to disconnect BT) USB mode AUX mode Recommended audio mode-MOIVE Recommended audio mode-DIALOG... -
Page 13: Bluetooth Pairing
1. Press the Bluetooth button on the remote, when the Sound Bar is in Bluetooth Pairing mode, the LED indicator will flash blue quickly. 2. Now your can search for the Sound Bar(Bestisan SG08) in your Bluetooth device, connect it. Once your device is paired, the LED indicator will flash blue slowly. -
Page 14: Additional Bluetooth Information
Additional Bluetooth Information 1. If you hear any break-up while streaming music from your device, move closer to your Sound Bar. 2. Bluetooth signal has a range of up to 30 feet if there are no solid obstructions between your Sound Bar and source device. -
Page 15: Indicator Light Explanations
Indicator Light Explanations The LED Indicators will behave di erently with each button on the remote control. LED Indicators White Green Standby Optical Coaxial Blue Purple Orange Bluetooth USB In... -
Page 16: Advanced Connections
Advanced Connections! -
Page 17: Installing The Wall Mount
Installing the Wall Mount (Mount kits sold separately) 1. Insert the two wall-mount screws into the wall- 2. Remove the template, using an appropriately mount screw holes, and tighten them with a sized drill bit, drill a hole in the wall at each screwdriver. -
Page 18: Troubleshooting
Troubleshooting If you have a problem with your Sound Bar, there is quick simple solution, first make sure: The cables between Sound Bar and input devices are securely connected, the power adapter also connected to a working power source. The adapter LED indicator is lighting, and the LED indicator is lighting in the middle of Sound bar, No sound or crackling noise Check if all cables connected properly. - Page 19 I hear buzzing or humming Ensure all cables and wires are securely connected. Connect a di erent source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may be with the original device. Connect your device to a di erent input on the Sound Bar.
- Page 20 Get loud hum when use white/red RCA connection with tv Make sure your connections are inserted all the way. Make sure your device’s audio port is output (not input). Make sure your device’s audio output is turned on. Try the connection with phone or other devices, and see if there is the same loud hum, if no, you may need to have a higher end TV.
- Page 21 BESTISAN Best Artisan & Better Than Most Thanks for reading! Best Artisan Corp. Version 1.0 14261 PROCTOR AVE, CITY OF INDUSTRY, CA 91746 service@bestisan.com...
