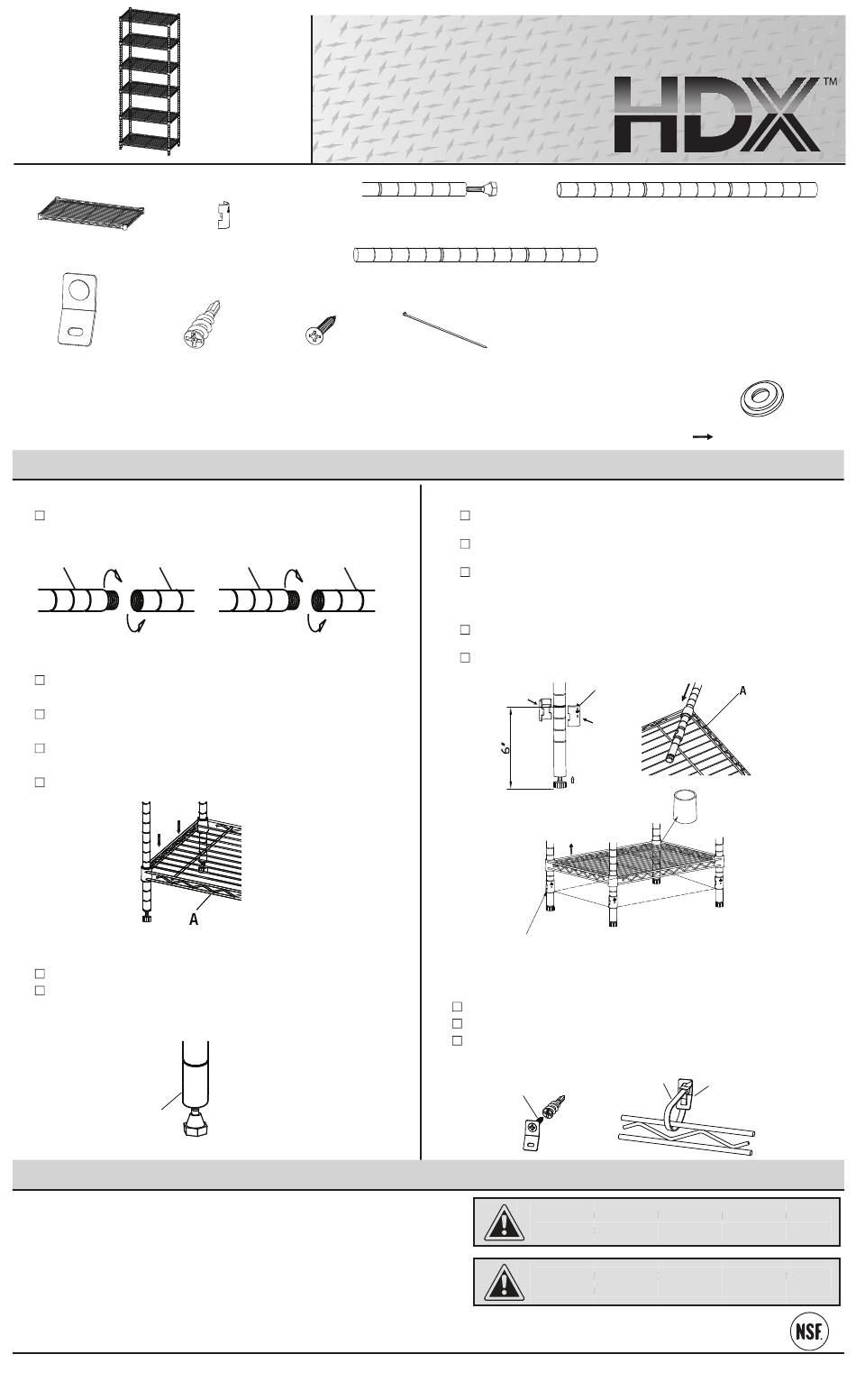

HDX 207149519 Use And Care Manual

PACKAGE CONTENTS
A - Shelf x 6
Tapered Sleeves x 2
F - Washer x 2 G - Anchor x 2
★Please read the manual carefully before you start assembling★
★Please inspect box contents to ensure you have received all components★
Note: The black circular plastic tops in between the shelves are used only for
packaging purposes. They are NOT NEEDED. Please discard.
Assembly
1
Assembling the posts
Screw a bottom pole (C) to middle pole (D), middle pole (D) to top
poles (E). Repeat for the remaining bottom, middle & top poles.
C
D
3
Adding shelves
Locate the desired position of the next lowest shelf and place the
tapered sleeves (B) on to the pole assemblies.
Slide the shelf (A) down from the top of the pole assemblies and
onto the tapered sleeves (B).
Push down on each shelf (A) corner, ensuring the shelf (A) is in
a fully locked position.
Repeat for the remaining shelves (A).
4
Adjusting the levelers
Move the assembly to the desired location.
If required, adjust the levelers on the bottom of the bottom poles
(C) to ensure the assembly is level. Rotate the levelers
counterclockwise to raise the poles, clockwise to lower the poles.
C
Safety Information
1. Two adults are recommended for ease of assembly. Use care when
handing.
2. Assembly recommended on a soft surface, such as carpet, to a
scratching flooring finish.
3. Discard the black circular plastic pieces. These are used to separate
the shelves for shipping purposes.
Use and Care Guide
6-Shelf Storage Unit
C - Bottom Poles with Levelers
B - Tapered
Sleeves x 48
Spare Plastic
H - Screw x 2
E D
Pre-installed x 4
E - Top Poles with Pole Connector & Caps
Pre-installed x 4
I - Plastic tie x 2
2
Assembling the bottom shelf
Locate the desired position of the bottom shelf (A). Ensure that it is
no more than 6 inch from the floor.
Place two tapered sleeves (B) into the appropriate groove on each
pole assembly. Make sure the "UP"arrow is facing up.
Place the shelf (A) on its side and slide each pole assembly with
tapered locks through the bottom of the shelf (A) until snug.
Make sure that the shelf corner cylinders are positioned
over the slip sleeves.
After all pole assemblies are in place, position the unit in the upright
position.
Push down on each corner of the shelf (A), ensuring the shelf (A) is
in a fully locked position.
Note: The tapered sleeves must be at the same height for each pole
to ensure the shelf sit on the sleeves levelly.
5
Tip resistant kit
Fix to wall to prevent tipping over.
Screw anchor (G) in wall at the height of the top shelf.
Put washer (F) over screw (H), install the screw (H) to the wall and
use plastic tie (I) to connect the washer (F) & the unit.
H
F
ITEM#SL-THDUS-006W
D - Middle Poles with Connector
Pre-installed x 8
B
up
NSF
down
UPSIDE (level side)
I
G
CAUTION: Do not allow children to climb or
play in or around the shelves.
CAUTION: Each shelf holds up to 250 lbs,
evenly distributed. Do not overload.
Please contact 1 (855) 439-4663 for further assistance.
Between 9 a.m and 4 p.m(Central Time) Monday to Friday
SKU#207149519
