Summary of Contents for PASCOR ATLANTIC FAS2-V

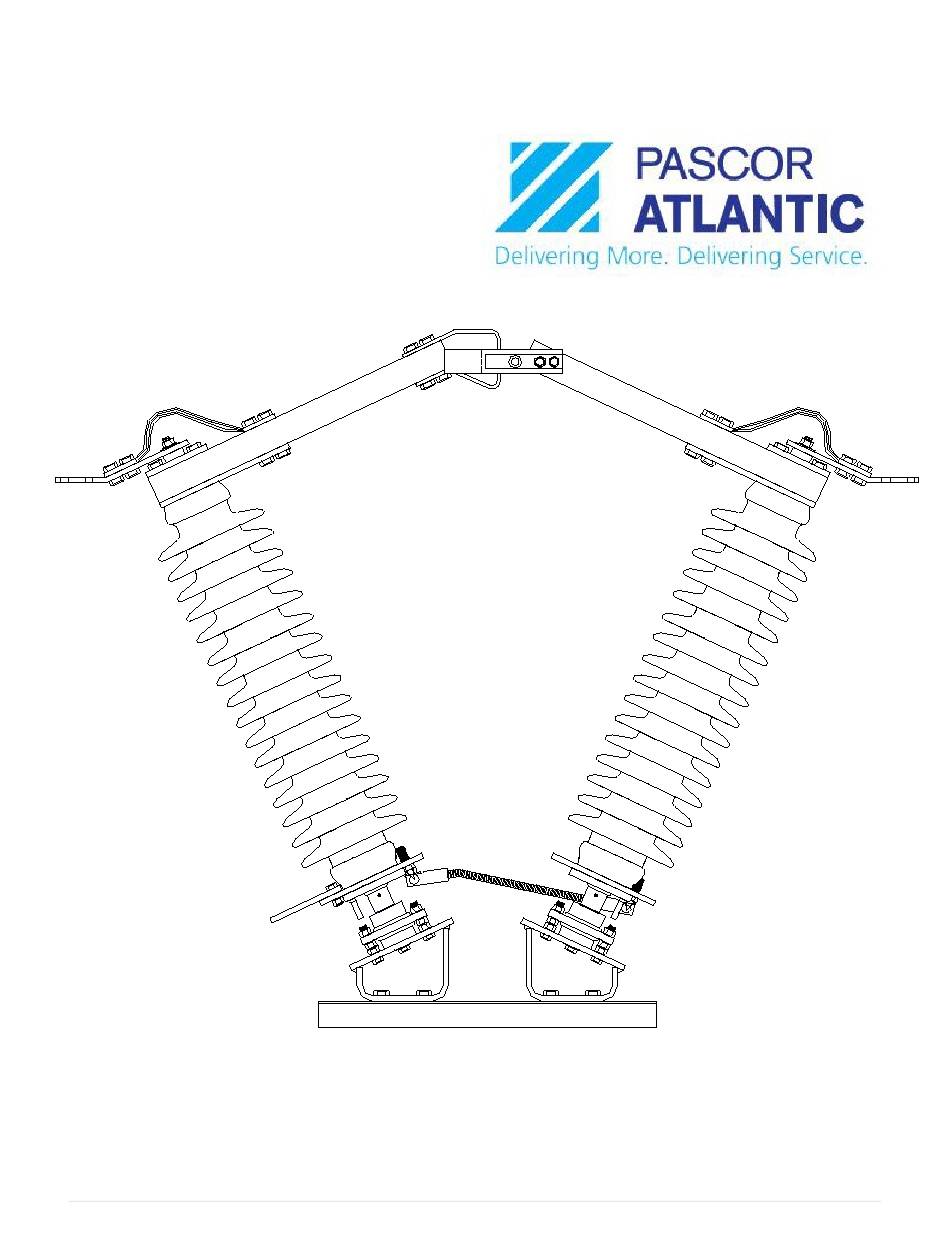

- Page 1 IB-FAS2-V April, 2014 Type FAS2-V 7.5 THRU 69Kv 600 – 1200 Amp 61 KA Momentary Center-Break, Gang-Operated Outdoor Air Disconnect Switch...
- Page 2 Contents Subject Page Receiving and Handling ..........Installation and Adjustment Step 1.
- Page 3 If torsional Pascor Atlantic representative. adjustment is necessary adjust the inter-pole linkage. Shorten the linkage for more close and HANDLING lengthen the linkage for less close.
- Page 4 angle, and stop crank for correct position. See Step 4—Install Interphase Rods Fig. 5 & 6. With all blades in the closed position, install the If the offset bearing has an adjustable crank, it is interphase rods and offset crank rod as follows: sometime necessary to add ¼”...
- Page 5 d. For lubrication of pins and bearing areas, see Table 2. Step 6—Install Operating Mechanism Two types of manual operating mechanisms Step 5—Install Vertical Operating Pipe • Swing-handle operator directly connected switch operating • Worm gear mechanism mechanism, attach vertical operating pipe to switch rotor bearing shaft.
- Page 6 Fig. 9 Geared Mechanism 4. If all stops at switch elevation have been set, including the offset bearing, then it is safe to reinstall the position indicators on the worm Fig. 10 MO-10 Motor Operator gear mechanism. These indicators should Step 8—Final Checks not quite touch the raised boss on the worm The completed 3-pole installation should be...
- Page 7 TERMINAL CONNECTIONS MAINTENANCE aluminum surface terminal connection provides for easy current transfer. WARNING Notice: In cases where a copper conductor is Before servicing the switch, be sure it is used, bolt a tinned terminal clamp (if available) disconnected from all electric power to the aluminum switch terminal pad.
- Page 8 Table 2 Table 1 Lubrication Guide for Outdoor Switch Components RECOMMENDED TORQUE FOR ALUMINUM BOLTS Qty. Req’d. for Type Lubricants Amount Part Name (6) Three-pole Bolt Recommended Applied Lubricated Threads Dry Threads Switches Diameter, Inches NO-OX-ID Grade “A” In. – Lbs. Ft. – Lbs. In. – Lbs. Ft. – Lbs. Medium Special or Mobil 28 Jaw Fingers...
