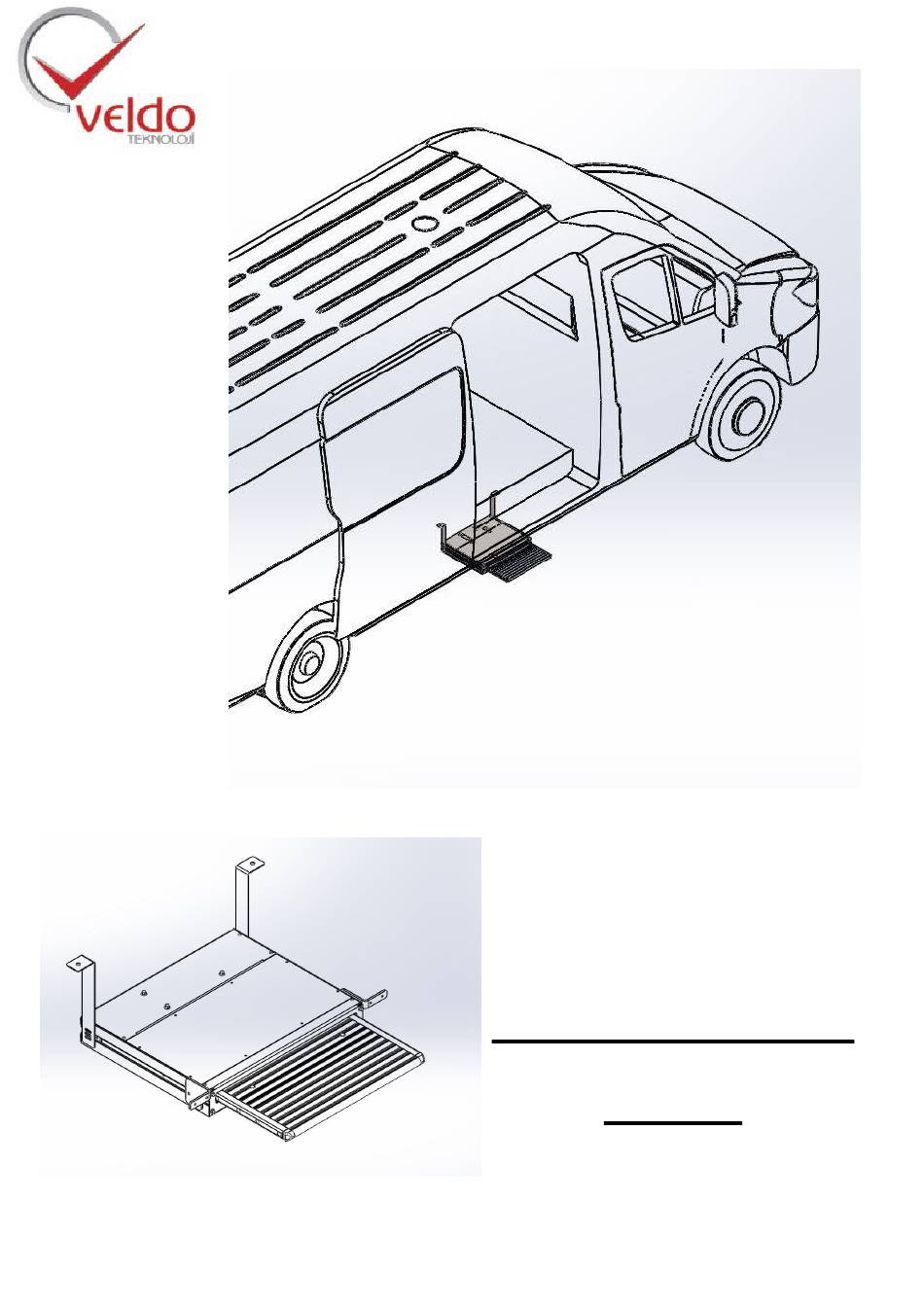

- Page 1 NEW PRO + STEP Veldo SSH 2019...
-
Page 2: Difficulty Level
INSTALLATION TIME 1 – 2 HOURS Professional installation recommended DIFFICULTY LEVEL EQUIPMENT LIST Protective glasses Ratchet wrench and arms Cable stripper Allen key utensil Electrical insulating strap Pliers 8 mm spanner 13 mm spanner ... - Page 3 Parts Step Control Unit Rear Connection Bracket Front Connection Bracket Veldo SSH 2019...
- Page 4 - Connection Components M5x32 trapezoid screw Front and rear step connection bolt M6x16 Template Veldo SSH 2019...
- Page 5 lectrical diagram and Components Control Unit Socket Supply Socket Switch Socket Step Engine Socket Step Chassis Socket Veldo SSH 2019...
- Page 6 - Wiring Installation Before installation, the fuse on the installation is removed from the place. !!!! Wiring and control unit installation is made in the compartment under the front passenger seat. For connections of the installation under the vehicle, the installation is taken from the hole under the front passenger seat to the underside of the vehicle.
- Page 7 - Wiring Installation Middle and front door switch connections are made to the region seen in the picture. For switch mounting, Ø 11 mm hole is drilled. With the smart mounting screw, the assembly is done. Veldo SSH 2019...
- Page 8 - Mechanic Installation For the front carrier foot connection, the vehicle’s original chassis hole is used. For the rear carrier foot connection, the vehicle’s original chassis hole is used. The completed version of the front and rear carrier foot connection is as in the picture.
- Page 9 - New Feature If the step is opened and does not close ( due to any faults or factors ) The connecting U_clips of the feet below the Step are removed by hand. The step that remains open can be closed by hand by removing the U_clips.
- Page 10 - Final Control When starting installation, replace the fuse that we have removed from the installation. After replacing the fuse, check the step operation. Veldo SSH 2019...
-
Page 11: Warranty
Veldo Teknoloji Makine Üretim Sanayi Ticaret A.Ş authorized dealer / service or Veldo Teknoloji Makine Üretim Sanayi Ticaret A.Ş report will be able to repair the failure if it is determined that it is not possible, a free replacement will be made.
