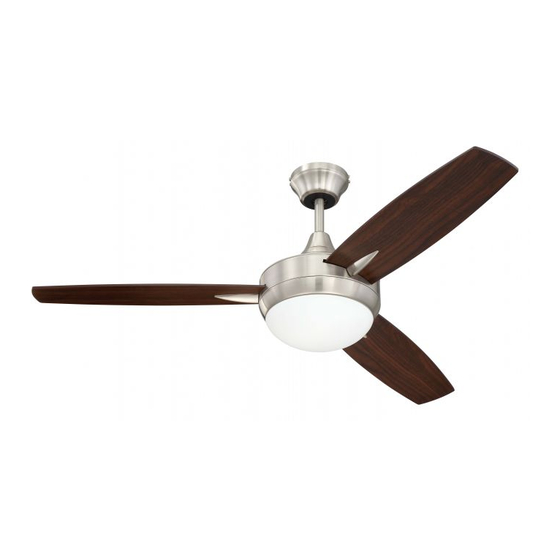

Targas
Installation Guide
For Models:
TG48
TG52
net weight of fan: 14.8 lb (6.7 kg) TG48
14.99 lb (6.8 kg) TG52
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 8
Warranty. pg. 11
page 1
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Targas TG48 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftmade Targas TG48

Summary of Contents for Craftmade Targas TG48

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Targas Installation Guide For Models: TG48 TG52 Table of Contents: Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly.

  • Page 2: Safety Tips

    SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. 48in fan blade edge To prevent personal injury and damage, ensure that inches 7 feet the hanging location allows the blades a clearance 12ft. - 15ft. (2.13 m) (76 cm) (3.66m - 4.57m) of 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or obstruction.

  • Page 5: Fan Assembly. Pgs

    5. Fan Assembly. Remove 6 screws and washers from yoke plate blade plate attachment (located on top plate on top of motor housing) screws and washers and set aside. Lift yoke plate and top plate to remove from motor housing and set aside. Time Saver: Washers can be set on each blade blade plate screw prior to installing blades.
  • Page 6 5. Fan Assembly. (cont.) set screw stop pin Remove hanging ball from downrod provided by loosening set screw on hanging ball. Remove pin and clip. Lower hanging ball and remove stop pin. hanging ball Slide hanging ball off of the downrod. [Refer to diagram 1.] clip Loosen yoke set screws and nuts at top of motor...
  • Page 7 5. Fan Assembly. (cont.) safety cable loop wood ceiling With the hanging bracket secured to the outlet box and joist able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through wood screw opening in hanging bracket and let hanging ball rest on the and washer...

  • Page 8: Wiring

    6. Wiring. WARNING: Turn off circuit breakers to current fixture from breaker panel and be sure operating light switch is turned to the OFF position. ground white supply wire (green or bare) CAUTION: Be sure outlet box is properly grounded and black supply wire that a ground wire (GREEN or Bare) is present.

  • Page 9: Canopy Assembly

    hanging bracket 8. Canopy Assembly. Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the screw hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and push up.

  • Page 10: Testing Your Fan

    11. Testing Your Fan. It is recommended that you test fan before finalizing installation. Slide the knobs to “O” (OFF) position in wall control. Restore power from circuit box. Test light and dimmer function and then test fan speeds. If fan and/or light do (does) not function, please refer to "Troubleshooting"...

  • Page 11: Troubleshooting

    Service at 1-800-486-4892 to arrange for return of fan. 1. Check power to fan. Return fan, shipping prepaid, to Craftmade. We will repair 2. Check to be sure fan is wired properly. or ship you a replacement fan, and we will pay the return 3.
