Panasonic NN-ST557M Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Microwave Oven
  5. NN-ST557M
  6. Service manual

Panasonic NN-ST557M Service Manual

Hide thumbs Also See for NN-ST557M:
1
2
3
4
5
6

Advertisement

Table of Contents

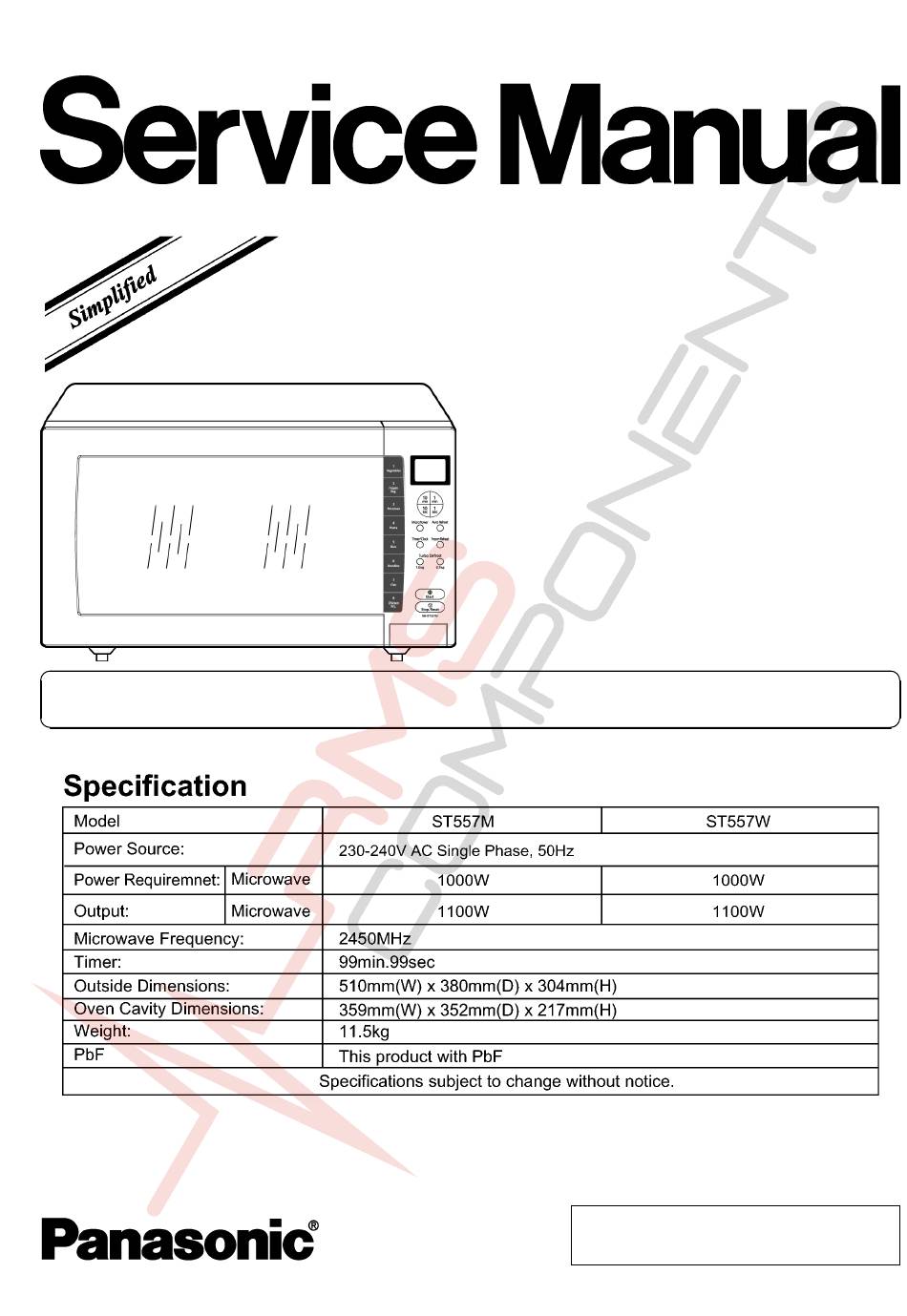

Please file and use this manual together with the service manual for Model NN-S453WF (ORDER NO.
SIMMC0306022C3).
NN-ST557M
NN-ST557W
QPQ(Australia & New Zealand)
© 2007 Panasonic Home Appliances Microwave
Oven (Shanghai) Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.PHAMOS0706035A3
Microwave Oven

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NN-ST557M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic NN-ST557M

Summary of Contents for Panasonic NN-ST557M

  • Page 1 QPQ(Australia & New Zealand) Please file and use this manual together with the service manual for Model NN-S453WF (ORDER NO. SIMMC0306022C3). © 2007 Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation...
  • Page 3 NN-ST557M / NN-ST557W / 5.2. PARTS LIST NOTE: 1. When ordering replacement part(s), please use part number(s) shown in this part list. Do not use description of the part. 2. Important safety notice: Components identified by mark have special characteristics important for safety.
  • Page 4 NN-ST557M / NN-ST557W / 5.3. DOOR ASSEMBLY Ref. No. Part No. Part Name & Description Pcs/Set Remarks F30185Q00AP DOOR KEY A F302K5Q00AP DOOR E(U) F30215G10XN DOOR KEY SPRING F30855Q00AP DOOR C F31456V60XP DOOR SCREEN A F302A8U20SXP DOOR A (U) ST557M...
  • Page 5 NN-ST557M / NN-ST557W / 5.5. ESCUTCHEON BASE ASSEMBLY Ref. No. Part No. Part Name & Description Pcs/Set Remarks F603L8B60QP D.P. CIRCUIT (AU) F603Y8B60QP D.P. CIRCUIT (DU) F630Y8B60SQP MEMBRANE SWITCH(U) ST557M F630Y8B60HQP MEMBRANE SWITCH(U) ST557W F800L8B60SQP ESCUTCHEON BASE (U) ST557M F800L8B60HQP...
  • Page 6 NN-ST557M / NN-ST557W / 5.6. PACKING AND ACCESSORIES Ref. No. Part No. Part Name & Description Pcs/Set Remarks F00038B60QP INSTRUCTION MANUAL F01028B60SQP PACKING CASE,PAPER ST557M F01028B60HQP PACKING CASE,PAPER ST557W F01045Q00AP UPPER FILLER F01055Q00AP LOWER FILLER F01067F50XN P.E.BAG F01078J00XN DOOR SHEET...
