Installing the Print Head

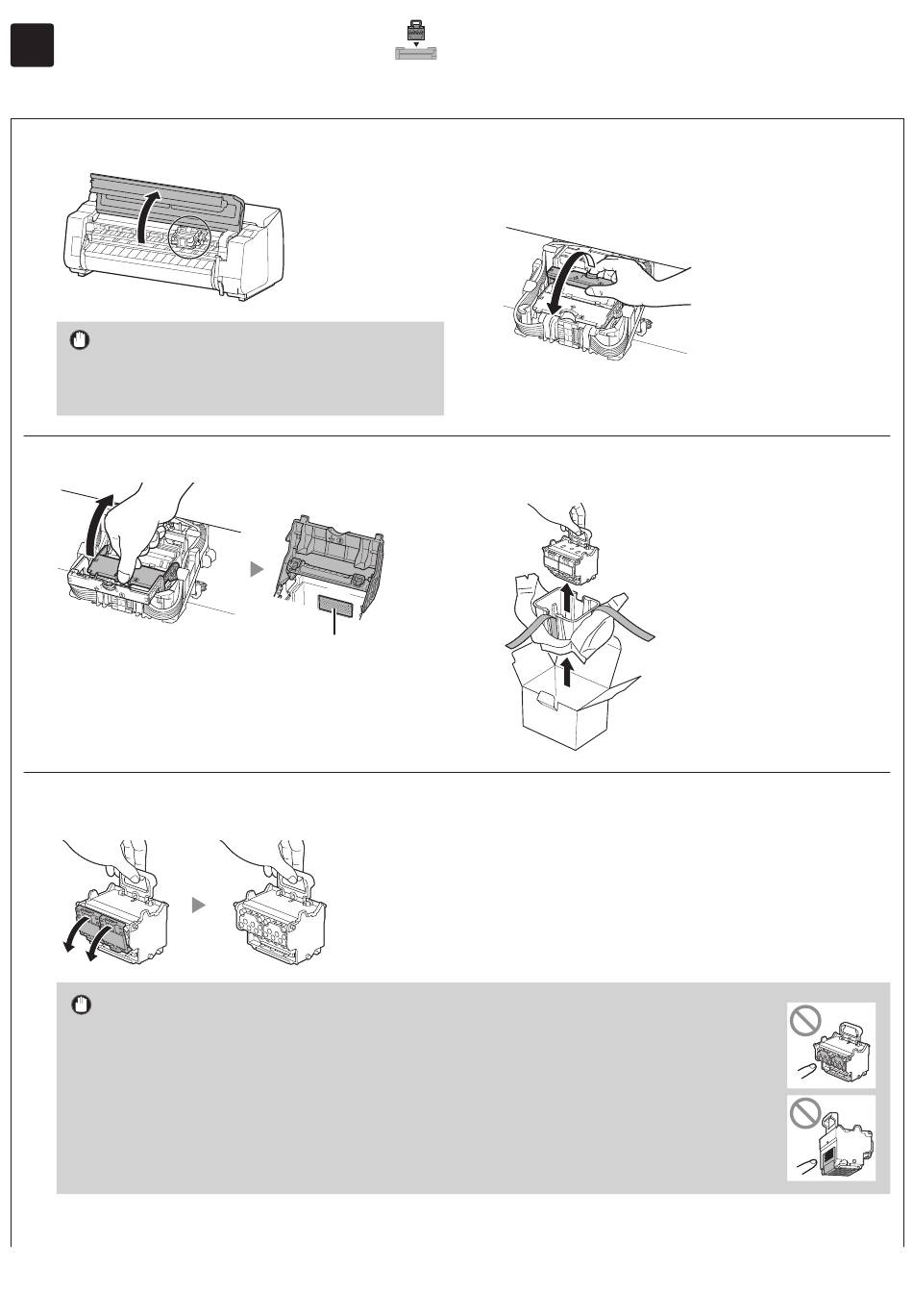

Instructions are now shown on the touch screen regarding print head installation. Install the print head by following the instructions.
1
Open the top cover.
Important
●
Do not move the carriage (the area enclosed by a circle in the
diagram). If you accidentally move it, temporarily close the top
cover and it will return to its original position.
3
Open the print head locking cover.
5
Remove the 2 orange protective caps.
●
Keep holding the print head in your hand while you work.
Important
●
The print head is filled with ink. Be careful to avoid getting your clothes and surrounding items dirty when removing the
protective caps.
●
Do not touch anywhere other than the handles. In particular, do not touch the part that was being protected by the
protective cap (part shown shaded in the diagram) under any circumstances. Touching it may cause damage to the print head
or printing problems.
●
Do not reattach the protective caps after removing them. Furthermore, dispose of them according to local regulations.
Do not touch here with your hands
2
Tilt the print head lock lever towards you.
● While pushing the button in the center of the lever, tilt the
lever towards you. Remove the protective sheet if there is one
attached.
4
Grasp the print head as shown in the diagram and
remove it from the bag.
