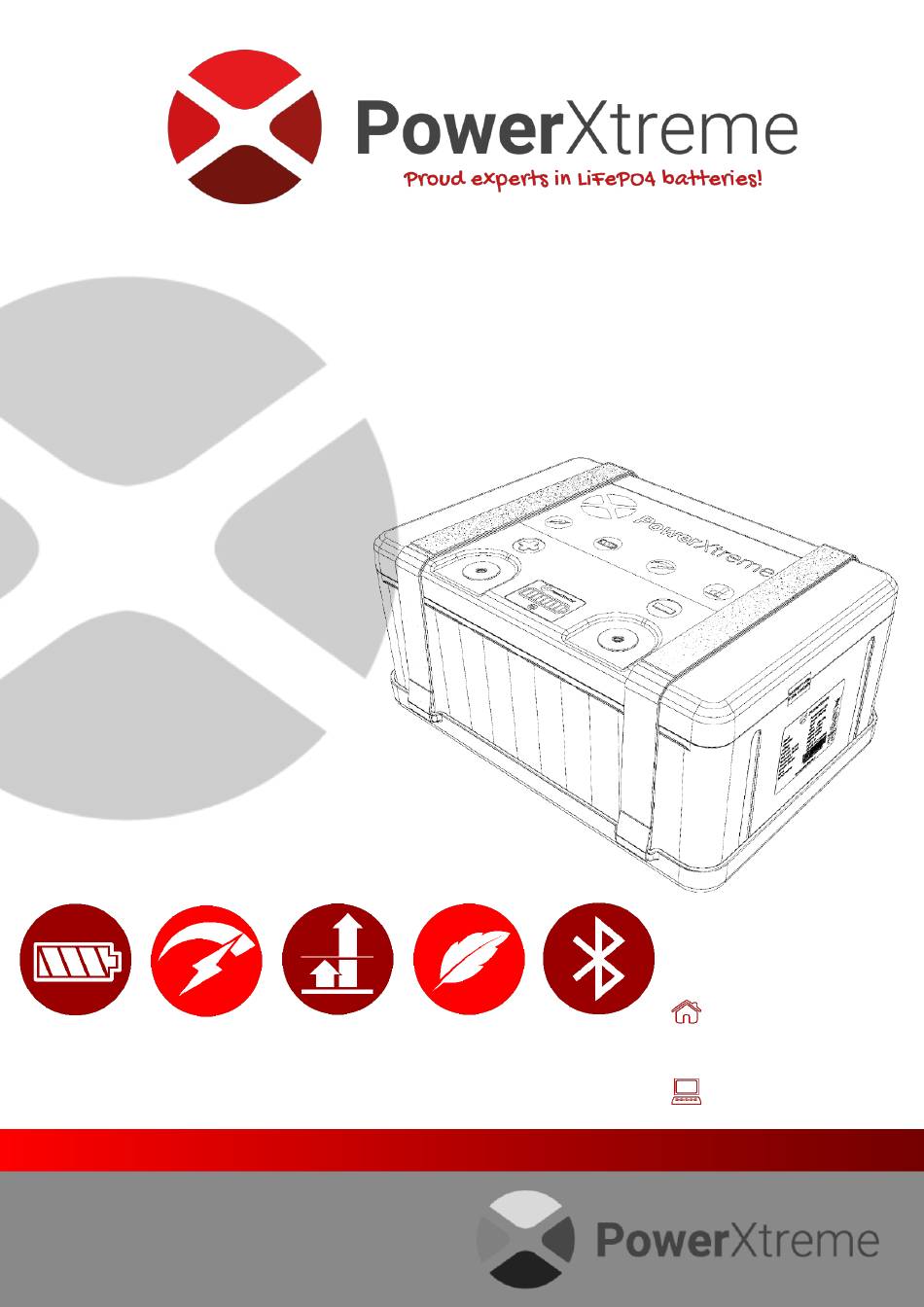

- Page 1 User manual PowerXtreme X20 & X30 LiFePO4 Battery EmergoPlus BV Informaticastraat 20 NL-4538 BT Terneuzen English www.emergoplus.com info@emergoplus.com Rev04...
-
Page 2: Table Of Contents
Dear customer, Congratulations on the purchase of this high quality PowerXtreme battery from EmergoPlus! This product has been developed using the most modern technologies and quality systems. We assure you that we make every effort to ensure trouble-free operation so that you are happy with your purchase. -
Page 3: Product Description
LiFePO4 battery does not need to be fully charged. A lead-acid battery will fail due to sulphating if it is not fully charged for a longer period of time. The PowerXtreme X20/X30 battery consists of 4 cells connected in series with a nominal voltage of 3.2V which together form 12.8V. -
Page 4: Safety Instructions
Never charge the battery pack at temperatures below 0 °C. Always use the supplied charger. This charger is suitable for LiFePO4 cell chemistry with the corresponding charging voltage. © 2021 EmergoPlus B.V. All rights reserved. DOCUMENT: E09-X20&X30 V2.0-EN03_Handleiding Date: 10-2-2021... -
Page 5: Transport Alert
If the battery is switched off due to a short-circuit, the cause of this short-circuit must be eliminated. After that, by connecting the charger to the grid, the battery will reactivate. © 2021 EmergoPlus B.V. All rights reserved. DOCUMENT: E09-X20&X30 V2.0-EN03_Handleiding... -
Page 6: Led Indicator
LEDs (+/- 5 sec.) indicate the level. lit for +/- 20 seconds. Battery capacity lower than 5% After pressing the red LED flashes © 2021 EmergoPlus B.V. All rights reserved. DOCUMENT: E09-X20&X30 V2.0-EN03_Handleiding Date: 10-2-2021 Page 5 of 16... - Page 7 This process continues to repeat until the battery is fully charged. Battery is fully charged The last LED lights up. The second last LED lights up (*this situation indicates balancing status.) © 2021 EmergoPlus B.V. All rights reserved. DOCUMENT: E09-X20&X30 V2.0-EN03_Handleiding Date: 10-2-2021 Page 6 of 16...
-
Page 8: Charging
Some caravans already have a charging system on board. In most cases our PowerXtreme batteries can be connected without any problems. Contact your dealer or our service-department for more information. © 2021 EmergoPlus B.V. All rights reserved. DOCUMENT: E09-X20&X30 V2.0-EN03_Handleiding... -
Page 9: Powerxtreme App
SOC (charge status) when the battery has not been used for a longer period of time. Once you have charged the battery, the SOC display will be correct again. © 2021 EmergoPlus B.V. All rights reserved. DOCUMENT: E09-X20&X30 V2.0-EN03_Handleiding Date: 10-2-2021... - Page 10 Low temperature at discharge Overcurrent when charging Too much current when discharged High Voltage Low Voltage Temperature/Voltage/Current back to normal Display remaining charge time © 2021 EmergoPlus B.V. All rights reserved. DOCUMENT: E09-X20&X30 V2.0-EN03_Handleiding Date: 10-2-2021 Page 9 of 16...
-
Page 11: Storage
The Buy Info tab: Provide the contact details of EmergoPlus. Storage If you want to store the battery for a longer period of time, disconnect the battery terminals. This will prevent the battery from being discharged by slumber leaking consumption. - Page 12 After first use test all the connections for (over) heating. Repair or replace connections that have become too hot. Check the wiring and connections at least once a year. Immediately rectify defects such as loose connections and burnt/melted cables. System overview: A = PowerXtreme X20/X30 B = Fuse C = Main switch D = Load WARNING! Never connect the battery in parallel to another battery, including the wiring from the car.
-
Page 13: Decommissioning
5 Technical specifications Indication battery Indication battery capacity + LED indication charging process pole Charging cord pole connection © 2021 EmergoPlus B.V. All rights reserved. DOCUMENT: E09-X20&X30 V2.0-EN03_Handleiding Date: 10-2-2021 Page 12 of 16... -
Page 14: Battery
Over current, Under- and Over voltage, Short circuit, Temperature Internal charger Input Voltage 100 – 240 Input Frequency 50 – 60 Output Voltage 14,6 Charge Current Charging Characteristic CC - CV © 2021 EmergoPlus B.V. All rights reserved. DOCUMENT: E09-X20&X30 V2.0-EN03_Handleiding Date: 10-2-2021 Page 13 of 16... -
Page 15: Failures And Repair
Turn on the battery with the PowerXtreme Battery is switched off in the app or consult Service on our website www.powerxtreme.nl For an extensive fault flowchart see: www.powerxtreme.nl/service © 2021 EmergoPlus B.V. All rights reserved. DOCUMENT: E09-X20&X30 V2.0-EN03_Handleiding Date: 10-2-2021 Page 14 of 16... -
Page 16: Warranty Conditions
You can also contact the head office of EmergoPlus BV. When invoking the warranty, the product (or the defect part) must be accompanied by the warranty certificate and the original purchase invoice. -
Page 17: Eg Declaration Of Conformity
The Netherlands declare for the product described below: Generic name : LiFePO4 battery Trade name : PowerXtreme X20/X30 Model : X20/X30 Function : 12V Battery for power supply in caravans and other applications. that all relevant provisions of the Machinery Directive are met;...
