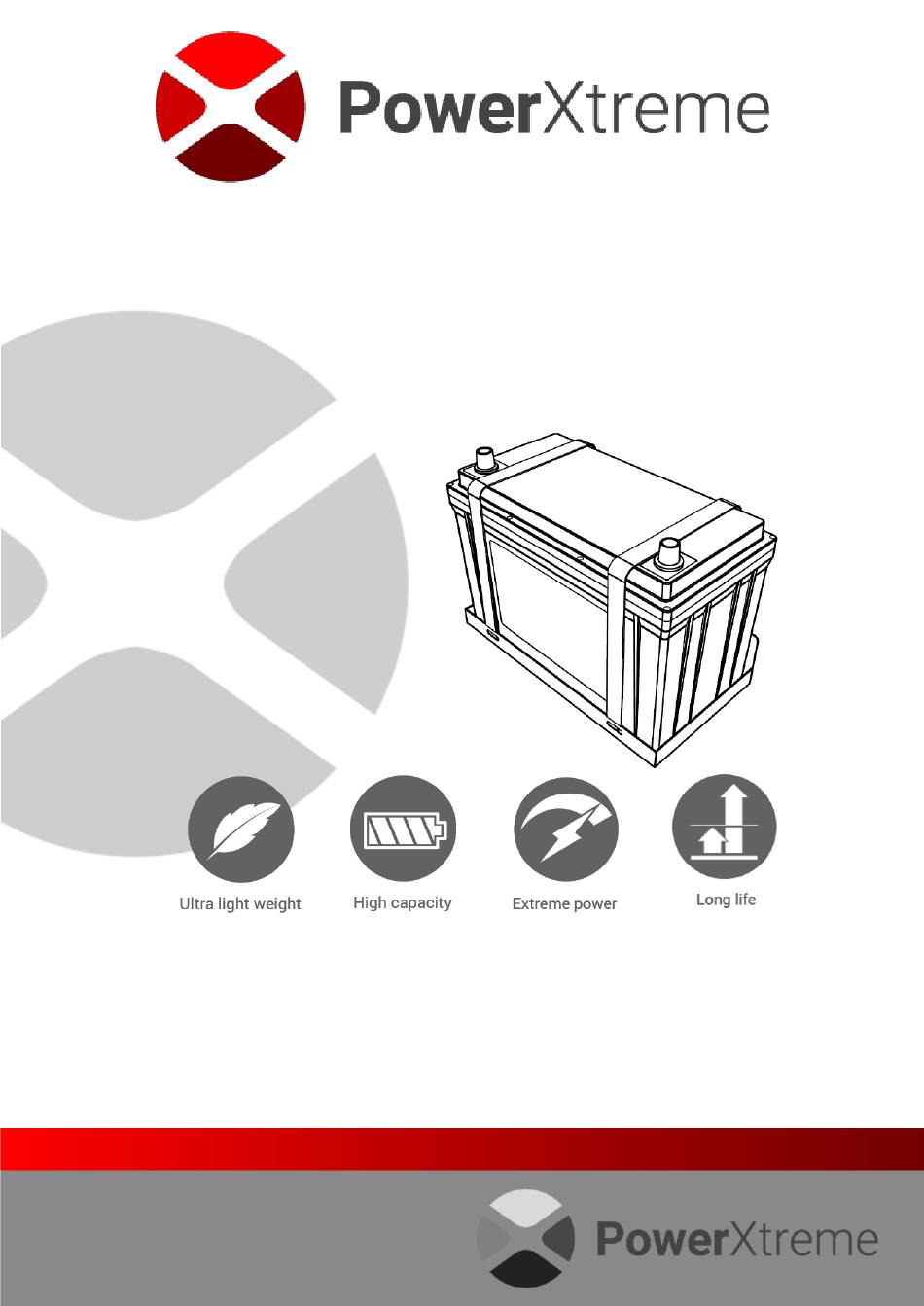

- Page 1 User manual POWERXTREME X75/X125 LiFePO4 Battery EmergoPlus BV Informaticastraat 20 NL 4538 BT Terneuzen Tel. +31 85 20 18 158 www.emergoplus.com info@emergoplus.com Dear customer,...
- Page 2 User manual PowerXtreme X75/X125 Thank you for purchasing the high quality PowerXtreme battery from EmergoPlus! This product has been developed using the most modern technologies and quality systems. We assure you that we make every effort to ensure trouble-free operation so that you are happy with your purchase.
-
Page 3: Table Of Contents
User manual PowerXtreme X75/X125 Product description ................3 Safety instructions................. 6 Safety instructions statement ............6 Safety instructions ............... 6 Transport alert ................8 Description and Operation ..............9 LiFePO4 battery for camper use ........... 9 Charging ..................9 PowerXtreme App ............... 10 PowerXCharger XC3 (OPTIONAL) .......... - Page 4 LiFePO4 battery does not need to be fully charged. A lead-acid battery will fail due to sulphating if it is not fully charged for a longer period of time. The PowerXtreme X75/X125 battery consists of 4 cells connected in series with a nominal voltage of 3.2V which together form 12.8V.
- Page 5 The PowerXtreme X75/X125 are equipped with Bluetooth technology that allows monitoring of the battery and switching it on and off via an App.
-
Page 6: Safety Instructions
User manual PowerXtreme X75/X125 2. Safety instructions Safety instructions statement The safety instructions help you to avoid hazards when performing actions. The safety instructions are divided into the following categories: WARNING! Means that the act in question is dangerous and should be prepared before proceeding. - Page 7 User manual PowerXtreme X75/X125 contact with the electrolyte, rinse it immediately with plenty of water. After this, consult a doctor. ▪ Use cables of the correct cross-section and keep the cable connections as short as possible. Use reliable cable clamps and tighten the bolts firmly.
-
Page 8: Transport Alert
User manual PowerXtreme X75/X125 Transport alert ▪ The Li-ion battery must be transported in its original packaging. ▪ The X75/X125 batteries have been tested according to the UN handbook for tests and criteria, part III, paragraph 38.3 (ST/SG/AC.10/11/Rev.5). During transport, the battery falls under category UN3480 class 9, packing group II and must be transported in accordance with these regulations. -
Page 9: Description And Operation
User manual PowerXtreme X75/X125 3. Description and Operation 3.1 LiFePO4 battery for camper use The X75 and X125 are excellent for use as a household battery in your motorhome. As mentioned before, the capacity can be used for 100%, which saves you the necessary space and weight compared to a lead-acid battery. -
Page 10: Powerxtreme App
User manual PowerXtreme X75/X125 You can also charge the battery while driving. For this you need to use a so- called charge booster. The charging booster converts the available charging voltage into the 14.6V required for the LiFePO4 battery. This charging voltage is necessary because at lower voltages¹... - Page 11 User manual PowerXtreme X75/X125 battery by the serial number that starts with EP..Select your battery, then connect via Bluetooth and you will see all the information about the battery. The following data is displayed in the APP: Basic Info tab:...
- Page 12 User manual PowerXtreme X75/X125 Health shows the condition of the battery. This varies from Perfect, Good and Bad. The three dots at the bottom right open a menu intended for service purposes. U.I.T.C. info tab: Voltage meter Terminal voltage of the battery in V...
- Page 13 ▪ Display remaining charge time ▪ The Buy Info tab Please provide the contact details of EmergoPlus. PAY ATTENTION! It is possible that the app displays a value that is too low for the SOC (charge status) when the battery has not been used for a longer period of time.
-
Page 14: Powerxcharger Xc3 (Optional)
User manual PowerXtreme X75/X125 3.4 PowerXCharger XC3 (OPTIONAL) To charge the battery while driving, the PowerXCharger XC3 is available as an option. This converts the charging voltage of the car alternator into the right charging voltage for the PowerXtreme battery. Due to the limited charging current, there is no need to install thick wiring. - Page 15 User manual PowerXtreme X75/X125 Figure 1. Package contents X75/X125 After unpacking, check all parts for possible damage. ▪ Fully charge the battery before first use. ▪ WARNING! Never use the LiFePO4 battery in locations with gas or dust explosion hazards or potentially flammable products.
- Page 16 User manual PowerXtreme X75/X125 PAY ATTENTION! The supplied battery poles have different diameters, the thinnest is for the negative pole, the thickest for the positive pole. Figure 2. Difference diameter of + and - pole Switch off all loads and charging equipment before you start ▪...
- Page 17 User manual PowerXtreme X75/X125 Figure 3. WRONG! Loose connection by using too long bolt CAFEFUL! Observe the polarity of the battery and avoid short circuits! Equipment whose polarity is incorrectly connected can be irreparably damaged. Do not work on the LiFePO4 battery or the installation when it is still ▪...
- Page 18 User manual PowerXtreme X75/X125 After first use or test all connections for (over) heating. Repair or ▪ replace connections that have become too hot. Check the wiring and connections at least once a year. Immediately ▪ rectify defects such as loose connections and burnt cables.
-
Page 19: Decommissioning
User manual PowerXtreme X75/X125 4. Decommissioning Electric appliances should not be disposed of with normal household waste. According to the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), these devices must be collected separately in order to recycle them in an environmentally friendly manner possible. -
Page 20: Technical Specifications
User manual PowerXtreme X75/X125 5. Technical specifications Denomination Battery pole pole Figure 5. Battery X75/X125 Battery Model X125 Cell Chemistry LiFePO4 Cell Technology Prismatic Voltage Nominal voltage 12,8V Capacity 75Ah 75Ah Max. continuous current 100A Momentary current (30 150A Sec) www.emergoplus.com... - Page 21 User manual PowerXtreme X75/X125 Peak power 200A Max. charging current 100A Max. charging voltage 14,6V Max. discharge voltage Operating temperature -20 °C - +60 °C Charge temperature 0 °C - 45 °C Storage temperature -10 °C - 45 °C Weight...
-
Page 22: Faults And Repairs
User manual PowerXtreme X75/X125 6. Faults and repairs 6.1 Fault finding table Problem Cause Solution No voltage at poles. Short circuit or Disconnect the battery overload. terminals and reconnect them. Let the charger charge for a while. Battery capacity drops... -
Page 23: Warranty Conditions
5 years. 8. Liability EmergoPlus cannot be held liable for: ▪ Damage resulting from the use of the PowerXtreme X75/X125; ▪ Possible errors in the supplied manual and their consequences; ▪ Use that is incompatible with the purpose of the product. -
Page 24: Eg Declaration Of Conformity
User manual PowerXtreme X75/X125 9. EG Declaration of Conformity EG DECLARATION OF CONFORMITY OF ELECTRICAL EQUIPMENT Declaration according to Directive 2014/35 / EC, as amended This language version of the statement is checked by the manufacturer (original statement). Name EmergoPlus BV... - Page 25 User manual PowerXtreme X75/X125 and which the following natural or legal person established in the Community is authorized to compile the technical file: Name EmergoPlus BV Name and position Dick van Wijck, CEO Address Informaticastraat 20, 4538 BT Terneuzen Country...
