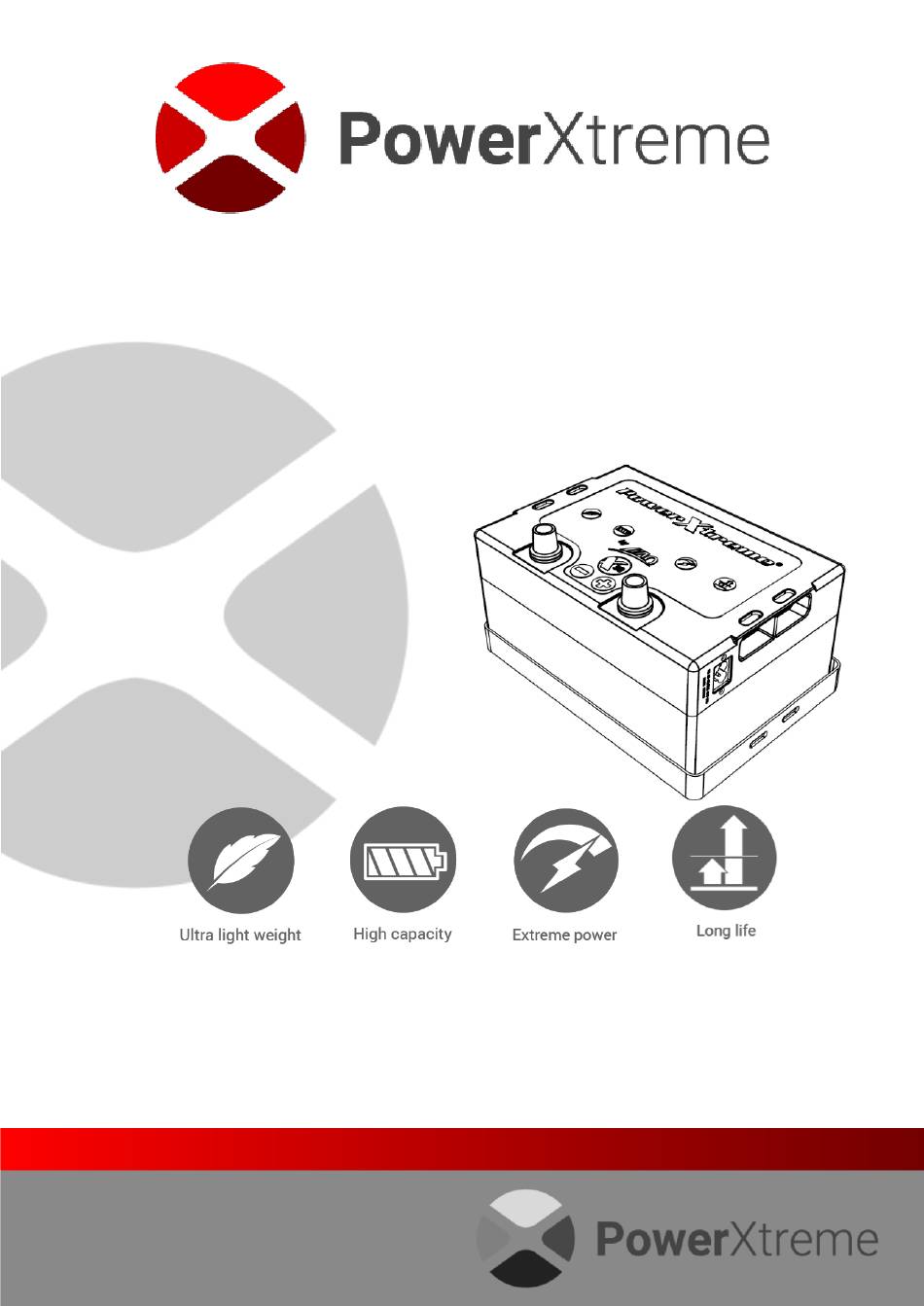

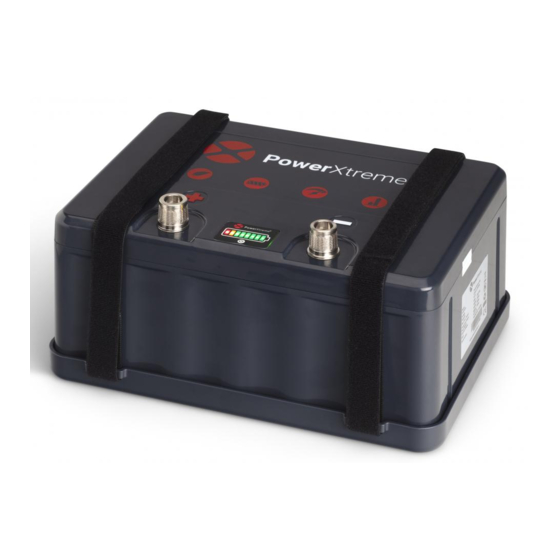

- Page 1 User manual POWERXTREME X20/X30 LiFePO4 Battery EmergoPlus BV Informaticastraat 20 NL 4538 BT Terneuzen Tel. +31 85 20 18 158 www.emergoplus.com info@emergoplus.com...
- Page 2 Dear customer, Thank you for purchasing the high quality PowerXtreme battery from EmergoPlus! This product has been developed using the most modern technologies and quality systems. We assure you that we make every effort to ensure trouble-free operation so that you are happy with your purchase.
-
Page 3: Table Of Contents
Technical specifications ..............20 Denomination Battery ..............20 Technical data ................20 Faults and repairs ................22 Fault finding table ................ 22 Warranty conditions ................23 Liability ....................23 EG Declaration of Conformity ............. 24 www.emergoplus.com E18-X20X30-EN00 Page 3 of 25... -
Page 4: Product Description
Overvoltage - If the cell voltage exceeds 3.65V during charging, the ▪ BMS will stop the higher voltage. The BMS stops the charging process before the cell voltage becomes too high. www.emergoplus.com E18-X20X30-EN00 Page 4 of 25... - Page 5 The PowerXtreme X20 is equipped with Bluetooth technology that allows monitoring of the battery and switching it on and off via an App. The PowerXtreme X30 does not have Bluetooth technology, but has a capacity indication by means of LEDs on the housing. www.emergoplus.com E18-X20X30-EN00 Page 5 of 25...
-
Page 6: Safety Instructions
▪ The electrolyte is highly corrosive. Under normal circumstances, contact with the electrolyte is not possible. In case of damage to the battery, avoid direct contact with the electrolyte or powder. If you have come into www.emergoplus.com E18-X20X30-EN00 Page 6 of 25... - Page 7 ▪ Make sure that the battery and charger are never covered with clothing or other materials! This can lead to overheating! CAREFUL! Using a charger that is not suitable for LiFePO4 chemicals can damage the battery because it is not properly charged. www.emergoplus.com E18-X20X30-EN00 Page 7 of 25...
-
Page 8: Transport Alert
P965. The original packaging complies with these instructions. ▪ Make sure that the battery is properly secured during transport. The battery can become a projectile if a vehicle is involved in an accident. www.emergoplus.com E18-X20X30-EN00 Page 8 of 25... -
Page 9: Description And Operation
The battery capacity can be read by pressing the thickener in the foil. One, two or three green LEDs will light up as a rough indication of the charge status. When the battery is empty, a small red LED lights up. Figure 1. SOC Indication on battery www.emergoplus.com E18-X20X30-EN00 Page 9 of 25... -
Page 10: Powerxtreme App
Bluetooth and you will see all the information about the battery. The following data is displayed in the APP: Basic Info tab: State of Charge: SOC State of charge in % ▪ www.emergoplus.com E18-X20X30-EN00 Page 10 of 25... - Page 11 Health shows the condition of the battery. This varies from Perfect, Good and Bad. The three dots at the bottom right open a menu intended for service purposes. U.I.T.C. info tab: Voltage meter Terminal voltage of the battery in V www.emergoplus.com E18-X20X30-EN00 Page 11 of 25...
- Page 12 Cycle life keeps track of how often the battery has been discharged by 80%. For example, from 90% SOC to 10% SOC is a cycle. Also, from 70% SOC to empty then charging to 100% and empty to 90% is a cycle. www.emergoplus.com E18-X20X30-EN00 Page 12 of 25...
-
Page 13: Powerxcharger Xc3 (Optional)
▪ Display remaining charge time ▪ The Buy Info tab Please provide the contact details of EmergoPlus. PAY ATTENTION! It is possible that the app displays a value that is too low for the SOC (charge status) when the battery has not been used for a longer period of time. -
Page 14: Storage
In the box, you will find the following parts: ▪ Battery with charger mounted inside Battery terminals + and – Mounting plate with Velcro and 4 self-tapping screws Charging cord 230V Instruction card Figure 2. Package contents X20/X30 www.emergoplus.com E18-X20X30-EN00 Page 14 of 25... - Page 15 Figure 3. Difference diameter of + and - pole Switch off all loads and charging equipment before you start ▪ connecting. www.emergoplus.com E18-X20X30-EN00 Page 15 of 25...
- Page 16 10mm. CAREFUL! If bolts that are too long are used, the connections will not get stuck! This leads to large contact resistances and can cause the battery or equipment to spark or switch off. www.emergoplus.com E18-X20X30-EN00 Page 16 of 25...
- Page 17 Do not work on the LiFePO4 battery or the installation when it is still ▪ live. Only have changes to your electrical installation carried out by qualified electricians. www.emergoplus.com E18-X20X30-EN00 Page 17 of 25...
- Page 18 A = PowerXtreme X20/X30 B = Fuse C = Main switch D = Battery charger Figure 5. Wiring diagram WARNING! Never connect the battery in parallel to another battery, including the wiring from the car. www.emergoplus.com E18-X20X30-EN00 Page 18 of 25...
-
Page 19: Decommissioning
Electric appliances should not be disposed of with normal household waste. According to the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), these devices must be collected separately in order to recycle them in an environmentally friendly manner possible. www.emergoplus.com E18-X20X30-EN00 Page 19 of 25... -
Page 20: Technical Specifications
Figure 6. Battery X20 / Charging cord connection Indication battery capacity + LED indication charging process Figure 8. SOC en charging indicator Technical data Model Cell Chemistry LiFePO4 Cell Technology Prismatic Voltage Nominal voltage 12,8V Capacity 20Ah 30Ah www.emergoplus.com E18-X20X30-EN00 Page 20 of 25... - Page 21 Over current, Under- and Over Safety features voltage, Short circuit, Temperature Internal charger Input Voltage 100 – 240 VAC Input Frequency 50 – 60 Hz Output Voltage 14,6 VDC Charge Current Charging Characteristic CC - CV www.emergoplus.com E18-X20X30-EN00 Page 21 of 25...
-
Page 22: Faults And Repairs
6.1 Fault finding table Problem Cause Solution Charger LED-flashes Charger defective. Send charger to red. Emergoplus for repair. Charger LED flashes Possible charger Check charging red after charging for current (4A) with APP. defective or charging a while. Reconnect the circuit failure. -
Page 23: Warranty Conditions
This could imply that the warranty becomes void. The warranty period is 2 years. If you register your battery with us (via website www.emergoplus.com) we extend the warranty period to 5 years. 8. Liability EmergoPlus cannot be held liable for: ▪... -
Page 24: Eg Declaration Of Conformity
EG DECLARATION OF CONFORMITY OF ELECTRICAL EQUIPMENT Declaration according to Directive 2014/35 / EC, as amended This language version of the statement is checked by the manufacturer (original statement). Name EmergoPlus BV Address Informaticastraat 20, 4538 BT Terneuzen Country The Netherlands... - Page 25 Community is authorized to compile the technical file: Name EmergoPlus BV Name and position Dick van Wijck, CEO Address Informaticastraat 20, 4538 BT Terneuzen Country The Netherlands Done at Kapelle 3-9-2018 Dick van Wijck CEO, EmergoPlus BV www.emergoplus.com E18-X20X30-EN00 Page 25 of 25...
