Master equipment PolyPro TP2012 Assembly Instructions

Parts List
(A) Legs (4)
(B) Base (1)
(C) Support Grooming Arms (3)
(D) Subsidiary Grooming Arm (1)
(E) Major Grooming Arm (1)
(F) Drain (1)
(G) Locking Ring (1)
(H) Washer (1)
(I) Strainer (1)
(J) Drain plug (1)
(K) Hose (1)
(L) Door (1)
(M) Screws (12)
(N) Ramp (1)
Tools Requried:
Phillips head screwdriver
1). Begin by turning the Base (B) upside down. Attach the Legs (A) to the Base (B) of the tub. Line up the
Leg with the base by using the groove. Attach the Leg securely to the body using a Phillips head
screwdriver (not included) and Screws (M) included. Each leg has three screw attachments. Repeat this
step on each of the four legs.
3). Place the Drain (F) into the 4). Screw in the Drain (F) to secure it to the tub.
hole in the floor of the tub.
7). Place the Strainer (I) into the Drain (F) on the floor of the tub.

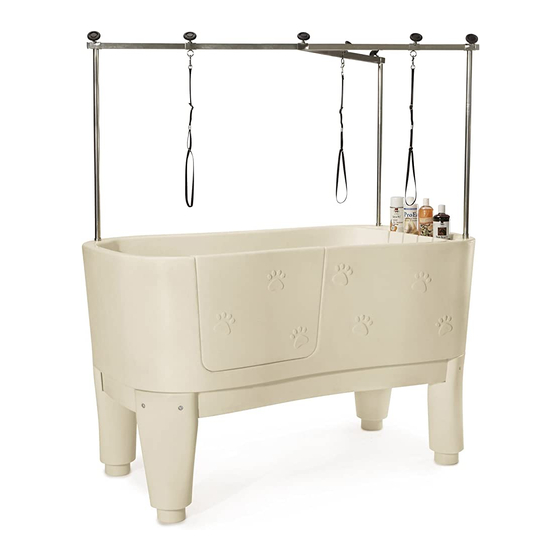

TP2012 Master Equipment PolyPro Grooming Tub
Assembly Instructions
B
A
K
I
F
G
J H
8). Place the Drain Plug (J) into the Drain (F) on the floor of the tub.
L
5). Underneath the base of the tub, place the Washer (H) over the
bottom of the Drain (F).
M
N
2). Stand the tub up on its feet.
6). Screw the Locking Ring (G) overtop to secure.
9). Attach the Hose (K) to the bottom of the Drain (F)
(underneath the tub base) and screw it to secure.
E
D
C
