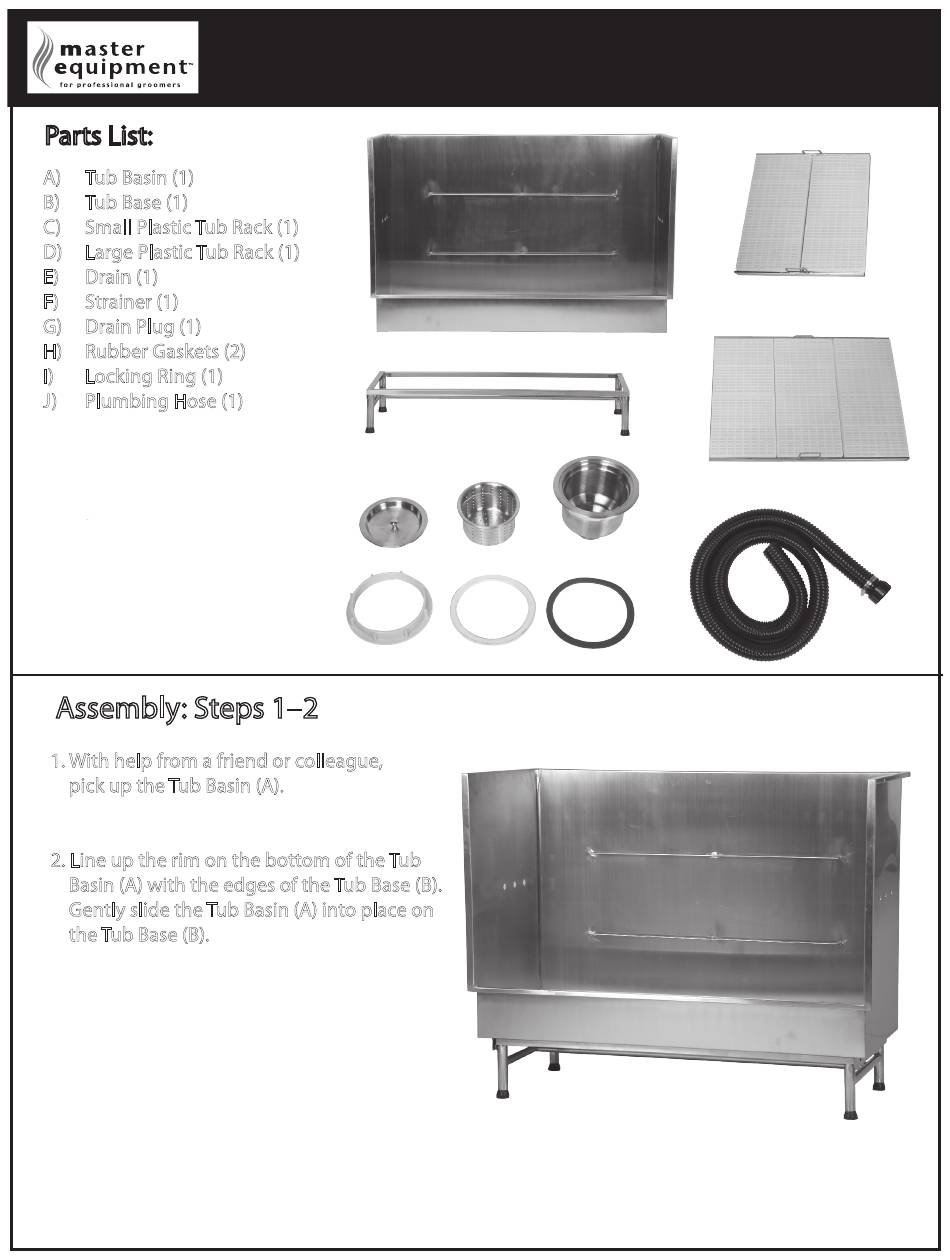

TP9375 Master Equipment
Assembly Instructions
Parts List:
A)
Tub Basin (1)
B)
Tub Base (1)
C)
Small Plastic Tub Rack (1)
D)
Large Plastic Tub Rack (1)
E)
Drain (1)
F)
Strainer (1)
G)
Drain Plug (1)
H)
Rubber Gaskets (2)
I)
Locking Ring (1)
J)
Plumbing Hose (1)
Assembly: Steps 1–2
1. With help from a friend or colleague,
pick up the Tub Basin (A).
2. Line up the rim on the bottom of the Tub
Basin (A) with the edges of the Tub Base (B).
Gently slide the Tub Basin (A) into place on
the Tub Base (B).
A
B
F
G
I
B
Superior Stainless Walk–In Tub
™
E
H
A
C
D
J
