Master equipment TP15140 Instructions

TP15140 elec. grooming table inst
Height adjusts
from 20" to 44"
Lifts up to
180 lbs.
Leg levelers for all four legs
Basic safety instructions should be followed when using electrical appliances, including the following:
READ ALL INSTRUCTIONS BEFORE USING. DESIGNED FOR ANIMAL USE ONLY.

OPERATING INSTRUCTIONS:

This table is designed for use on alternating current 120V only. This grooming table also has a polarized plug (one blade is wider
than the other). As an important safety feature, this plug is intended to fit into a polarized outlet only one way. If the plug does not
fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not attempt
to modify the plug in any way. This table is also designed with an automatic shut-off. Motor, transformer, and cord are all UL
Approved. We recommend that this table be used with a surge protector at all times.
TABLE OPERATION:
1. Before use, make sure table is level by turning leveling feet under each base leg. Plug cord into any standard
110/120 wall outlet.
2. This grooming table is equipped with identical up and down control pedals located on each side of the table base.
3. The pedal on your right as you are facing the table moves the table up; the pedal on your left moves the table down.
4. To reduce strain and unnecessary lifting of large animals, it is recommended to lower the table to the minimum
height and let animal step up onto table before positioning table at desired height for grooming.
5. Once animal is positioned on table, place the grooming loop that is attached to grooming arm around
animal's neck and adjust loop to fit comfortably.
ASSEMBLY OF FOLDABLE GROOMING ARM:
1. Place arm support base on edge of grooming table and tighten bolt clamp to secure to tabletop.
2. Loosen height adjustment knobs and slide grooming arm post at both top and bottom until it is at desired height.
Tighten knobs to lock into place.
3. Swing foldable arm over post until it is positioned over table perpendicular to grooming post.
4. Attach grooming loop to eye-screw at top of arm.
5. Fold arm back against post when not in use.
1/12/06 11:32 AM
Telescoping arm folds
for easy storage
Non-skid vinyl surface
Steel construction
Dual foot pedal
Down Up
controls on each side
SAVE THESE INSTRUCTIONS • IMPORTANT SAFEGUARDS
Page 1

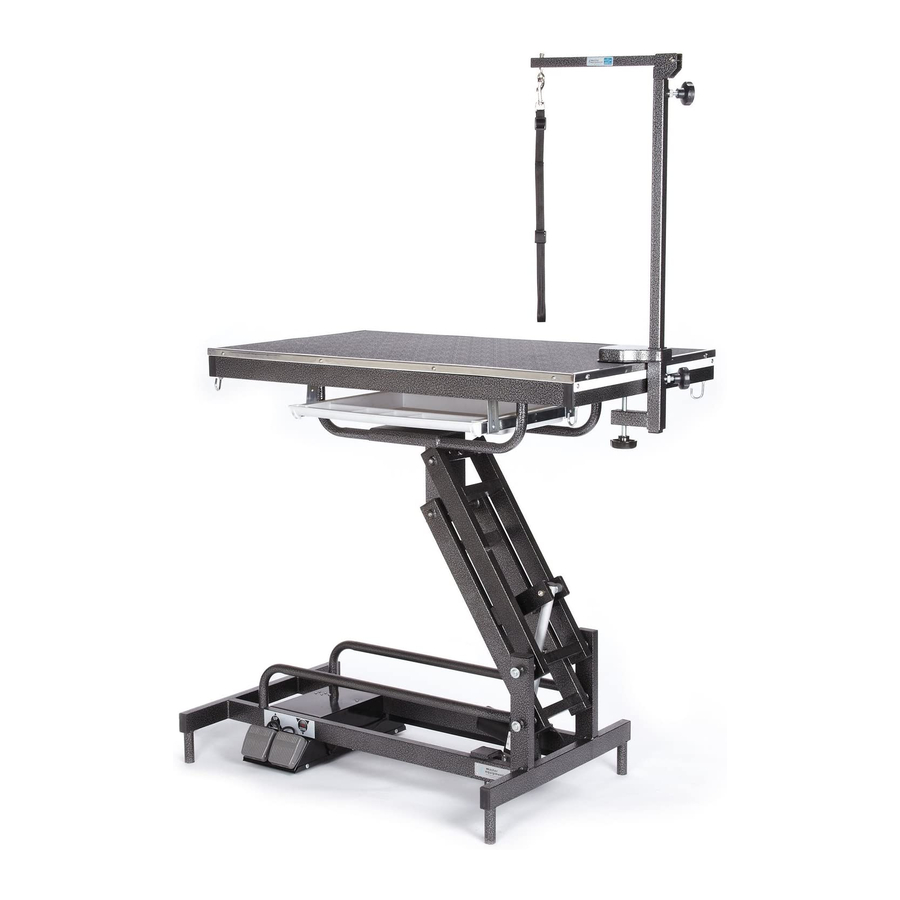

Electric Grooming
Foldable Arm
• 41"L x 24"W x 3" thick tabletop
• Height adjusts from 20" to 44"
• Heavy-duty steel construction
• Durable, rust-resistant, powder-coated finish
• Convenient hooks for hanging tools
Page 1 of 3
Table With
• Lifts up to 180 lbs
• Ultra quiet operation
