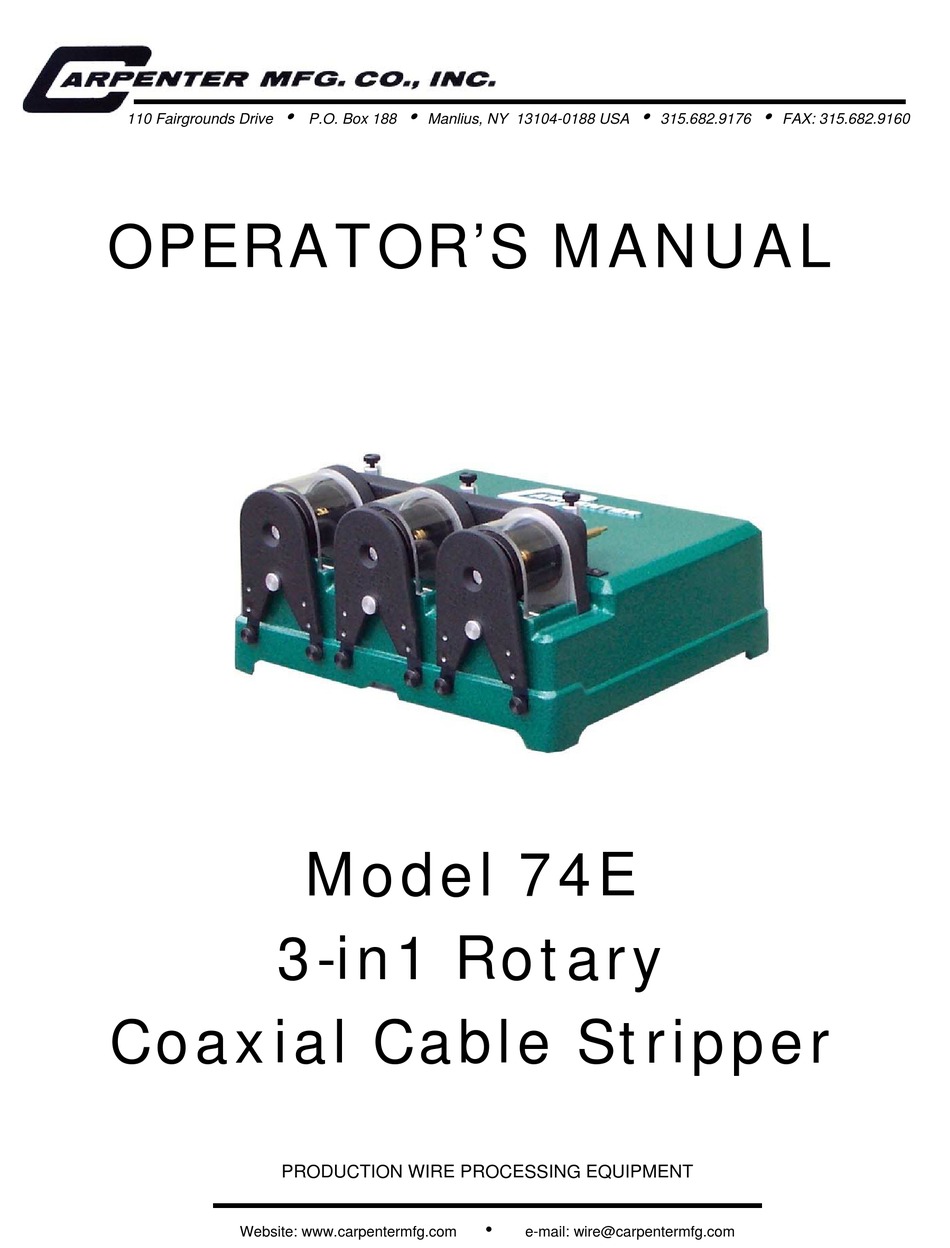

- Page 1 110 Fairgrounds Drive P.O. Box 188 Manlius, NY 13104-0188 USA 315.682.9176 FAX: 315.682.9160 OPERATOR’S MANUAL Model 74E 3-in1 Rotary Coaxial Cable Stripper PRODUCTION WIRE PROCESSING EQUIPMENT Website: www.carpentermfg.com e-mail: wire@carpentermfg.com...
- Page 2 Service. Our desire has always been to bring you reliable products. We look forward to a long healthy relationship with you and our company. The Model 74E can process a wide range of wires as referenced on the following page. These processing specifications are based upon the most commonly manufactured wires.
- Page 3 If concealed damage is discovered after unpacking this shipment, you must submit a damaged freight claim with the carrier. Carpenter Mfg. Co., Inc. cannot submit your claim for you. In order for you to collect for concealed damage, the carrier must be notified within 5 days of the date you receive this shipment.
- Page 4 CARPENTER MODEL 74E 3-IN-1 COAXIAL WIRE STRIPPER CAUTION **IMPORTANT** This equipment comes equipped with LEXAN Safety Guards. Do not attempt to defeat the function or purpose of the Safety Guards. Serious injury to the operators’ eyes, fingers or other body parts may result from attempts to operate this equipment without the Safety Guards installed.
- Page 5 CARPENTER MODEL 74E 3-IN-1 COAXIAL WIRE STRIPPER CARPENTER MODEL 74E 3-IN-1 COAXIAL WIRE STRIPPER Page Phone: 315-682-9176 Fax: 315-682-9160 Website: www.carpentermfg.com E-mail: wire@carpentermfg.com Revised 2/17/10...
- Page 6 APPLICATION The Model 74E Coaxial Wire Stripper is designed to strip coax as well as hook-up wire up to .265” (6.7mm) overall O.D. The Model 74E may be equipped with any combination of interchangeable Single or Twin Blade Face Plate Assemblies.
- Page 7 CARPENTER MODEL 74E 3-IN-1 COAXIAL WIRE STRIPPER OPERATION cont. CIRCUIT BREAKER ACCUMULATOR ARM WEIGHT KIT (OPTIONAL) BELT CHANGE #8447 Feed Belt Pair #5467 Guard #3877 Thumb Screw - 2pcs. #5464 E-Clip - 2pcs. w/Washers #5451 Screw - 6 pcs. w/Washers #8514 Belt Guide - 2pcs.
- Page 8 Repairs or adjustments to equipment under warranty can be performed at our factory or at the customer location, at the option of Carpenter Mfg. Co., Inc. In most cases a 1-2 day turn around time will be necessary to repair equipment at our facility.
