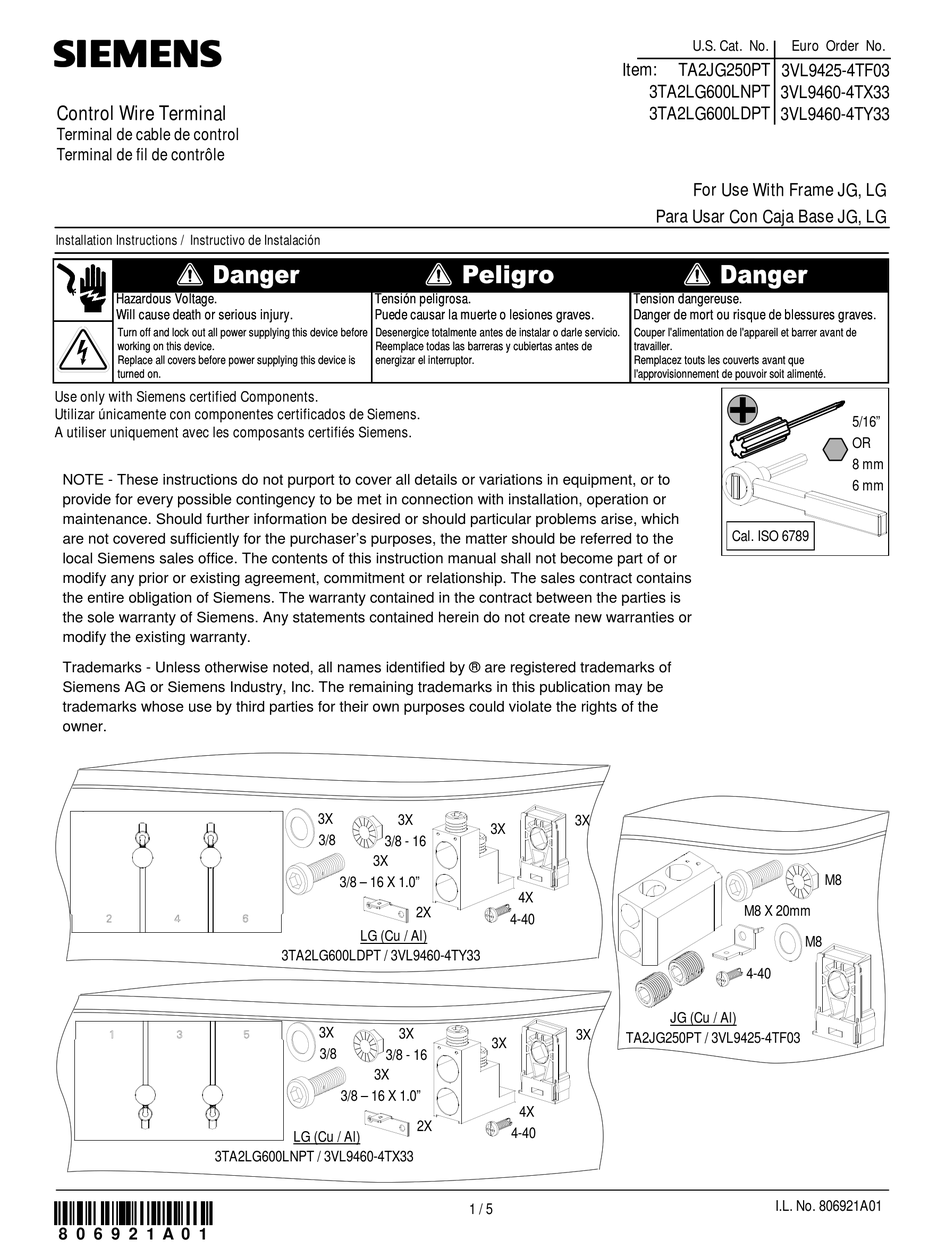

Siemens TA2JG250PT Manual

s
Control Wire Terminal
Terminal de cable de control
Terminal de fil de contrôle
Installation Instructions / Instructivo de Instalación
Hazardous Voltage. Hazardous Voltage.
Will cause death or serious injury. Will cause death or serious injury.
Turn off and lock out all power supplying this device before Turn off and lock out all power supplying this device before
working on this device. working on this device.
Replace all covers before power supplying this device is Replace all covers before power supplying this device is
turned on. turned on.
Use only with Siemens certified Components.
Utilizar únicamente con componentes certificados de Siemens.
A utiliser uniquement avec les composants certifiés Siemens.
NOTE - These instructions do not purport to cover all details or variations in equipment, or to
provide for every possible contingency to be met in connection with installation, operation or
maintenance. Should further information be desired or should particular problems arise, which
are not covered sufficiently for the purchaser's purposes, the matter should be referred to the
local Siemens sales office. The contents of this instruction manual shall not become part of or
modify any prior or existing agreement, commitment or relationship. The sales contract contains
the entire obligation of Siemens. The warranty contained in the contract between the parties is
the sole warranty of Siemens. Any statements contained herein do not create new warranties or
modify the existing warranty.
Trademarks - Unless otherwise noted, all names identified by ® are registered trademarks of
Siemens AG or Siemens Industry, Inc. The remaining trademarks in this publication may be
trademarks whose use by third parties for their own purposes could violate the rights of the
owner.
3TA2LG600LNPT / 3VL9460-4TX33
8 0 6 9 2 1 A 0 1
Tensión peligrosa. Tensión peligrosa.
Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves.
Desenergice totalmente antes de instalar o darle servicio. Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de Reemplace todas las barreras y cubiertas antes de
energizar el interruptor. energizar el interruptor.
3X
3X
3/8
3/8 - 16
3X
3/8 – 16 X 1.0"
2X
LG (Cu / Al)
3TA2LG600LDPT / 3VL9460-4TY33
3X
3X
3/8
3/8 - 16
3X
3/8 – 16 X 1.0"
2X
LG (Cu / Al)
Item:
Tension dangereuse. Tension dangereuse.
Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
Couper l'alimentation de l'appareil et barrer avant de Couper l'alimentation de l'appareil et barrer avant de
travailler. travailler.
Remplacez touts les couverts avant que Remplacez touts les couverts avant que
l'approvisionnement de pouvoir soit alimenté. l'approvisionnement de pouvoir soit alimenté.
3X
3X
4X
4-40
3X
TA2JG250PT / 3VL9425-4TF03
3X
4X
4-40
1 / 5
U.S. Cat. No. Euro Order No.
TA2JG250PT
3VL9425-4TF03
3TA2LG600LNPT
3VL9460-4TX33
3TA2LG600LDPT
3VL9460-4TY33
For Use With Frame JG, LG
Para Usar Con Caja Base JG, LG
Cal. ISO 6789
M8
M8 X 20mm
M8
4-40
JG (Cu / Al)
I.L. No. 806921A01
5/16"
OR
8 mm
6 mm
