PRO DUCT NO.
FEB798CCSH
FEB798CCBH
WIRING DI A GRAM # - 318046110
OWNER'S GUIDE # - 318200914
IN STAL LA TION INSTR. # - 318064300
TIMER IN STRUC TION GUIDE # - 318200130
FRIGIDAIRE HOME PROD UCTS
7075 ORDAN DRIVE
MISSISSAUGA, ON TARIO
CANADA, L5T 1K6
TEL: (905) 565-9200
FAC TORY PARTS CAT A LOG
UPPER OVEN
LOWER OVEN
CONV
CONV
BAKE/R OAS T
BAKE
BR OIL
BAKE/R OAST
BAKE
BROIL
OVEN LIGHT
BAKE
UPPER O VEN
S T OP
TIMER
LO WER O VEN
BAKE
TIME
CLEAN
CANCEL
TIME
ON/OFF
C LOC K
TIME
CLEAN
CANCEL
SELF-CLEANING CONVECTION O VENS
DUAL RADIANT BAKING AND ROASTING
FAC TORY NO.
COLOR
37054791F5018
WHITE
37054791F5068
BLACK
Pub li ca tion No.
5995320396
990329
-EN/SER VICE
377

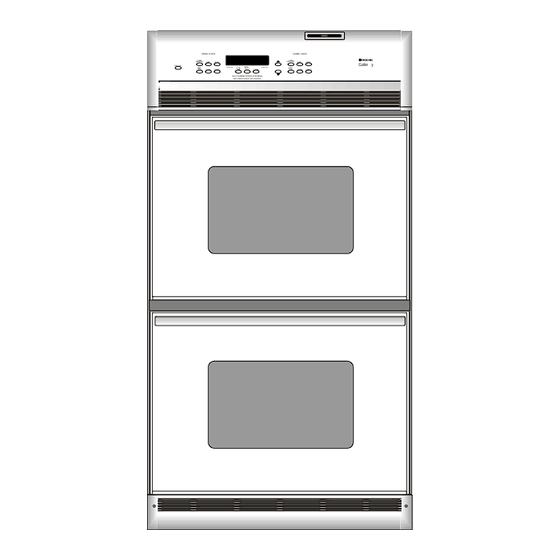

ELEC TRIC WALL OVEN
Galler y
MARKET
U.S.A.
U.S.A.
ELEC TRIC WALL OVEN
©1999 White Con sol i dated In dus tries, Inc.
All rights re served
Model No.
FEB798CC
Advertisement
Related Manuals for Frigidaire FEB798CC
Summary of Contents for Frigidaire FEB798CC
- Page 1 WIRING DI A GRAM # - 318046110 OWNER’S GUIDE # - 318200914 IN STAL LA TION INSTR. # - 318064300 TIMER IN STRUC TION GUIDE # - 318200130 FRIGIDAIRE HOME PROD UCTS 7075 ORDAN DRIVE MISSISSAUGA, ON TARIO CANADA, L5T 1K6...
-
Page 2: Control Panel
Pub li ca tion No. FEB798CC 5995320396 CON TROL PANEL LA9923G14 03/99... - Page 3 A = FEB798CC (FEB798CCSH) B = FEB798CC (FEB798CCBH) POS. NO 20 # # = Func tional Part * = Non-Illustrated Part FEB798CC CON TROL PANEL PART NO DE SCRIP TION 5303302286 Sup port backguard RH 5303302287 Sup port backguard LH...
- Page 4 FEB798CC Pub li ca tion No. 5995320396 CAVITY / EL E MENTS (UPPER) UPPER BODY PARTS ONLY LA9923V19 03/99...
- Page 5 A = FEB798CC (FEB798CCSH) B = FEB798CC (FEB798CCBH) POS. NO 119# 125# # = Func tional Part * = Non-Illustrated Part FEB798CC CAVITY / EL E MENTS (UPPER) PART NO DE SCRIP TION 318071000 Rear panel box 318070200 Shield-oven top...
- Page 6 Pub li ca tion No. 5995320396 LOWER BODY PARTS ONLY 03/99 FEB798CC CAVITY/EL E MENTS (LOWER) LA9923V20...
- Page 7 A = FEB798CC (FEB798CCSH) B = FEB798CC (FEB798CCBH) POS. NO 119# 125# # = Func tional Part * = Non-Illustrated Part FEB798CC CAVITY/EL E MENTS (LOWER) PART NO DE SCRIP TION 5303299719 Rack-oven 318025202 Shelf-oven 318089910 Switch-light 5308011085 Socket-light/lamp 3201908...
- Page 8 Pub li ca tion No. FEB798CC 5995320396 DOOR LA9923CD02 03/99...
- Page 9 A = FEB798CC (FEB798CCSH) B = FEB798CC (FEB798CCBH) POS. NO # = Func tional Part * = Non-Illustrated Part FEB798CC DOOR PART NO DE SCRIP TION 318026110 Trim-oven door white 318026600 Trim-oven door black 318051601 Glass-oven door, white 318051600 Glass-oven door, black...
- Page 10 Pub li ca tion No. FEB798CC 5995320396 WIRING DIAGRAM 03/99...
