Summary of Contents for Fagron InvoMatic

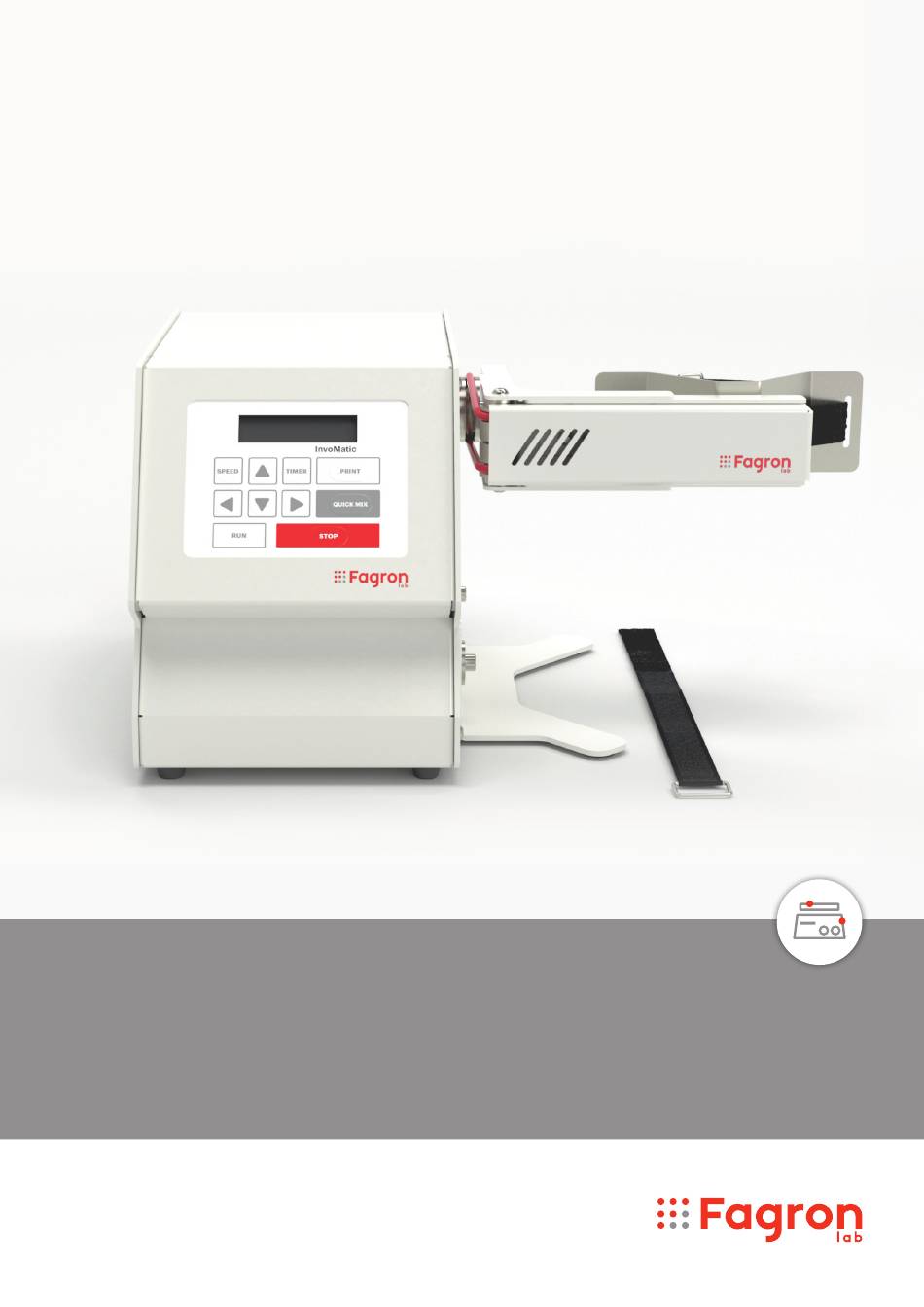

- Page 1 InvoMatic User Manual www.fagronlab.com...
-
Page 3: Table Of Contents
Contents 1. Performance and Main Features 2. Applications 3. Technical Parameter 3.1 Specifications 3.2 Operating Conditions 4. Functions and Use Assembling the inversion arm 4.2 Setting Speed 4.3 Setting Timer 4.4 Running Mixer 4.5 Stopping/Pausing Mixer 4.6 Quick Mix 4.7 Printing 4.8 Setting Time &... -
Page 4: Performance And Main Features
InvoMatic is an automated mixing system developed to produce highly homogeneous mixtures at controlled time and speed. InvoMatic works in a 3-axis movement, combining the principles of the oloid and inversion mixing, creat- ing a unique 3D-movement cycle, that allows a complete diff usive mix. Also, it is equipped with a digital system that... -
Page 5: Technical Parameter
3. Technical Parameter 3.1 Speci�ications Model InvoMatic Electrical requirements 100 – 240V, 50 – 60Hz Noise level 55 dB Weight (empty) 10.0 kg 3.2 Operating Conditions Location Indoor use only Altitude Up to 10.000 ft (3.048 m) Ambient temperature 32ºF to 104ºF (0ºC to 40ºC) 10% - 90% RH @ 32ºF to 104ºF... -
Page 6: Setting Speed
4.2 Setting Speed Connect power supply cord Turn the power switch located on the Press the "STOP" button twice. on appropriate outlet. rear of the device to the "ON" position. Press the "SPEED" button, Adjust the speed by using the "UP" Once the desired speed is set, press the display will flash. -
Page 7: Running Mixer
4.4 Running Mixer After setting the desired speed The display will show the speed, When the time has elapsed, the mixer and time, press the "RUN" button. time remaining, and original will stop and a buzzer will sound. The mixer will begin to rotate. time setting. -
Page 8: Printing
4.7 Printing InvoMatic is equipped with a Serial Set up the printer according to the After finishing the mixing cycle, allow RS232 port, suitable for diff erent manufacturer's instructions. the mixer to be stationary for a minimum models of thermal printers. -
Page 9: Mixing Volumes
4.9 Mixing volumes The velcro can hold vessels from 30 mL up to 1.000 mL. 100% Do not fill the vessel with more than 70% of the total capacity, to allow space for the content to move during mixing. -
Page 10: Attention
• Keep hair tight and avoid loose clothing when operating the device. • Place InvoMatic on a flat surface, allowing 10 cm of clearance on all sides of it. • Don’t operate the device with a wet or damp hand, or on wet or dump surfaces. -
Page 11: Warranty
7. Transportation and Storage InvoMatic weighs approximately 10 kg and should only be stored on flat, leveled surfaces capable of supporting the weight of the device. Transporting the device should avoid collision. NOTE: Do not store InvoMatic in wet or extremely damp locations. - Page 12 Together we create the future of personalizing medicine. Fagron BV Lichtenauerlaan 182 T +31 88 33 11 288 3062 ME Rotterdam F +31 88 33 11 210 The Netherlands www.fagronlab.com...
