Associated Electrics RB10 Manual & Catalog

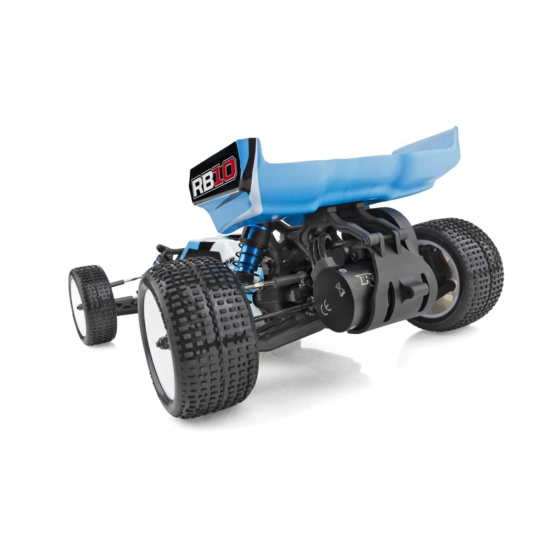

1:10 scale ready-to-run swd electric off road buggy
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB10 and is the answer not in the manual?

Questions and answers

Related Manuals for Associated Electrics RB10

Summary of Contents for Associated Electrics RB10

  • Page 2 • Calipers or a Precision Ruler • Reamer / Hole Punch (AE #1499) • Ride Height Gauge • Turnbuckle Wrench (AE #1114) • Needle Nose Pliers Associated Electrics, Inc. Customer Service 21062 Bake Parkway. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 3 :: Hardware - 1:1 Scale View Button Head (bhcs) Flat Head (fhcs) Ball Bearings 2x3mm (31509) 3x8mm (25201) 3x7x3mm (91475) 2x4mm (31510) Aluminum (8545) 3x10mm (25202) 5x10x4mm (25237) 2.5x8mm (31521) 3x12mm (25203) 2.5x10mm (31522) 6x13x5 (91562) 3x5mm (31530) 3x14mm (89208) 3x8mm (31532) 3x16mm (25204) 3x10mm (25211)
  • Page 4 This symbol indicates a Racers Tip. until you find the exact size. Each part in the foldout has a number assigned to it for ordering replacement parts. Associated Electrics, Inc. Customer Service 21062 Bake Parkway. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 5 4/21 :: Quick Start Guide Battery Charging Steps and Safety: Remove the battery from the vehicle before charging. Place battery on a fire resistant surface. Avoid any contact with water or other liquids. Be sure to select the correct charging mode for the type of battery you are charging.
  • Page 6 :: Quick Start Guide - (cont.) Battery Notes and Tip: Connect the battery as shown. Disconnect the battery when not in use! LiPo: LiPo batteries (lithium polymer) are high current rechargeable batteries. LiPo batteries offer extended run time and peak performance over NiMH batteries. They require a peak detection charger designed specifically for LiPo batteries.
  • Page 7 :: Quick Start Guide - (cont.) Radio System Tuning and Controls: DO NOT hold the trigger when turning on the radio. If using optional battery for transmitter, be sure to plug it in correctly. Plugging in a battery backwards can cause damage.
  • Page 8 :: Front Top Plate and Steering Build - Step 1 91475 91047 91047 3 x 7 x 3 Heavy-duty Heavy-duty Ball Bearing Ballstud, Ballstud, 91391 Steering Bellcrank 91391 Brace Steering Rack 89202 M3 x 12mm Note orientation BHCS of steering rack. 91391 Steering Rack Crush...
  • Page 9 :: Front Suspension Build - Step 1 (Threadlock 91047 Not Included!) Heavy-duty 31530 91048 Ballstud, M3 x 5mm 91402 Heavy-duty Caster BHCS Ballstud, Block 91417 Bushing Steering Block 25237 5 x 10 x 4 91417 Bearing Caster Block 25215 71188 M3 Locknut, SR10 Front black...
  • Page 10 :: Front Suspension Build - Step 4 72022 RB10 Bumper 89202 M3 x 12mm 89208 BHCS M3 x 14mm FHCS :: Rear Suspension Build - Step 1 31521 71068 M2.5 x 8mm Rear Arms BHCS 91359 C Mount 91359 D Mount...
  • Page 11 :: Rear Suspension Build - Step 3 25211 89204 25187 M3 x 10mm M3 x 24mm M3 x 14mm BHCS BHCS BHCS 72022 RB10 Rear Body 91477 Mount M3 Nut (Black) 71093 SR10 Rear Shock Tower 25201 M3 x 8mm...

  • Page 12: Gearbox Build - Step

    :: Gear Diff Build - Step 3 31350 M2.5 x 10mm FHCS 91463 Gear Diff Gasket * Ensure free outdrive rotation before installation! :: Gearbox Build - Step 1 91430 Gearbox 91466 (right & left) Idler Gear 91563 10 x 15 x 4, Bearing 91132 Idler Gear...

  • Page 13: Table Of Contents

    :: Gearbox Build - Step 3 91478 71038 M3 x 30mm Body Mount FHCS Brace (Left & Right) 71038 91428 91428 Rear Bumper Motor Plate, Motor Plate, 25202 25202 x3 Spacer Blue M3 x 10mm FHCS :: Slipper Build - Step 1 9611 9611 Slipper...

  • Page 14: Gearbox Install - Step

    :: Gearbox Install - Step 2 25211 M3 x 10mm BHCS 25204 M3 x 16mm FHCS 25203 M3 x 12mm FHCS :: Rear Hub and CVA Build - Step 1 91563 10 x 15 x 4 91438 Bearing 91418 Rear Hub Coupler 91439 CVA Bone,...
  • Page 15 :: Turnbuckles Build - Step 1 91469 91469 91723 Ball Cup Ball Cup Turnbuckles, 3x48mm 3x48mm Steering Turnbuckle 28.00mm Racers Tip: Racers Tip: Orient the notch Orient the notch Use black grease Use black grease to the left throughout the to the left throughout the (#6588) on the car.
  • Page 16 :: Shocks Build - Step 1 91444 6299 6299 12mm 1/8 E-Clip 1/8 E-Clip Shock Piston 2x1.6mm 91488 3 x 21 Shock Shaft (front) 91489 3 x 27.5 Racers Tip: Shock Shaft (rear) Use a marker over the numbers on the pistons to make them easily visible! :: Shocks Build - Step 2 71191...
  • Page 17 :: Shocks Build - Step 4 71054 Spring Clips 71054 Spring Spring Retainer Clips 91831 91454 Front Shock Spring Spring (44mm), White (3.40lb) Front Rear 91838 Shocks Shocks 2mm x1 3mm x1 Rear Shock 5mm x1 Spring (61mm), White (1.90lb) Build x2 front and x2 rear shocks :: Shocks Build - Step 5 25612...
  • Page 18 :: Electronics Build - Step 2 91391 Servo Mount 31532 7337 M3 x 8mm 25201 .250x.125x.015 BHCS M3 x 8mm Washer FHCS :: Electronics Build - Step 3 Motor 31530 M3 x 5mm BHCS 25225 M3 x 3mm 1336 Set Screw Pinion Gear, 18T, 48P 31532...
  • Page 19 :: Electronics Build - Step 5 25225 6338 25211 M3 x 3mm Antenna M3 x 10mm 71023 Set Screw BHCS Tube & Cap Receiver Box Plug and Grommet 25211 71023 M3 x 10mm 71026 Receiver BHCS Receiver Box Seal Receiver 71026 Receiver Box Lid...
  • Page 20 :: Tires and Body Build - Step 2 72015 21173 21173 RB10 RTR Small Small Body, Body Clips Body Clips Clear 72016 RB10 RTR Wing, Clear 72016 RB10 RTR Foam Wing Shim 91738 91738 M4 Locknut, M4 Locknut, M4 Locknut,...
  • Page 21 Ackermann is the angle difference between the front wheels when they are turned to steer the car. For minimal tire slip, it is standard for the inside wheel to steer to a greater angle than the outside wheel. The RB10 allows Ackermann adjustments by changing the washer thickness used behind the steering rack ballstuds.
  • Page 22 :: Shock Springs - Front :: Shocks 91328 V1 Front Shock Spring, White 3.30lbs 5407 Red O-Rings 91329 V1 Front Shock Spring, Gray 3.45lbs 6299 E-Clip 91830 Front Shock Spring, Green 3.10lbs 31327 FT VCS3 Shock Bottom Caps & O-rings 91831 Front Shock Spring, White 3.40lbs - Kit 71051...

  • Page 23: Slipper Pad

    :: Transmission 7337 .250x.125x.015” Washer 25202 M3 x 10mm FHCS 31532 25203 M3 x 12mm FHCS 7337 25211 M3 x 10mm BHCS 31532 25202 25237 Bearing, 5 x 10 x 4 31532 M3 x 8mm BHCS 91428 89203 M3 x 16mm BHC 91132 4x4 Idler Gear Shaft 91428...
  • Page 24 :: Optional Ball Differential 6573 Diff Thrust Washer & Bolt 6574 Precision Diff Thrust Balls, 5/64” 8680 6575 6575 Locking T-Nut, Diff Thrust Bolt, & Cover 6582 6581 3/32” Carbide Diff Balls 7666 6582 Diff Thrust Spring 7666 Diff Drive Rings, 2.60:1 91420 7677 Ball Diff Rebuild Kit...
  • Page 25 Steering Block, Hex :: Front Arm 25189 M3 x 22mm BHCS 25215 M3 Locknut, Black 25237 Bearing, 5 x 10 x 4 91417 31510 M2 x 4mm BHCS 89202 31530 M3 x 5mm BHCS 71068 Suspension Arm Set 71188 SR10 Front Axle, 4.5mm 89202 M3 x 12mm BHCS 91048...
  • Page 26 M3 x 10mm BHCS 25612 M3 Locknut, with Flange 71038 Rear Body Mounts 71093 SR10 Shock Tower Set 72016 RB10 RTR Foam Wing Shim 72022 RB10 Rear Body Mount 72016 89204 M3 x 24mm BHCS 91444 Shock Bushing Composite 71038...
  • Page 27 72019 RB10 Rear Wheels w/Tires, Mounted :: Body and Decals 21173 Body Clips 72015 RB10 Body and Wing, Clear 72016 RB10 Wing, Clear 72017 RB10 RTR Body and Wing, Painted, Blue 72020 RB10 RTR Body and Wing, Painted, Red 72018...
  • Page 28 :: Factory Team and Option Parts :: Lubes & Adhesives / Misc. 1409 FT Ti Turnbuckle, 1”/25.5mm 1105 FT Green Slime Shock Lube 1736 FT Blue Body Clip, short 1596 FT Locking Adhesive 7495 Vented V2 Slipper Hubs 1597 FT Tire Adhesive 25392 FT Locknuts, 3mm Aluminum, Blue 6588...
  • Page 29 RS3005A Digital HV Aluminum Brushless Servo current products, new releases, setup help, tips, and racing info! 27119 RT1705A Digital HV Aluminum Brushless LP Servo 27121 RT2207A Gear Set Associated Electrics, Inc. 21062 Bake Parkway 27128 RT1408 Gear Set 27129 0712MG Servo Gear Set...
