Associated Electrics 7058 Assembly Manual

Associated Electrics 7058 Assembly Manual

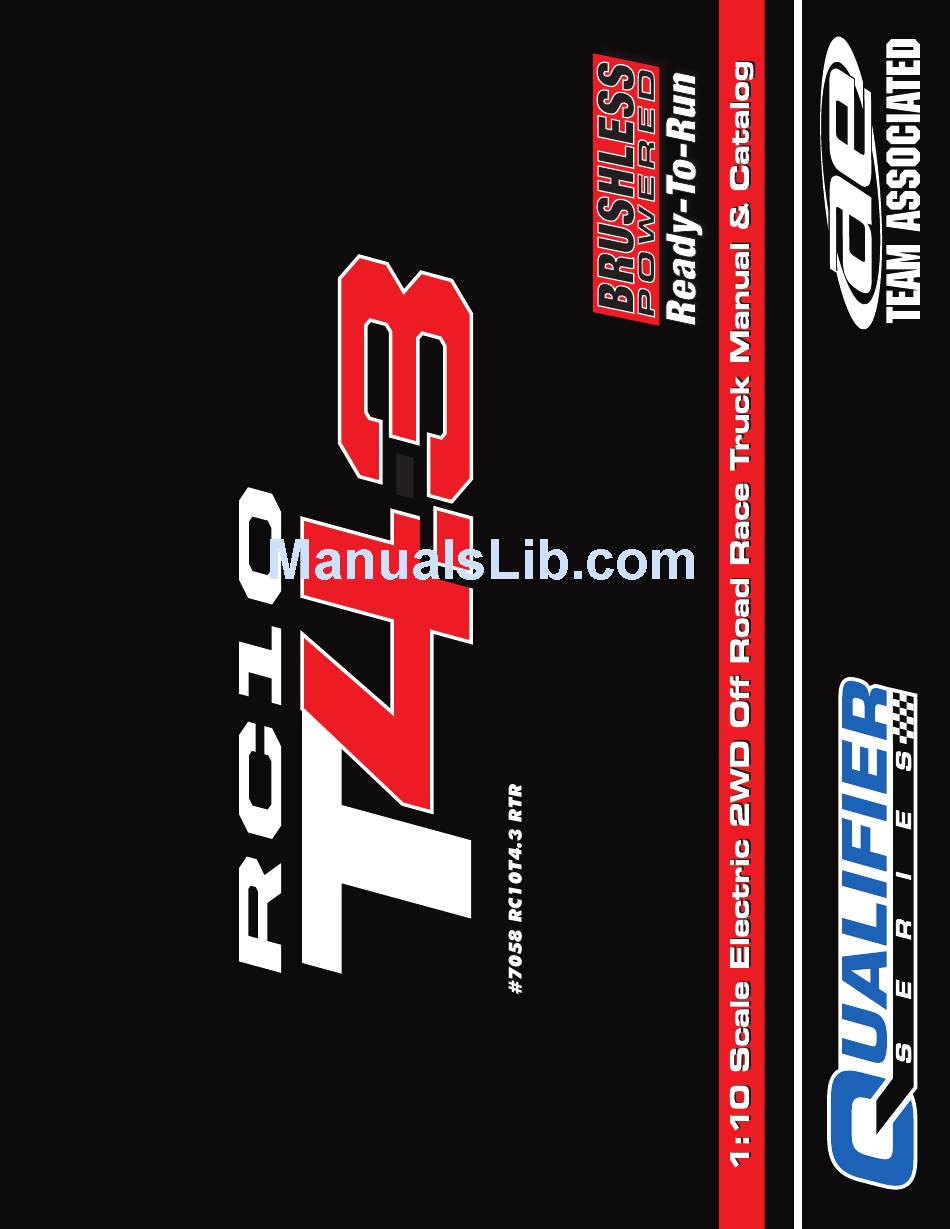

Rc10 t4.3 1:10 scale electronic 2wd off road race truck
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7058 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Electrics 7058

Summary of Contents for Associated Electrics 7058

  • Page 2: Introduction

    • Needle Nose Pliers • Multi Tool (AE Part #7494) • Soldering Iron • Calipers or a Precision Ruler • Green Slime shock lube (AE Part # 1105) Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...

  • Page 3: Table Of Contents

    Each part in the foldout This symbols indicates a has a number assigned to it for ordering special note or instruction replacement parts. in the manual. Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...

  • Page 4: Cover

    :: Steering Build - Step 1 9610 9610 Servo saver Servo saver bolt bolt 9610 9610 Remove bolt and Servo saver washer, continue Servo saver assembly per washer washer instructions. (upper) (upper) 9659 9659 * With supplied wrench, tighten servo sacer bolt completely, until it Servo saver Servo saver hits bottom.

  • Page 5: Front Suspension Build

    :: Steering Build - Step 4 6925 9566 4-40 x 1/2 Top plate shcs 3856 Steering rack bushing 9563 9659 Front Steering bulkhead brace 9640 Steering 9640 bolt 7440 6915 Steering (right) 4-40 x 5/8 bolt chassis Do not overtighten steering fhcs (left) bolts.
  • Page 6 :: Front Suspension Build - Step 3 7260 4-40 3983 small Ballstud plain nut .30 short (black) 9580 Caster 9645 block 25˚ 9622 6272 2-56 x 1/8 (left, right) Kingpin Foam bhcs dust Build left and cover right sides! :: Front Suspension Build - Step 4 7446 T4 a-arms, 4334...

  • Page 7: Transmission Build

    :: Front Suspension Build - Step 6 6924 4-40x3/8 shcs :: Front Suspension Build - Step 7 Front Camber Turnbuckle 1.93” (49.25mm) 7253 7230 2.62” ball cup turnbuckle (large) Steering Turnbuckle Orient the notch Orient the notch 2.13” (54.3mm) to the left to the left throughout the throughout the...
  • Page 8 :: Transmission Build - Step 2 9888 9829 9830 9828 0.5mm gear Sun gear 2x8mm Diff gear diff shim round end 52T, 48P 9831 4.7x1.42mm o-ring Align pin with groove in sun gear :: Transmission Build - Step 3 9829 4675 9829 Planet gear...
  • Page 9 :: Transmission Build - Step 5 6919 4-40 x 5/16 bhcs 9819 Motor guard 6928 6925 4-40 x 1 4-40 x 1/2 shcs shcs :: Transmission Build - Step 6 9587 Wing mounts (1 left, 1 right) 6913 4-40x1 1/4 shcs 9600 Motor plate...

  • Page 10: Rear End Build

    :: Rear End Build - Step 1 9621 Hinge pin, 9818 rear inner Rear arm 7448 mount (3+2) Rear T4 a-arms (1 left, 1 right) 9645 9818 2-56x1/8 Rear chassis plate bhcs :: Rear End Build - Step 2 9269 9269 5-40x1/2 5-40x1/2...
  • Page 11 :: Rear End Build - Step 4 9644 9643 5-40x9/16 5-40x7/16 6927 shcs shcs 4-40 x 3/4 shcs 7260 4-40 small plain nut 9824 Rear shock tower :: Rear End Build - Step 5 6922 4-40x1/2 fhcs :: Rear End Build - Step 6 6915 4-40x5/8 6924...

  • Page 12: Rear Hub Build

    :: Rear Hub Build - Step 1 6272 7369 9670 3977 Dust cover 1/16 Rear axle Ball bearing foam universal 3/16 x 3/8 9584 roll pin Rear hub carrier (left, right) 3983 Ballstud 7260 .30 short 4-40 small 7368 (black) plain nut 3/16 axle 7377...

  • Page 13: Shocks Build

    :: Shocks Build - Step 1 6469 6469 Shock Shock Remove 9884 9885 spurs o-ring o-ring V2 RTR V2 RTR rear front shock shock body body 1.02” 1.39” stroke stroke (blue) (blue) Piston 7484 Shock 7484 5407 5407 internal Shock spacer internal o-ring...
  • Page 14 :: Shocks Build - Step 4 6441 * Shock Bleeding Steps: Shock 1. Pull shock shaft down. 2. Fill shock body 3/4 full with silicone fluid. 3. Slowly move the shock shaft up and (molded) down to remove air from under piston. 4.

  • Page 15: Electronics Build

    :: Electronics Build - Step 1 7336 Servo Offset the servo horn by Servo 6272 5-10 degrees mount (approximately one notch) (approximately one notch) Dust cover 3981 foam Ballstud, .20 black, short 6917 7336 Servo 4-40x3/8 spacers 9180 bhcs 7337 Servo See page 19 for correct horn...
  • Page 16 :: Electronics Build - Step 4 9643 5-40 x 7/16 shcs 9877 Receiver See page 20 for (bottom) gear mesh setting instructions! 7460 Gear cover button 7460 6285 Gear cover 4-40x1/4 (black) shcs :: Electronics Build - Step 5 9878 Receiver grommet Install the ESC and servo...
  • Page 17 :: Electronics Build - Step 7 3862 Receiver 6338 5-40 x 1/8 (Rx) Antenna setscrew and cap 6727 Servo 9877 9643 tape Receiver 5-40 x 7/16 box (top) shcs 9878 Speed Control Receiver (ESC) box seal 6727 Servo tape :: Electronics Build - Step 8 7473 Battery strap (w/ foam pad)
  • Page 18 :: Electronics Build - Step 9 To remove your battery pack from the vehicle, twist the thumb knobs to the unlocked position, remove the battery strap, and then remove the battery. When you install the battery, make sure the thumb knobs are locked before operation.

  • Page 19: Servo Chart

    :: Wheels / Tires and Body - Step 3 9587 Wing shims Front :: Wheels / Tires and Body - Step 4 Painting Tips: Body : If you purchased a clear polycarbonate body, you will need to prep the body before you can paint it. Wash the inside thoroughly with warm water and liquid detergent.

  • Page 20: Motor Maintenance

    :: Tuning Tips Tips for Beginners: Before making any changes to the standard setup, make sure you can get around the track without crashing. Changes to your vehicle will not be beneficial if you can’t stay on the track. Your goal is consistent laps. Once you can get around the track consistently, start tuning your vehicle.

  • Page 21: Ride Height

    :: Tuning Tips (cont.) Front Camber Links: Changing the length of the camber link is considered a bigger step than adjusting the ball end height on the tower. Shortening the camber link (or lowering the ball end) will give the front end less roll and quicken steering *Raise or lower the response.
  • Page 22 :: Shocks :: Optional Ball Differential 5407 Red O-Rings 6573 Diff Thrust Washer & Bolt 6299 1/8” E-Clips 6574 Precision Diff Thrust Balls, 5/64” 6441 Shock Cap, Molded 6575 Locking T-Nut, Diff Thrust Bolt, & Cover 6458 Shock Shaft, 1.32” stroke 6581 3/32”...
  • Page 23 :: Gear Differential 9827 Complete Gear Diff 9828 9828 Diff Gear and Cover 9829 9828 9828 9829 Gear Diff Rebuild 9831 9828 9830 Gear Diff Outdrives, Set 9831 Gear Diff O-Ring Set 9829 9832 10x16mm Bearing 9830 9888 0.5mm Gear Diff Shim 9830 9888 9831...
  • Page 24 :: Front Arm 3977 Ball Bearing 3/16” x 3/8” 6272 3983 Ballstud .30” Black (short) 3983 4187 .030 Nylon Washers 4449 4-40 Aluminum Locknut 6272 Foam Ballend Dust Covers 7260 6277 Ballstud .30 Silver (short) 6953 8-32 Low Profile Locknut, steel 7260 4-40 Plain Nut 6272...
  • Page 25 :: Front Shock Tower 6272 Foam Ballend Dust Covers 6295 6277 Ballstud .30 Silver (short) 6473 6332 Body Clips 6472 6927 6472 4-40/5-40 Plastic Nut 6272 6473 Shock Bushing 6472 6924 4-40 x 3/8” SHCS 6277 6927 4-40 x 3/4” SHCS 6332 7439 Front Body Mounts...
  • Page 26 :: Steering 2221 4-40 x 7/16” BHCS 3856 Steering Bushings, Set 6272 Foam Ball end Dust Covers 6276 Ballstud .20” Silver (short) 3856 6925 4-40 x 1/2” SHCS 6925 6925 9566 B4 / T4 Top Plate 6925 9610 Servo Saver / Steering Hardware 9640 B4 / T4 Steering Bolt, left &...
  • Page 27 :: Chassis 3862 5-40 x 1/8” Set Screw 3862 4334 2-56 x 5/16” BHCS 6338 6272 Foam Ballend Dust Cover 6277 Ballstud .30” Silver (long) 6338 Antenna Tube (black) 6915 4-40 x 5/8” FHCS 6338 7440 T4 Chassis, Composite 9269 5-40 x 1/2”...
  • Page 28 :: Factory Team and Option Parts cont. :: Factory Team and Option Parts 1283 FT Ti Turnbuckle Set, T4 91306 27.5X3mm TiN Shock Shaft (rear) 1408 FT Ti Turnbuckle, 2.65” (blue) 91307 35X3mm TiN Shock Shaft (rear) 1409 FT Ti Turnbuckle, 1” (sway bar) (blue) 91308 12MM Shock Pistons, (1.5, 1.6, 1.7) 4 ea.

  • Page 29: Notes

    :: Reedy Electronics :: RePlay Cameras / Kicker Audio 540-SL4 3300kV 4-pole Sensorless Brushless Motor RP005 Replay XD PrimeX Camera System 26169 0712MG 7kg Metal Gear Servo RP021 Replay XD1080 Lens Bezel Kit 26170 1415MG 15kg Metal Gear Servo RP022 Replay XD1080 Clear Lens Cover 27100 RS1206 Digital HV Hi-Speed Competition Servo...

  • Page 30: Notes

    :: Notes :: Contact Information Associated Electrics, Inc. 26021 Commercentre Drive Lake Forest, CA 92630-8853 USA Check out the following web sites for all of our electric kits, current products, new releases, setup help, tips, and racing info! http://www.TeamAssociated.com http://www.RC10.com http://twitter/Team Associated http://bit.ly/AEonFacebook...

  • Page 31: Notes

    Driver: Date: Track: Event: Conditions: Indoor Outdoor Temp. Rev.1 Setup Sheet Front Suspension Rear Suspension Camber: -1 ° Camber: -1 ° Toe: Inner Toe: 0 ° 3 ° Anti-Squat: 2 ° Washers: Washers: Washers: Washers: 1 1 2 2 Chassis Brace Chassis Brace Ride Height: Ride Height:...

  • Page 32: Notes

    :: Hardware - 1:1 Scale View Cap Head (shcs) Flat Head (fhcs) Button Head (bhcs) 2-56x 3/16 (9898) 4-40x3/8 (6292) 2-56x1/8 (9645) 4-40x1/4 (6285) 4-40x1/2 (6922) 2-56x5/16 (4334) 4-40x5/16” (6932) 4-40x5/8 (6915) 4-40x1/4 (6288) (4145, aluminum) 4-40x5/16 (6919) 4-40x3/8 (6924) 5-40x1/2 (9269) w/hole (6929) 4-40x3/8 (6917)

  • Page 33: Notes

    Driver: Date: Track: Event: Conditions: Indoor Outdoor Temp. Rev.1 Setup Sheet Front Suspension Rear Suspension Camber: Camber: Toe: Inner Toe: Anti-Squat: Washers: Washers: Washers: Washers: Chassis Brace Chassis Brace Ride Height: Ground Flat: Ground Flat: Steering Rack: Caster Block Wheelbase: Spacing: Long Forward...
