- Page 1 SIRIUS CAPACITOR MODULE User Manual Model number: 1000-48-B-1C-TM-A-G Version 1.0; Release Date: March 2020 Author: Mamoona Khalid...
- Page 2 The content of this manual shall not be modified without the written authorization of the Company. Trademarks All trademarks are recognized, even if not explicitly identified as such. Kilowatt Labs® is a registered trademark of the Company.
-
Page 3: Table Of Contents
10. Shelf Life ..........................27 11. Maintenance ........................... 27 12. Disposal ........................... 27 Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 4: Safety Instructions
→ Always make sure the chargers are disconnected while working on the Modules. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 5 → In case the Module is physically damaged due to any event, do not install and energize the Module under any circumstances and immediately contact your Reseller. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 6: Module Connection Safety Precautions
Selling and installation of this Module is only through the Company’s Resellers who are trained on installation, operation and maintenance of the Sirius Modules. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 7: Product Introduction

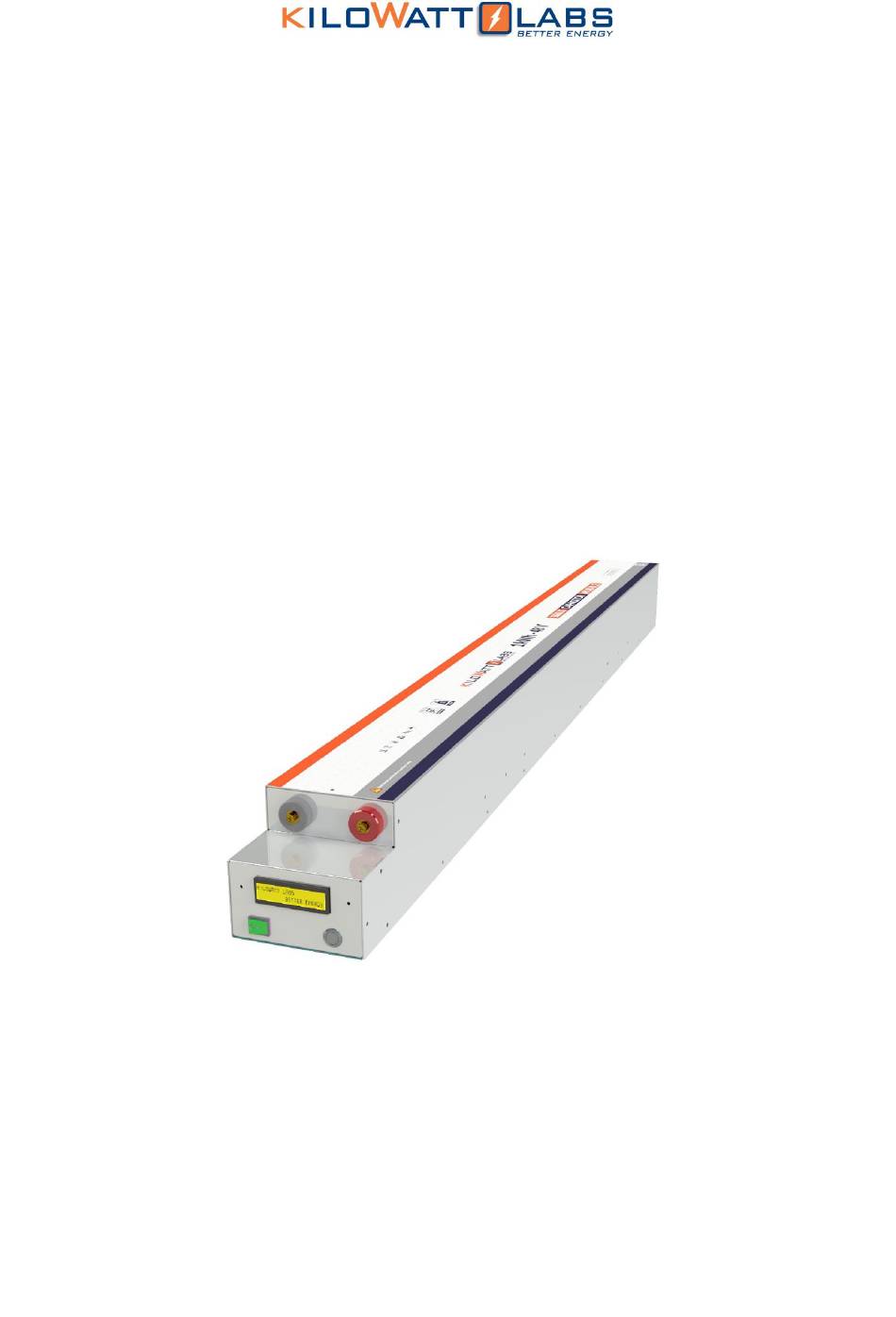

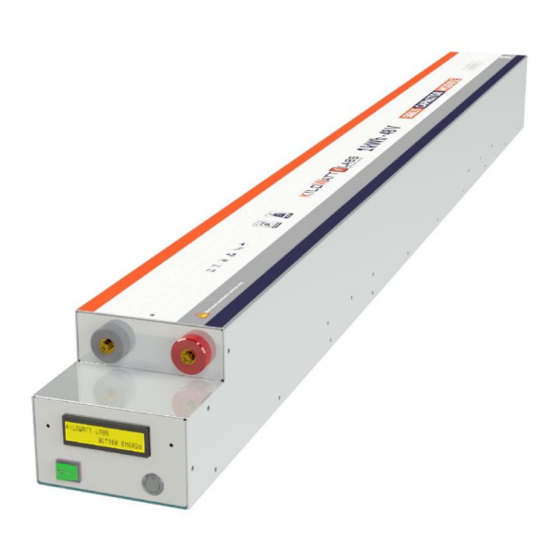

The appearance of the Sirius Capacitor Module is shown below: Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 8: Mechanical Drawings
2.2.2 Mechanical Drawings: Isometric View Front View Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 9: Dimensions And Weight
1. Power Switch 2. LCD 3. Fault Reset 4. Terminals Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 10 → After each 1-second interval, the following two LCD screens rotate with each other. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 11 Never connect the red cable to the negative terminal of Module. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 12: Module Installation
Note! Read the safety Instruction sheet before installation. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 13: Unpacking And Contents Check
1) Sirius Capacitor Module: 1KWh48VDC 2) Bolts × 2 3) Washers × 4 Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 14: Operation Procedures
Self-Powered, resulting in faster Self-Discharge of the Module. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 15: Electrical Installation
Make sure to activate the Module by turning ON the power switch to get the output from the terminal. • Turn ON the Charger. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 16: Connecting Module To Load
Refer to the parallel combination of the Sirius Modules as shown below and make your connections accordingly. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 17: Connecting Modules In Series
Take the Output Negative from first Module and Output Positive from the last Module. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 18 Modules cannot be connected in series-parallel combination under any circumstance. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 19: Recovery Procedure
Do not use more than 10A to recover the Module. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 20: Automatic Safety Alarm
Under- (TERMINAL) & UNDER-VOLTAGE Voltage fault, the buzzer alarms, Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 21 (TERMINAL) & UNDER-VOLTAGE fault, the buzzer alarms, which can Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 22 Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 23 Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 24 LCD will display the (Without Load) following message every seconds. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 25: Trouble Shooting
54V. the fault reset button. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 26 44V. be reset using the fault reset button. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 27: Features
In the eventual event of disposal, please follow all local regulations. Sirius Capacitor Module – User Manual Model Number -1000-48-B-1C-TM-A-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
