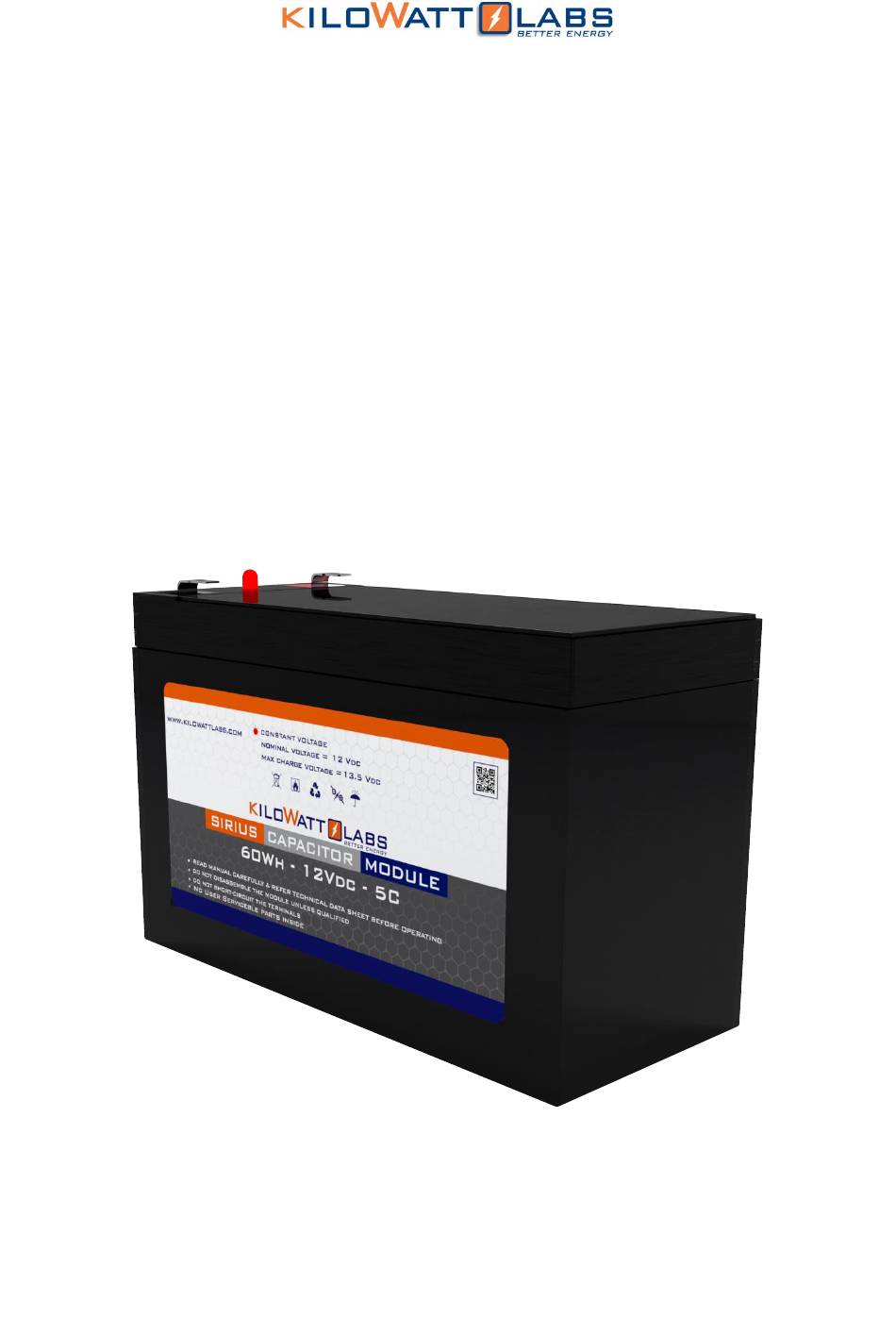

- Page 1 SIRIUS CAPACITOR MODULE User Manual Model Number: 60-12-C-5C-X-SD-X-X-X-G Version 1.0 Release Date: November 2020 Author: Mamoona Khalid...
- Page 2 All trademarks are recognized even if not explicitly identified as such. Kilowatt Labs® is a registered trademark of the Company. Sirius Capacitor Module – User Manual Model Number - 60-12-C-5C-X-SD-X-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 3: Table Of Contents
4.4 Connecting Modules in Parallel: ....................12 4.5 Connecting Modules in Series:....................13 Sirius Capacitor Module – User Manual Model Number - 60-12-C-5C-X-SD-X-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 4: Safety Instructions
→ Always make sure chargers are disconnected while working on Modules. Sirius Capacitor Module – User Manual Model Number - 60-12-C-5C-X-SD-X-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 5 → Do not drop the Module. Internal damage may occur that will not be visible. Sirius Capacitor Module – User Manual Model Number - 60-12-C-5C-X-SD-X-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 6: Modules Connection Safety Precautions
Sirius Modules. Sirius Capacitor Module – User Manual Model Number - 60-12-C-5C-X-SD-X-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 7: Product Introduction

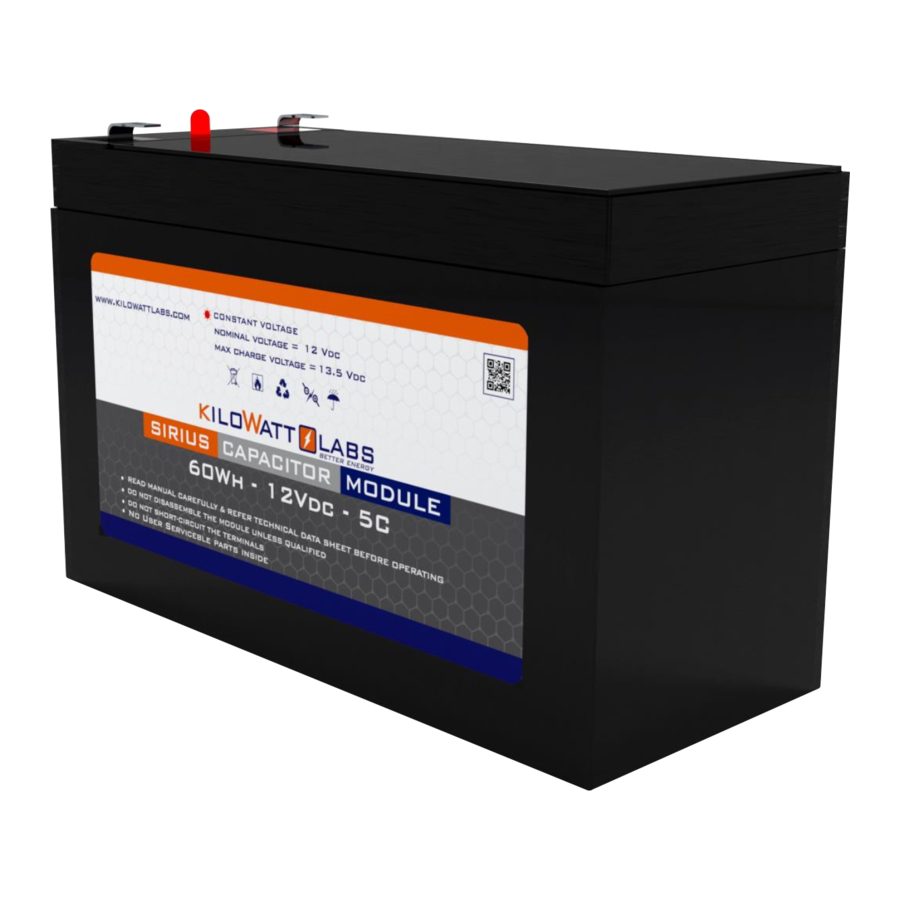

The appearance of the Sirius Module is shown below: Sirius Capacitor Module – User Manual Model Number - 60-12-C-5C-X-SD-X-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 8: Dimensions And Weight
LED – Red LED indicator will be turned ON when the power supply reaches 13.5V while charging the Sirius Module. It will turn OFF automatically when the terminal voltage is lower than 13.5V. LED indicates constant voltage state during charging and not on a full charge state. -
Page 9: Module Installation
Note! Read the safety instruction section before installation. Sirius Capacitor Module – User Manual Model Number - 60-12-C-5C-X-SD-X-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 10: Electrical Installation
2. Set the Charger Voltage to 13.5V (if variable). 3. Turn ON the charger. Sirius Capacitor Module – User Manual Model Number - 60-12-C-5C-X-SD-X-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 11: Connecting Module To Load
Sirius Module respectively. • Turn ON the discharger. Sirius Capacitor Module – User Manual Model Number - 60-12-C-5C-X-SD-X-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 12: Connecting Modules In Parallel
Any number of Modules can be connected in parallel. • Steps to Connect Modules in Parallel: Refer to the parallel combination of the Sirius Modules as shown below and make your connection accordingly. • Connect the positive (+) terminal of all the Modules. -
Page 13: Connecting Modules In Series
A maximum of six (6) Modules can be connected in series. • Steps to Connect Modules in Series: Refer to the series combination of the Sirius Modules as shown below and make your connection accordingly. • Connect the positive (+) terminal of the first Module with the negative (-) terminal of the next Module.
