Step 2: Connecting The Water Hoses*
To Your Water Circulation Pump

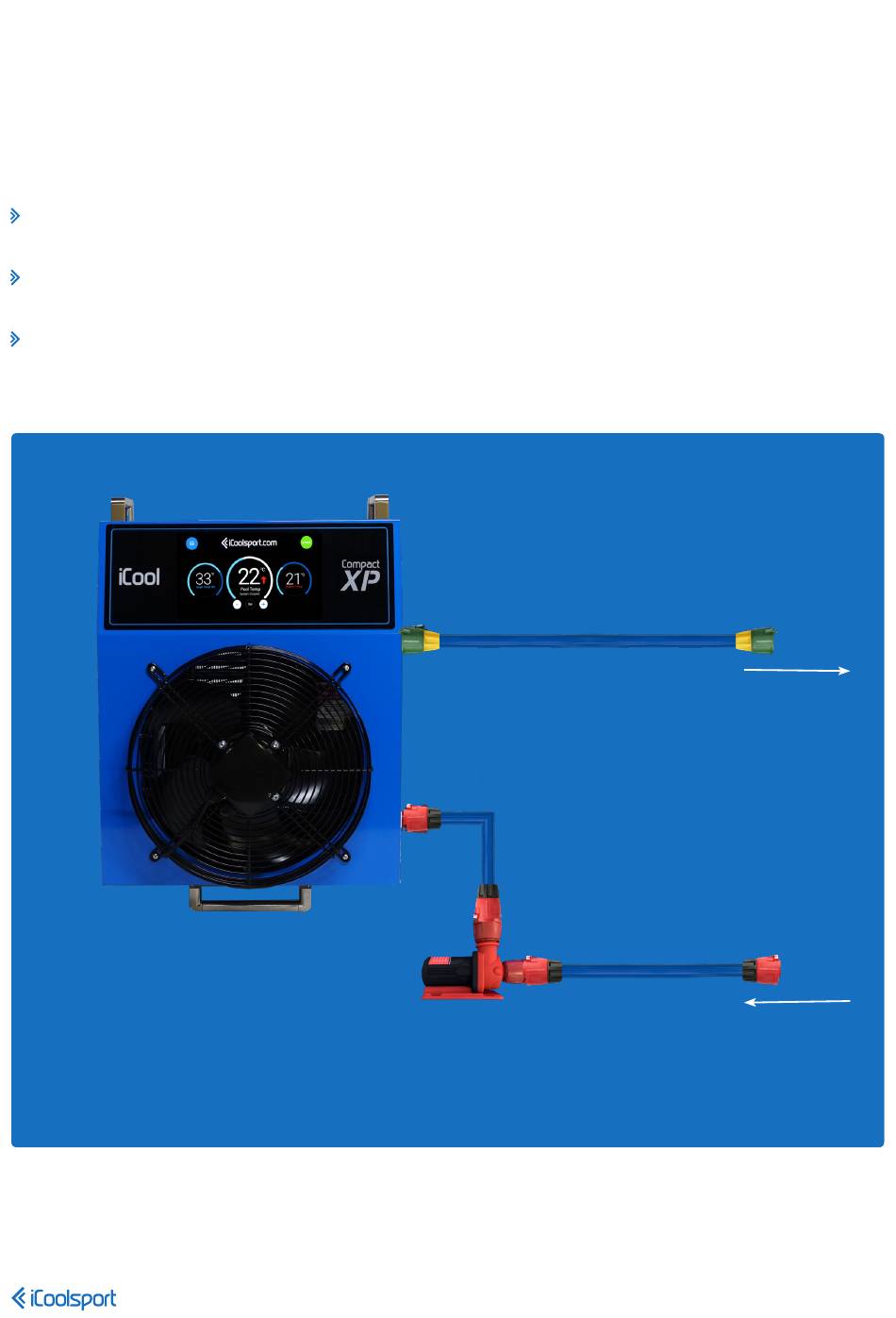

The shorter length of hose with RED connectors, connects between the BOTTOM fitting on the Compact and to the TOP
fitting on your water circulation pump as shown below.
The longer length of hose with RED connectors, connects between the BOTTOM fitting on the pool and the BOTTOM fitting
on your water circulation pump.
The longer length of smaller diameter hose with the GREEN connectors, connects between the TOP fitting on your Compact
and the TOP of your pool.
Note! Your pump may not look exactly like this one, but the connections are
exactly the same no matter which pump was provided.
iCool Compact Series | Owners Manual
*Depending on the model and country of delivery
your hoses and fittings may not be the same as in this
illustration, but the connection and flow direction will
be the same.
FROM the Bottom of your Pool
TO the Top of your Pool
