Summary of Contents for Avigilon NVR4X
- Page 1 User Guide Avigilon NVR4X Workstation NVR4X-WKS-8TB and NVR4X-WKS-4TB...
- Page 2 The absence of the symbols ™ and ® in proximity to each trademark in this document or at all is not a disclaimer of ownership of the related trademark. Avigilon Corporation protects its innovations with patents issued in the United States of America and other jurisdictions worldwide (see avigilon.com/patents).
-
Page 3: Table Of Contents
Back View Package Contents Installation Connecting Cables Logging into Windows 10 for the First Time Activate the ACC Software and Connect to Avigilon Cloud Services Activate ACC Software and Feature Licenses Connect to Avigilon Cloud Services Reactivating a License Troubleshooting Network Configuration... -
Page 4: Introduction
The Avigilon Network Video Recorder (NVR) 4X Workstation is preloaded with Avigilon Control Center (ACC) software and is configured for exceptional performance and reliability. The NVR4X Workstation offered in small form factor can be easily integrated into any existing Avigilon surveillance system or act as the base of a new site. -
Page 5: Overview

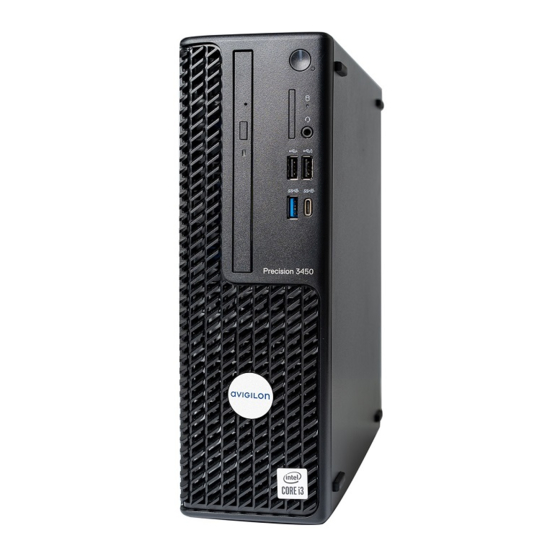

Overview Front View Figure 1: Front view of NVR4X workstation (shown with dust filter accessory) 1. Power button Controls the power supply to the recorder. For more information, see Power Status Indicator on page 13. 2. Optical drive Accepts a CD or DVD. -
Page 6: Back View
Back View Figure 2: Rear view of NVR4X workstation 1. Audio port Accepts a connector to an audio system — line in or line out. 2. DisplayPorts Accepts DisplayPort connectors to display monitors. To ensure optimal performance, use the mDP ports instead of these ports. -
Page 7: Package Contents
9. Power supply connector Accepts a power supply connection. Package Contents Ensure the package contains the following: Avigilon NVR4X Workstation Power cable Keyboard and mouse 2 x mDP to DP adapters 2 x mDP to HDMI adapters Package Contents... -
Page 8: Installation
After the workstation starts, you will need to configure the Windows operating system for the first time. 1. On the first screen, the MICROSOFT SOFTWARE LICENSE TERMS and AVIGILON CONTROL CENTER™ SOFTWARE END USER LICENSE AGREEMENT are displayed. Review the terms and click Accept. -
Page 9: Activate The Acc Software And Connect To Avigilon Cloud Services
ACC software will not support newer features such as facial recognition and the Focus of Attention interface. You are logged in to the Windows environment. The Avigilon Control Center Admin Tool and the ACC Client automatically start up. -
Page 10: Reactivating A License
Troubleshooting Network Configuration By default, the NVR4X Workstation acquires an IP address on the network through DHCP. If you need to set up the workstation to use a static IP address or any specific network configuration, see the Windows Help and Support files for more information. -
Page 11: Monitoring System Health
You can monitor the health of the system components in the Site Health in the ACC Client software. See the Help files provided with the ACC Client software, or the Avigilon ACC Client User Guide available from the Avigilon website for more information. - Page 12 Allow up to half an hour for the recovery to complete. 5. After system reboot, complete the Windows setup process. 6. Navigate to C:\Avigilon\Control Center Installation Files, and run the ACC installer for the version of ACC software in use at your site.
-
Page 13: Led Indicators
The following table describes what the hard drive activity LED indicates: LED Indicator Description Hard drive is not being used. Flashing white Data is being read or written. Limited Warranty Avigilon warranty terms for this product are provided at avigilon.com/warranty. LED Indicators... -
Page 14: For More Information
For More Information For additional product documentation and software and firmware upgrades, visit avigilon.com/support. Technical Support Contact Avigilon Technical Support at avigilon.com/contact. For More Information...
