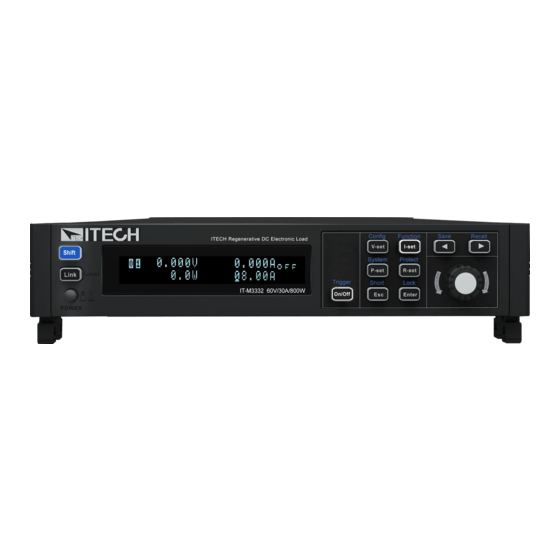

Summary of Contents for ITech IT-M3300 Series
- Page 1 Regenerative DC Electronic Load IT-M3300 Series Programing Guide Model: IT-M3300 Series Version: V1.0 / 07, 2020...
- Page 2 Safety Notices Notices Warranty © Itech Electronic, Co., Ltd. 2020 The materials contained in this No part of this manual may be document are provided “as is” , and reproduced in any form or by any means A CAUTION sign denotes a...
-
Page 3: Warranty
Warranty ITECH warrants that the product will be free from defects in material and workmanship under normal use for a period of one (1) year from the date of delivery (except those described in the Limitation of Warranty below). -
Page 4: Safety Precautions
Failure to comply with these precautions or specific warnings elsewhere in this manual will constitute a default under safety standards of design, manufacture and intended use of the instrument. ITECH assumes no liability for the customer’s failure to comply with these precautions. -
Page 5: Environmental Conditions
The instrument complies with the WEEE Directive (2002/96/EC) marking requirement. This affixed product label indicates that you must not discard the electrical/electronic product in domestic household waste. Copyright © Itech Electronic Co., Ltd. -
Page 6: Waste Electrical And Electronic Equipment (Weee) Directive
With reference to the equipment classifications described in the Annex I of the WEEE Directive, this instrument is classified as a “Monitoring and Control Instrument”. To return this unwanted instrument, contact your nearest ITECH office. Copyright © Itech Electronic Co., Ltd. -
Page 7: Compliance Information
Connection of the instrument to a test object may produce radiations beyond the specified limit. Use high-performance shielded interface cable to ensure conformity with the EMC standards listed above. Safety Standard IEC 61010-1:2010/ EN 61010-1:2010 Copyright © Itech Electronic Co., Ltd. -
Page 8: Table Of Contents
INSTrument[:SELect] <NR1> ............................6 Chapter5 System Commands ......................... 8 SYSTem:BEEPer:IMMediate ............................8 SYSTem:BEEPer[:STATe] <bool> ..........................8 SYSTem:ERRor? ................................9 SYSTem:CLEar ................................9 SYSTem:REMote ............................... 10 SYSTem:LOCal ................................10 SYSTem:RWLock ............................... 10 SYSTem:KEY <n> ............................... 11 Copyright © Itech Electronic Co., Ltd. - Page 9 MEASure[:SCALar]:CAPacity? ........................... 25 FETCh[:SCALar]:CAPacity? ............................25 MEASure[:SCALar]:UUT:TEMPerature? ........................26 FETCh[:SCALar]:UUT:TEMPerature? ......................... 26 MEASure[:SCALar]:RECover:ENERgy? ........................26 FETCh[:SCALar]:RECover:ENERgy? ........................... 26 MEASure[:SCALar]:LOCal:VOLTage? ......................... 27 FETCh[:SCALar]:LOCal:VOLTage? ..........................27 MEASure[:SCALar]:REMote:VOLTage? ........................27 FETCh[:SCALar]:REMote:VOLTage? .......................... 27 MEASure[:SCALar]:AHOur? ............................28 FETCh:AHOur? ................................28 Copyright © Itech Electronic Co., Ltd.
- Page 10 [SOURce:]CURRent[:OVER]:PROTection:STATe <bool> ..................... 43 [SOURce:]CURRent:SLEW[:BOTH] <NRf+> ....................... 43 [SOURce:]CURRent:SLEW:NEGative <NRf+> ......................44 [SOURce:]CURRent:SLEW:POSitive <NRf+> ......................44 [SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude] <NRf+> ................45 [SOURce:]RESistance[:LEVel]:TRIGgered[:AMPLitude] <NRf+> ................45 [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude] <NRf+> ................46 [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] <NRf+>..................46 [SOURce:]VOLTage:UNDer:PROTection[:LEVel] <NRf+> ................... 47 Copyright © Itech Electronic Co., Ltd. viii...
- Page 11 LIST:SAVE <NR1> ..............................64 LIST:RECall <NR1> ..............................64 LIST[:STATe] <bool> ..............................65 [SOURce:]LIST:TERMinate:LAST<bool> ........................65 LIST:PAUSe[:STATe] <BOOLEAN> ..........................66 [SOURce:]LIST:RESet ..............................66 [SOURce:]LIST:RUN:STEP? ............................67 [SOURce:]LIST:RUN:REPeat? ............................ 67 Chapter13 Battery Commands ........................68 BATTery:DISCharge:VOLTage <NRf+> ........................68 Copyright © Itech Electronic Co., Ltd.
- Page 12 *RCL ..................................79 *RST..................................80 *SAV ..................................80 *SRE ..................................81 *STB? ..................................81 *TRG ..................................82 *TST? ..................................82 *WAI ..................................83 *PSC <Bool> ................................83 Chapter16 Error Messages ......................... 85 Error List ................................... 85 Copyright © Itech Electronic Co., Ltd.
-
Page 13: Chapter1 Scpi Introduction
Multiple Commands in a Message Multiple SCPI commands can be combined and sent as a single message with one message terminator. There are two important considerations when sending several commands within a single Copyright © Itech Electronic Co., Ltd. - Page 14 Treat the common command as a message unit by separating it with a semicolon (the message unit separator). Common commands do not affect the header path; you may insert them anywhere in the message. VOLTage:TRIGgered 17.5;:INITialize;*TRG OUTPut OFF;*RCL 2;OUTPut ON Copyright © Itech Electronic Co., Ltd.
-
Page 15: Message Type Of Scpi
Response message: A response message consists of data in a specific SCPI format sent from the instrument to the controller. The instrument sends the message only when commanded by a program message called a "query." The next figure illustrates SCPI message structure: Copyright © Itech Electronic Co., Ltd. - Page 16 (<NL>), decimal 10 or hexadecimal 0X0A in ASCII. ⚫ end or identify (<END>) ⚫ both of the above (<NL><END>). In the examples of this guide, there is an assumed message terminator at the Copyright © Itech Electronic Co., Ltd.
-
Page 17: Response Data Type
Each response is terminated with an LF (line feed) and EOI (end or identify). The following example shows how a multiple response message is terminated: 0; 1; 1; 0; <RMT> Message exchange protocol Two rules summarize the message exchange protocol: Copyright © Itech Electronic Co., Ltd. -
Page 18: Command Format
2, "SOURce2" or "SOUR2" must be used in the program line. Colon (:) It is used to separate key words of a command with the key words in next level. As shown below: APPL:SIN 455E3,1.15,0.0 Copyright © Itech Electronic Co., Ltd. - Page 19 IEEE-488 EOI (End or Identify) information can be used as <NL> character to replace termination command string of <NL> character. It is acceptable to place one <NL> after a <Enter>. Termination of command string always resets current SCPI command path to root level. Copyright © Itech Electronic Co., Ltd.
-
Page 20: Data Type
"0" or "1". Boolean parameter are required by the following commands: DISPlay {OFF|0|ON|1} ⚫ ASCII string parameter String parameter may actually include all ASCII character sets. Character strings must start and end with paired quotation marks; and single Copyright © Itech Electronic Co., Ltd. -
Page 21: Remote Interface Connections
If the user want to change the settings of the instrument, for instance, the output setting value, the command SYST:REM must be sent to the instrument after finishing the connection between the instrument and PC. Copyright © Itech Electronic Co., Ltd. - Page 22 Output is in constant voltage. Output is in constant current. Output is in constant current. The electronic load is in the On_Delay output-on delay. The electronic load is in the Off_Delay output-off delay. 1024 Output is programmed on. Copyright © Itech Electronic Co., Ltd.
- Page 23 Output buffer available. Bit ESB is set to 1 when the status of an enabled standard event status. RQS/MSS Register changes. If the status of enabled operation OPER register changes, then this bit is set to1. Copyright © Itech Electronic Co., Ltd.
-
Page 24: Chapter2 Scpi Status Register
This command can set the parameter of operation event enable register. Setting parameter can determine which bit value of operation event register is 1 and the bit will cause OPER of status byte register to be 1. Syntax STATus:OPERation:ENABle <n> Copyright © Itech Electronic Co., Ltd. -
Page 25: Status:operation:ntransition
STATus:OPERation:NTRansition <n> Arguments <0-65535> Example STAT:OPER:NTR 16 Query syntax STATus:OPERation:NTRansition? Returns STATus:OPERation:PTRansition <n> This command is used to edit the positive transition trigger register of operation event. Syntax STATus:OPERation:PTRansition <n> Arguments <0-65535> Example STAT:OPER:PTR 32 Copyright © Itech Electronic Co., Ltd. -
Page 26: Status:questionable[:Event]
Example STAT:QUES:COND? Returns STATus:QUEStionable:ENABle <n> This command edits the enable register value of query event. In query, the electronic load will return a decimal number representing the binary weighted sum of the enable register. Copyright © Itech Electronic Co., Ltd. -
Page 27: Status:questionable:ntransition
Syntax STATus:QUEStionable:NTRansition <n> Arguments <0-65535> Example STAT:QUES:NTR 64 Query syntax STATus:QUEStionable:NTRansition? Returns STATus:QUEStionable:PTRansition <n> This command is used to edit the positive transition trigger register of query event. Syntax STATus:QUEStionable:PTRansition <n> Arguments <0-65535> Copyright © Itech Electronic Co., Ltd. -
Page 28: Status:preset
This command is used to clear the register status as follows: ⚫ Enable the Questionable status, PTR register and NTR register ⚫ Enable the operation status, PTR register and NTR register Syntax STATus:PRESet Example STAT:PRES Copyright © Itech Electronic Co., Ltd. -
Page 29: Chapter4 Channel Selection Commands
Example CHAN 2 Query syntax CHANnel? Returns INSTrument[:SELect] <NR1> This command selects the channel. The function is the same as the command CHANnel <NR1>. Syntax INSTrument[:SELect] <NR1> Arguments 0-16 Default value Example INST[:SEL] 2 Copyright © Itech Electronic Co., Ltd. - Page 30 Channel Selection Commands Query syntax INSTrument[:SELect]? Returns Copyright © Itech Electronic Co., Ltd.
-
Page 31: Chapter5 System Commands
Example SYST:BEEP:IMM Query syntax None Returns None SYSTem:BEEPer[:STATe] <bool> This command enables or disables the beeper function of the electronic load. Syntax SYSTem:BEEPer[:STATe] <bool> Arguments 0|OFF|1|ON Default value Example SYST:BEEP 1 Query syntax SYSTem:BEEPer[:STATe]? Copyright © Itech Electronic Co., Ltd. -
Page 32: System:error
“ - >” indicates the commands that you send to the instrument. ⚫ “< -” indicates the response from the instrument. Returns AARD SYSTem:CLEar This command clears the system status register. Syntax SYSTem:CLEar Arguments None Example SYST:CLE Query syntax None Returns None Copyright © Itech Electronic Co., Ltd. -
Page 33: System:remote
Query syntax None Returns None SYSTem:RWLock This command locks the electronic load in remote control mode. When this command is executed, pressing the LOCAL button does not switch the instrument to local control mode. Copyright © Itech Electronic Co., Ltd. -
Page 34: System:key
SYSTem:KEY <n> Arguments The definition of keyboard is listed as follows: Arguments keys Arguments keys Link I-set Shift R-set Source Enter Load Left Right V-set Decrease Save Increase On/Off Example SYST:KEY 5 Query syntax SYSTem:KEY? Copyright © Itech Electronic Co., Ltd. -
Page 35: System:communicate:gpib[:Self]:Address
Example SYST:COMM:GPIB:ADDR 14 Query syntax SYSTem:COMMunicate:GPIB[:SELF]:ADDRess? Returns NR1 (0-30) SYSTem:COMMunicate:LAN:CURRent:ADDRess <"addr"> This command sets the IP address of the electronic load. Syntax SYSTem:COMMunicate:LAN:CURRent:ADDRess <"addr"> Arguments Str "<0-255>,<0-255>,<0-255>,<0-255>" Example SYST:COMM:LAN:CURR:ADDR "192.168.0.211" Query syntax SYSTem:COMMunicate:LAN:CURRent:ADDRess? Returns Copyright © Itech Electronic Co., Ltd. -
Page 36: System:communicate:lan:current:dgateway <"Addr
This command sets the subnet mask of the electronic load. Syntax SYSTem:COMMunicate:LAN:CURRent:SMASk <"addr"> Arguments Str "<0-255>,<0-255>,<0-255>,<0-255>" Example SYST:COMM:LAN:CURR:SMAS “255.255.255.0” Query syntax SYSTem:COMMunicate:LAN:CURRent:SMASk? Returns SYSTem:COMMunicate:LAN:DHCP <Bool> This command enables or disables the dynamic IP address function. Copyright © Itech Electronic Co., Ltd. -
Page 37: System:communicate:lan:rawsocket:port
This command sets the socket port for the LAN communication. Syntax SYSTem:COMMunicate:LAN:RAWSocket:PORT <NR1> Arguments <2000-65535> Example SYST:COMM:LAN:RAWS:PORT 30000 Query syntax SYSTem:COMMunicate:LAN:RAWSocket:PORT? Returns SYSTem:COMMunicate:LAN:MACaddress? This command queries the communication MAC address. Syntax SYSTem:COMMunicate:LAN:MACaddress? Arguments None Copyright © Itech Electronic Co., Ltd. -
Page 38: System:communicate:serial:baudrate
This command sets the baud rate of the serial port. Syntax SYSTem:COMMunicate:SERial:BAUDrate Arguments <4800|9600|19200|38400|57600|115200> Example SYST:COMM:SER:BAUD 9600 Query syntax SYSTem:COMMunicate:SERial:BAUDrate? Returns 4800|9600|19200|38400|57600|115200 SYSTem:VERSion? This command queries the SCPI version of the instrument. Syntax SYSTem:VERSion? Arguments None Example SYST:VERS? - > "1993.1" < - Copyright © Itech Electronic Co., Ltd. -
Page 39: System:communicate:lan:dns1
Returns SYSTem:COMMunicate:LAN:DNS2 <dns> This command sets DNS secondary address for LAN. Syntax SYSTem:COMMunicate:LAN:DNS2 <dns> Arguments Example SYST:COMM:LAN:DNS1 "192.168.0.2" Query syntax SYSTem:COMMunicate:LAN:DNS2? Returns SYSTem:COMMunicate:LAN:RAWSocketport <port> This command sets the socket port for the LAN communication. Copyright © Itech Electronic Co., Ltd. -
Page 40: System:communicate:lan:mdns
This command is used to set the status of MDNS function. Syntax SYSTem:COMMunicate:LAN:MDNS <onoff> Arguments 0|OFF|1|ON Example SYST:COMM:LAN:MDNS 1 Query syntax SYSTem:COMMunicate:LAN:MDNS? Returns SYSTem:COMMunicate:LAN:PING <onoff> This command is used to set the status of MDNS function. Syntax SYSTem:COMMunicate:LAN:PING <onoff> Arguments 0|OFF|1|ON Copyright © Itech Electronic Co., Ltd. -
Page 41: System:communicate:lan:telnet
SYSTem:COMMunicate:LAN:TELNet <onoff> Arguments 0|OFF|1|ON Example SYST:COMM:LAN:TELNet 1 Query syntax SYSTem:COMMunicate:LAN:TELNet? Returns SYSTem:COMMunicate:LAN:WEB <onoff> This command is used to set the status of WEB function. Syntax SYSTem:COMMunicate:LAN:WEB <onoff> Arguments 0|OFF|1|ON Example SYST:COMM:LAN:WEB 1 Query syntax SYSTem:COMMunicate:LAN:WEB? Copyright © Itech Electronic Co., Ltd. -
Page 42: System:communicate:lan:vxi11
SYST:COMM:LAN:VXI11 1 Query syntax SYSTem:COMMunicate:LAN:VXI11? Returns SYSTem:COMMunicate:LAN:RESTore This command resets the LAN settings to default settings. Syntax SYSTem:COMMunicate:LAN:RESTore Arguments None Example SYST:COMM:LAN:REST Query syntax None Returns None SYSTem:COMMunicate:LAN:SAVE This command makes the LAN settings valid. Copyright © Itech Electronic Co., Ltd. -
Page 43: System:communicate:lan:state
None SYSTem:COMMunicate:LAN:STATe? This command queries the LAN state. Syntax SYSTem:COMMunicate:LAN:STATe? Arguments None Default value DOWN Example SYST:COMM:LAN:STAT? Returns DOWN|UP SYSTem:COMMunicate:LAN:HOSTname? This command queries the host name in the LAN communication. Syntax SYSTem:COMMunicate:LAN:HOSTname? Arguments None Copyright © Itech Electronic Co., Ltd. -
Page 44: System:communicate:lan:description
This command queries the domain in the LAN communication. Syntax SYSTem:COMMunicate:LAN:DOMain? Arguments None Example SYST:COMM:LAN:DOM? Returns [SOURce:]EXTernal[:STATe] <bool> This command enables or disables the external analog quantity function of the electronic load. Syntax [SOURce:]EXTernal[:STATe] <bool> Copyright © Itech Electronic Co., Ltd. -
Page 45: Address
RS232 and RS485 interface. Syntax ADDRess <NR1> Arguments 0-127 Default value None Example ADDR 1 SYSTem:BOOT:VERSion? This command is used to query the boot version of optional accessories. Syntax SYSTem:BOOT:VERSion? Arguments None Default value None Copyright © Itech Electronic Co., Ltd. - Page 46 System Commands Example SYST:BOOT:VERS? Returns AARD Copyright © Itech Electronic Co., Ltd.
-
Page 47: Chapter6 Measure & Fetch Commands
FETCh[:SCALar]:CURRent[:DC]? This command queries the present current measurement. Syntax MEASure[:SCALar]:CURRent[:DC]? FETCh[:SCALar]:CURRent[:DC]? Arguments None Example MEAS:CURR? FETC:CURR? Returns MEASure[:SCALar]:POWer[:DC]? FETCh[:SCALar]:POWer[:DC]? This command queries the present power measurement. Syntax MEASure[:SCALar]:POWer[:DC]? FETCh[:SCALar]:POWer[:DC]? Arguments None Example MEAS:POW? FETC:POW? Copyright © Itech Electronic Co., Ltd. -
Page 48: Measure[:Scalar]:Voltage[:Dc]
This command queries the present measured voltage. Syntax MEASure[:SCALar]:VOLTage[:DC]? FETCh[:SCALar]:VOLTage[:DC]? Arguments None Example MEAS:VOLT? FETC:VOLT? Returns MEASure[:SCALar]:CAPacity? FETCh[:SCALar]:CAPacity? This command queries the charging capacity of the battery. Syntax MEASure[:SCALar]:CAPacity? FETCh[:SCALar]:CAPacity? Arguments None Example MEAS:CAP? FETC:CAP? Returns Copyright © Itech Electronic Co., Ltd. -
Page 49: Measure[:Scalar]:Uut:temperature
This command queries the measured UUT temperature. Syntax MEASure[:SCALar]:UUT:TEMPerature? FETCh[:SCALar]:UUT:TEMPerature? Arguments None Example MEAS:UUT:TEMP? FETC:UUT:TEMP? Returns MEASure[:SCALar]:RECover:ENERgy? FETCh[:SCALar]:RECover:ENERgy? This command queries the total energy which return to grid. Syntax MEASure[:SCALar]:RECover:ENERgy? FETCh[:SCALar]:RECover:ENERgy? Arguments None Example MEAS:REC:ENERgy? FETCh:REC:ENERgy? Returns Copyright © Itech Electronic Co., Ltd. -
Page 50: Measure[:Scalar]:Local:voltage
This command queries the local voltage. Syntax MEASure[:SCALar]:LOCal:VOLTage? FETCh[:SCALar]:LOCal:VOLTage? Arguments None Example MEAS:LOC:VOLT? FETC:LOC:VOLT? Returns MEASure[:SCALar]:REMote:VOLTage? FETCh[:SCALar]:REMote:VOLTage? This command queries the remote sense voltage. Syntax MEASure[:SCALar]:REMote:VOLTage? FETCh[:SCALar]:REMote:VOLTage? Arguments None Example MEAS: REM:VOLT? FETC: REM:VOLT? Returns Copyright © Itech Electronic Co., Ltd. -
Page 51: Measure[:Scalar]:Ahour
None Example FETC:WHO? Returns MEASure? This command queries present voltage measurement, current measurement and power measurement FETCh? This command reads the latest preprocessed capacity voltage value, current value and power value from sampling buffer. Copyright © Itech Electronic Co., Ltd. - Page 52 Measure & Fetch Commands Syntax FETCh? MEASure? Arguments None Example FETC? MEAS? Returns Copyright © Itech Electronic Co., Ltd.
-
Page 53: Chapter7 Input Commands
This command sets the input state of the electronic load. Syntax INPut[:STATe] <bool> Arguments 0|OFF|1|ON Default value Example INP 1 Query syntax INPut[:STATe]? Returns [INPut:]PROTection:CLEar This command clears the protection status. Syntax [INPut:]PROTection:CLEar Arguments None Example PROT:CLE Query syntax None Returns None Copyright © Itech Electronic Co., Ltd. -
Page 54: Input:delay[:Rise]
INP:DEL 1.0 Query syntax INPut:DELay[:RISE]? [MINimum|MAXimum] Returns INPut:DELay:FALL <NRf+> This command sets the delay time after turning the input off. Syntax INPut:DELay:FALL <NRf+> Arguments MINimum-MAXimum|MINimum|MAXimum Default value Example INP:DEL:FALL 1.0 Query syntax INPut:DELay:FALL? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd. -
Page 55: Input:ponsetup
Default value Example INP:PONS LAST Query syntax INP:PONS? Returns <RST|LAST|LOFF> INPut:SHORt[:STATe] <BOOLEAN> This command sets the electronic load to short mode. Syntax [SOURce:]INPut:SHORt[:STATe] <BOOLEAN> Arguments <0|1|OFF|ON> Default value Example INP:SHOR 1 Query syntax [SOURce:]INPut:SHORt[:STATe]? Returns Copyright © Itech Electronic Co., Ltd. -
Page 56: Input:reverse[:State]
Default value None Example INP:SDS? Returns 0: indicates not connecte SDS, 1: indicates the SDS is connected. INPut:SDS:ENABle <0|OFF|1|ON> This command is used to enable or disable the SDS module.1: indicates enable, 0: indicates disable. Copyright © Itech Electronic Co., Ltd. -
Page 57: Input:sds:dc:relay <0|Off|1|On
Default value Example OUTP:SDS:DC:REL 0 Returns Query syntax OUTPut:SDS:DC:RELay? INPut:SDS:SENSe:RELay <0|OFF|1|ON> This command is used to switch the SDS relay to local measurement or remote sense. 0 indicates local measurement. 1 indicates remote sensing. Copyright © Itech Electronic Co., Ltd. -
Page 58: Input:sds:surge:suppress
Default value None Example OUTP:SDS:SURG:SUPP Returns 0: indicates this function execute fail. 1: indicates this function execute success. Query syntax OUTPut:SDS:SURGe:SUPPress? INPut:PROTection:WDOG[:STATe] <0|OFF|1|ON> This command enables or disables the state of the communication watchdog. Copyright © Itech Electronic Co., Ltd. -
Page 59: Input:protection:wdog:delay
Default value Example INP:PROT:WDOG 0 Query syntax INPut:PROTection:WDOG[:STATe]? Returns INPut:PROTection:WDOG:DELay <NRf+> This command sets the time of the communication watchdog. Syntax INPut:PROTection:WDOG:DELay <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value Example INP:PROT:WDOG:DEL 3 Query syntax INPut:PROTection:WDOG:DELay? Returns <NRf+> Copyright © Itech Electronic Co., Ltd. -
Page 60: Chapter8 Trigger Commands
This command generates a trigger signal when the trigger source is BUS. Syntax TRIGger[:IMMediate] Arguments None Example TRIG Query syntax None Returns None TRIGger:LIST:SOURce <KEYPad|BUS> This command sets the trigger source. Syntax TRIGger:LIST:SOURce <KEYPad|BUS> Arguments <KEYPad|BUS> Default value KEYPad Example TRIG:LIST:SOUR KEYPad Returns KEYPad |BUS Copyright © Itech Electronic Co., Ltd. -
Page 61: Initiate[:Immediate]:List
Syntax INITiate[:IMMediate]:LIST Arguments None Example INIT:LIST Returns None ABORt:LIST This command is used to reset the list program to idle state. Syntax ABORt:LIST Arguments None Example ABOR:LIST Returns None Copyright © Itech Electronic Co., Ltd. -
Page 62: Chapter9 Sense Commands
0|OFF|1|ON Default value Example SENS ON Query syntax SENSe[:REMote][:STATe]? Returns 0|OFF|1|ON SENSe:FILTer:LEVel <SLOW|MEDium|FAST> This command sets the sense filter level. Syntax SENSe:FILTer:LEVel <SLOW|MEDium|FAST> Arguments <FAST|MEDium|SLOW> Default value SLOW Example SENS:FILT:LEV MED Query syntax SENSe:FILTer:LEVel? Copyright © Itech Electronic Co., Ltd. -
Page 63: Sense:ahour:reset
This command clears the Ah information. Syntax SENSe:AHOur:RESet Arguments None Default value None Example SENS:AHO:RES Returns None SENSe:WHOur:RESet This command clears the Wh information. Syntax SENSe:WHOur:RESet Arguments None Default value None Example SENS:WHO:RES Returns None Copyright © Itech Electronic Co., Ltd. -
Page 64: Chapter10 Source Commands
CURR 2.0 Query syntax [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]? [MINimum|MAXimum] Returns [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] <NRf+> This command sets the input current value when the electronic load receives a trigger signal. Syntax [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MINimum Example CURR:TRIG 2.0 Copyright © Itech Electronic Co., Ltd. -
Page 65: [Source:]Current[:Over]:Protection[:Level]
Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MAXimum Example CURR:PROT 3.0 Query syntax [SOURce:]CURRent[:OVER]:PROTection[:LEVel]? [MINimum|MAXimum] Returns [SOURce:]CURRent[:OVER]:PROTection:DELay <NRf+> This command sets the over-current delay time of the electronic load. Syntax [SOURce:]CURRent[:OVER]:PROTection:DELay <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MINimum Copyright © Itech Electronic Co., Ltd. -
Page 66: [Source:]Current[:Over]:Protection:state
Syntax [SOURce:]CURRent[:OVER]:PROTection:STATe <bool> Arguments 0|OFF|1|ON Default value Example CURR:PROT:STAT ON Query syntax [SOURce:]CURRent[:OVER]:PROTection:STATe? Returns [SOURce:]CURRent:SLEW[:BOTH] <NRf+> This command sets the current rising and falling slew rate. Syntax [SOURce:]CURRent:SLEW[:BOTH] <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MAXimum Copyright © Itech Electronic Co., Ltd. -
Page 67: [Source:]Current:slew:negative
Syntax [SOURce:]CURRent:SLEW:NEGative <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MAXimum Example CURR:SLEW:NEG 2.0 Query syntax [SOURce:]CURRent:SLEW:NEGative? [MINimum|MAXimum] Returns [SOURce:]CURRent:SLEW:POSitive <NRf+> This command sets the current rising slew rate. Syntax [SOURce:]CURRent:SLEW:POSitive <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MAXimum Copyright © Itech Electronic Co., Ltd. -
Page 68: [Source:]Resistance[:Level][:Immediate][:Amplitude]
<MINimum-MAXimum>|MINimum|MAXimum Default value MAXimum Example RES MAX Query syntax [SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude]? [MINimum|MAXimum] Returns [SOURce:]RESistance[:LEVel]:TRIGgered[:AMPLitude] <NRf+> This command sets the input resistance value when the electronic load receives a trigger signal. Syntax [SOURce:]RESistance[:LEVel]:TRIGgered[:AMPLitude] <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Copyright © Itech Electronic Co., Ltd. -
Page 69: [Source:]Voltage[:Level][:Immediate][:Amplitude]
[SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude] <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MINimum Example VOLT 10.0 Query syntax [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude]? [MINimum|MAXimum] Returns [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] <NRf+> This command sets the input voltage value when the electronic load receives a trigger signal. Syntax [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] <NRf+> Copyright © Itech Electronic Co., Ltd. -
Page 70: [Source:]Voltage:under:protection[:Level]
[SOURce:]VOLTage:UNDer:PROTection[:LEVel] <NRf+> This command sets the under-voltage limit value. Syntax [SOURce:]VOLTage:UNDer:PROTection[:LEVel] <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MINimum Example VOLT:PROT:UND MIN Query syntax [SOURce:]VOLTage:UNDer:PROTection[:LEVel]? [MINimum|MAXimum] Returns [SOURce:]VOLTage:UNDer:PROTection:DELay <NRf+> This command sets the under-voltage delay time. Copyright © Itech Electronic Co., Ltd. -
Page 71: [Source:]Voltage:under:protection:state
This command enables or disables the under-voltage function. Syntax [SOURce:]VOLTage:UNDer:PROTection:STATe <bool> Arguments <0|1|OFF|ON> Default value Example VOLT:PROT:UND:STAT OFF Query syntax [SOURce:]VOLTage:UNDer:PROTection:STATe? Returns [SOURce:]POWer[:LEVel][:IMMediate][:AMPLitude] <NRf+> This command sets the input power value under CP mode. Copyright © Itech Electronic Co., Ltd. -
Page 72: [Source:]Power[:Level]:Triggered[:Amplitude]
Returns [SOURce:]POWer[:LEVel]:TRIGgered[:AMPLitude] <NRf+> This command sets the input power value when the electronic load receives a trigger signal. Syntax [SOURce:]POWer[:LEVel]:TRIGgered[:AMPLitude] <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MAXimum Example POW:TRIG MAX Query syntax [SOURce:]POWer[:LEVel]:TRIGgered[:AMPLitude]? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd. -
Page 73: [Source:]Power:protection[:Level]
MAXimum Example POW:PROT MAX Query syntax [SOURce:]POWer:PROTection[:LEVel]? [MINimum|MAXimum] Returns [SOURce:]POWer:PROTection:DELay <NRf+> This command sets the over-power delay time. Syntax [SOURce:]POWer:PROTection:DELay <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MINimum Example POW:PROT:DEL MAX Query syntax [SOURce:]POWer:PROTection:DELay? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd. -
Page 74: [Source:]Power:protection:state
<0|1|OFF|ON> Default value Example POW:PROT:STAT ON Query syntax [SOURce:]POWer:PROTection:STATe? Returns [SOURce:]FUNCtion:MODE <FIXed|LIST|BATTery> This command sets the operating mode. Syntax [SOURce:]FUNCtion:MODE <FIXed|LIST|BATTery> Arguments FIXed|LIST|BATTery Default value FIXed Example FUNC:MODE FIX Query syntax [SOURce:]FUNCtion:MODE? Returns FIXed|LIST|BATTery Copyright © Itech Electronic Co., Ltd. -
Page 75: [Source:]Function
CURRent Example FUNC VOLT Query syntax [SOURce:]FUNCtion? Returns VOLTage|CURRent|POWer|RESistance|CV+CC|CV+CR|CC+CR|CV+CC+CP +CR|BSIM [SOURce:]VOLTage:LATCh[:STATe] <bool> This command sets the VON mode of electronic load to latch status. Syntax [SOURce:]VOLTage:LATCh[:STATe] <bool> Arguments <0|1|OFF|ON> Default value Example VON:LATC OFF Copyright © Itech Electronic Co., Ltd. -
Page 76: [Source:]Voltage[:Level]:On
Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MAXimum Example VOLT:ON 3.0 Query syntax [SOURce:]VOLTage[:LEVel]:ON? [MINimum|MAXimum] Returns [SOURce:]UUT:TEMPerature:PROTection:STATe <bool> This command sets the UUT over temperature protection status. Syntax [SOURce:]UUT:TEMPerature:PROTection:STATe <bool> Arguments <0|1|OFF|ON> Default value Example UUT:TEMP:PROT:STAT 1 Copyright © Itech Electronic Co., Ltd. -
Page 77: [Source:]Uut:temperature:protection[:Level]
Load Commands Query syntax [SOURce:]UUT:TEMPerature:PROTection:STATe? Returns [SOURce:]UUT:TEMPerature:PROTection[:LEVel] <NRf+> This command sets the UUT over-temperature limit. Syntax [SOURce:]UUT:TEMPerature:PROTection[:LEVel] <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MAXimum Example UUT:TEMP:PROT MAX Query syntax [SOURce:]UUT:TEMPerature:PROTection[:LEVel]? [MINimum|MAXimum] Returns NRf+ Copyright © Itech Electronic Co., Ltd. -
Page 78: Chapter11 Trace Commands
TRACe:CLEar Arguments None Example TRAC:CLE Query syntax None Returns None TRACe:POINts <NRf+> This command is used to specify cache size. Syntax TRACe:POINts <NRf+> Arguments <2-2500>|MINimum|MAXimum Default value 1000 Example TRAC:POINt MAX Query syntax TRACe:POINts? Copyright © Itech Electronic Co., Ltd. -
Page 79: Trace:feed:control
CURRent is selected, the current reading is saved in cache. If BOTH is selected, both voltage and current are saved in cache when saving is executed. Syntax TRACe:FEED[:SELected]<BOTH|VOLTage|CURRent> Arguments BOTH|VOLTage|CURRent Default value VOLTage Copyright © Itech Electronic Co., Ltd. -
Page 80: Trace:delay
This command selects cache delay time. Syntax TRACe:DELay <NRf+> Arguments 0 to 3600s|MINimum|MAXimum Default value 0.000S Example TRAC:DEL MINimum Query syntax TRACe:DELay? Returns TRACe:TIMer <NRf+> This command selects cache time interval. Syntax TRACe:TIMer <NRf+> Arguments <0.00005-1000.0> MINimum-MAXimum|MINimum|MAXimum Copyright © Itech Electronic Co., Ltd. -
Page 81: Trace:points:actual
This command selects number of actual readings in the cache. Syntax TRACe:POINts:ACTual? Arguments None Example TRAC:POIN:ACT? Returns TRACe:CLEar:AUTO[:STATe] <bool> This command selects whether clear the readings in the cache automatically . Syntax TRACe:CLEar:AUTO[:STATe] <bool> Arguments <0|1|OFF|ON> Example TRAC:CLE:AUTO ON Query syntax TRACe:CLEar:AUTO[:STATe]? Copyright © Itech Electronic Co., Ltd. -
Page 82: Trace:data
NEXT or ALWays, otherwise the system will prompt an error. Syntax TRACe:DATA? Arguments None Example TRACe:DATA? Returns <NRf>,<NRf>,<NRf>..TRACe:FILTer[:STATe] This command enables or disables the filter. Syntax TRACe:FILTer[:STATe] Arguments <0|1|OFF|ON> Default value Example TRAC:FILT 0 Returns Copyright © Itech Electronic Co., Ltd. -
Page 83: Chapter12 List Commands
LIST:STEP COUN 1 Query syntax LIST:STEP:COUNt? Returns LIST[:STEP]:VOLTage <NR1>,<NRf+> This command sets the voltage value of the nth step in the list program. Syntax LIST[:STEP]:VOLTage <NR1>,<NRf+> Arguments <1-100>,<MINimum-MAXimum|MINimum|MAXimum> Example LIST:VOLT 1,100.00 Query syntax LIST:VOLTage? Returns Copyright © Itech Electronic Co., Ltd. -
Page 84: List[:Step]:Current
This command sets the power value of the nth step in the list program. Syntax LIST[:STEP]:POWer <NR1>,<NRf+> Arguments <1-100>,<MINimum-MAXimum|MINimum|MAXimum> Example LIST:POW 1, 5 Query syntax LIST[:STEP]:POWer? <NR1> Returns LIST[:STEP]:RESistance <NR1>,<NRf+> This command sets the resistance value of the nth step in the list program. Copyright © Itech Electronic Co., Ltd., -
Page 85: List[:Step]:Slew
Syntax LIST[:STEP]:SLEW <NR1>,<NRf+> Arguments <1-100>,<MINimum-MAXimum|MINimum|MAXimum> Example LIST[:STEP]:SLEW 1,1.000 Query syntax LIST[:STEP]:SLEW? <NR1> Returns LIST[:STEP]:WIDTh <NR1>,<NRf+> This command sets the width value of the nth step in the list program. Syntax LIST[:STEP]:WIDTh <NR1>,<NRf+> Arguments <1-100>,<MINimum-MAXimum|MINimum|MAXimum> Copyright © Itech Electronic Co., Ltd., -
Page 86: List:repeat
Syntax LIST:REPeat <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example LIST:REP 3 Query syntax LIST:REPeat? Returns LIST:FUNCtion <VOLTage|CURRent|POWer|RESistance> This command sets the working mode of list program. Syntax LIST:FUNCtion <VOLTage|CURRent|POWer|RESistance> Arguments <VOLTage|CURRent|POWer|RESistance> Example LIST:FUNC VOLT Query syntax LIST:FUNCtion? Copyright © Itech Electronic Co., Ltd. -
Page 87: List:save
Example LIST:SAV 1 Query syntax LIST:SAVE? Returns LIST:RECall <NR1> This command recalls the list program you saved in the specified memory location. Syntax LIST:RECall <NR1> Arguments <1-10> Example LIST:REC 1 Query syntax LIST:RECall? Returns Copyright © Itech Electronic Co., Ltd. -
Page 88: List[:State]
<0|1|OFF|ON> Default value Example LIST ON Query syntax LIST[:STATe]? Returns [SOURce:]LIST:TERMinate:LAST<bool> This command sets the end state of the list program. Syntax LIST:TERMinate <terminate> Arguments NORMal|LAST Example LIST:TERM NORM Query syntax LIST:TERMinate? Returns NORMal|LAST Copyright © Itech Electronic Co., Ltd. -
Page 89: List:pause[:State]
Default value 不适用 Example LIST:PAUS 1 Query syntax LIST:PAUSe[:STATe]? Returns [SOURce:]LIST:RESet This command resets the running state of the list program to waiting trigger. Syntax [SOURce:]LIST:RESet Arguments None Example LIST:RES Query syntax None Returns None Copyright © Itech Electronic Co., Ltd. -
Page 90: [Source:]List:run:step
This command queries the present step number of the running list program. Syntax [SOURce:]LIST:RUN:STEP? Arguments None Default value 不适用 Example LIST:RUN:STEP? Returns [SOURce:]LIST:RUN:REPeat? This command queries the present repetitions of the running list program. Syntax [SOURce:]LIST:RUN:REPeat? Arguments None Example LIST:RUN:REP? Returns Copyright © Itech Electronic Co., Ltd. -
Page 91: Chapter13 Battery Commands
Example BATT:DISC:VOLT 3.0 Query syntax BATTery:DISCharge:VOLTage? [MINimum|MAXimum] Returns BATTery:DISCharge:CURRent <NRf+> This command is used to set the battery discharge current value. Syntax BATTery:DISCharge:CURRent <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example BATT:DISC:CURR 3.0 Query syntax BATTery:DISCharge:CURRent? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd. -
Page 92: Battery:stop:voltage
This command is used to set the current value of the battery test cutoff. Syntax BATTery:STOP:CURRent <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example BATT:SHUT:CURR 3.0 Query syntax BATTery:STOP:CURRent? [MINimum|MAXimum] Returns BATTery:STOP:CAPacity <NRf+> This command is used to set the capacitance value of the battery test cutoff. Copyright © Itech Electronic Co., Ltd. -
Page 93: Battery:stop:time
This command is used to set the battery test cutoff time. Syntax BATTery:STOP:TIME <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example BATT:SHUT:TIME 3.0 Query syntax BATTery:STOP:TIME? [MINimum|MAXimum] Returns BATTery[:STATe] This command enables or disables the battery function. Syntax BATTery[:STATe] Arguments <0|1|OFF|ON> Copyright © Itech Electronic Co., Ltd. -
Page 94: Battery:save
Arguments <1-10> Example BATT:SAV 1 Query syntax None Returns <NR1> BATTery:RECall <BANK> This command recalls the battery test file you saved in the specified memory location. Syntax BATTery:SAVE <BANK> Arguments <1-10> Example BATT:REC 1 Copyright © Itech Electronic Co., Ltd. -
Page 95: [Source:]Battery:reset
Battery Commands Query syntax None Returns <NR1> [SOURce:]BATTery:RESet This command resets the running state of the list program to initial state. Syntax [SOURce:]BATTery:RESet Arguments None Example BATT:RES Query syntax None Returns None Copyright © Itech Electronic Co., Ltd. -
Page 96: Chapter14 Parallel&Link Commands
Syntax PARallel:ROLE <SINGle|SLAVe|MASTer> Arguments SINGle|SLAVe|MASTer Example PAR:ROLE SLAV Query syntax PARallel:ROLE? Returns SINGle|SLAVe|MASTer PARallel:GROup <group> This command specifies the parallel group. Syntax PARallel:GROup <group> Arguments <A-H> Example PAR:GRO 1 Query syntax PARallel:GROup? Returns Copyright © Itech Electronic Co., Ltd. -
Page 97: Parallel:number
Query syntax PARallel:NUMBer? Returns LINK:MODE <OUTPut|TRACk> This command sets the link mode. Syntax LINK:MODE <OUTPut|TRACk> Arguments OUTPut|TRACk Example LINK:MODE OUTP Query syntax LINK:MODE? Returns OUTPut|TRACk LINK[:STATe] <bool> This command enables or disables the link function. Copyright © Itech Electronic Co., Ltd. -
Page 98: Link:reference
LINK[:STATe] <bool> Arguments <0|1|OFF|ON> Example LINK ON Query syntax LINK[:STATe]? Returns LINK:REFerence <NRf+> This command sets reference proportion of the link mode. Syntax LINK:REFerence <NRf+> Arguments <0.01-100.00> Example LINK:REF 3 Query syntax LINK:REFerence? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd. -
Page 99: Chapter15 Common Commands
The ESER is an eight-bit register that determines which bits in the Standard Event Status Register (SESR) will set the Event Summary Bit (ESB) in the Status Byte Register (SBR). Syntax *ESE <NRf> Arguments 0 to 255 Default value Copyright © Itech Electronic Co., Ltd. -
Page 100: Esr
See also *CLS *ESE *ESE? *OPC *IDN? This command reads information that identifies the electronic load. It returns a parameter that contains four segments divided by a comma. Example: ITECH Ltd., IT3300, 60234567890123456, 1.01-1.02-1.03. Copyright © Itech Electronic Co., Ltd. -
Page 101: Opc
This command sets the Operation Complete (OPC) bit in the Standard Event Status Register to 1 when all other commands are complete. Syntax *OPC Arguments None Default value Not applicable Example *OPC Query command *OPC? Returns Copyright © Itech Electronic Co., Ltd. -
Page 102: Psc
*PSC 0 Query command *PSC? Returns *RCL This command recalls the setups you saved in the specified memory location. Syntax *RCL <NRf> Arguments <1-10> Default value Not applicable Example *RCL 1 Query command None Copyright © Itech Electronic Co., Ltd. -
Page 103: Rst
None Returns Not applicable *SAV This command saves the present setting values of the electronic load into specified memory Syntax *SAV <NRf> Arguments <1-10> Default value Not applicable Example *SAV 1 Query command None Copyright © Itech Electronic Co., Ltd. -
Page 104: Sre
0 to 255 Default value Not applicable Example *SRE 255 Query command *SRE? Returns *STB? This command reads the data in the Status Byte Register (SBR). Syntax *STB? Arguments None Default value Not applicable Example *STB? Copyright © Itech Electronic Co., Ltd. -
Page 105: Trg
Default value Not applicable Example *TRG Query command None Returns None *TST? This command initiates a self-test and reports any errors. Query command *TST? Arguments None Default value Not applicable Example *TST? Returns NR1,<str> Copyright © Itech Electronic Co., Ltd. -
Page 106: Wai
This instruction is used to control whether the status register is cleared when the instrument is powered-on. This instruction affects the value of the status register at the next powered-on. Syntax *PSC <Bool> Arguments 0|OFF|1|ON Default value Example *PSC 0 Query syntax *PSC? Copyright © Itech Electronic Co., Ltd. - Page 107 Common Commands Returns Copyright © Itech Electronic Co., Ltd.
-
Page 108: Chapter16 Error Messages
"Module Initialization Lost" "Mainframe Initialization Lost" "Module Calibration Lost" "Eeprom failure" "RST checksum failed" "BACKUP RAM failed" "RAM selftest failed" "Front panel uart parity" "Front panel buffer overrun" "Front panel timeout" "Front Crc Check error" Copyright © Itech Electronic Co., Ltd. - Page 109 "CAL password is incorrect" "CAL not enabled" "readback cal are incorrect" "programming cal are incorrect" "Incorrect sequence of cal" "Commond only for rs232" "FETCH of data was not acquired" "Measurement overrange" "Sn Same Conflict" Copyright © Itech Electronic Co., Ltd.
