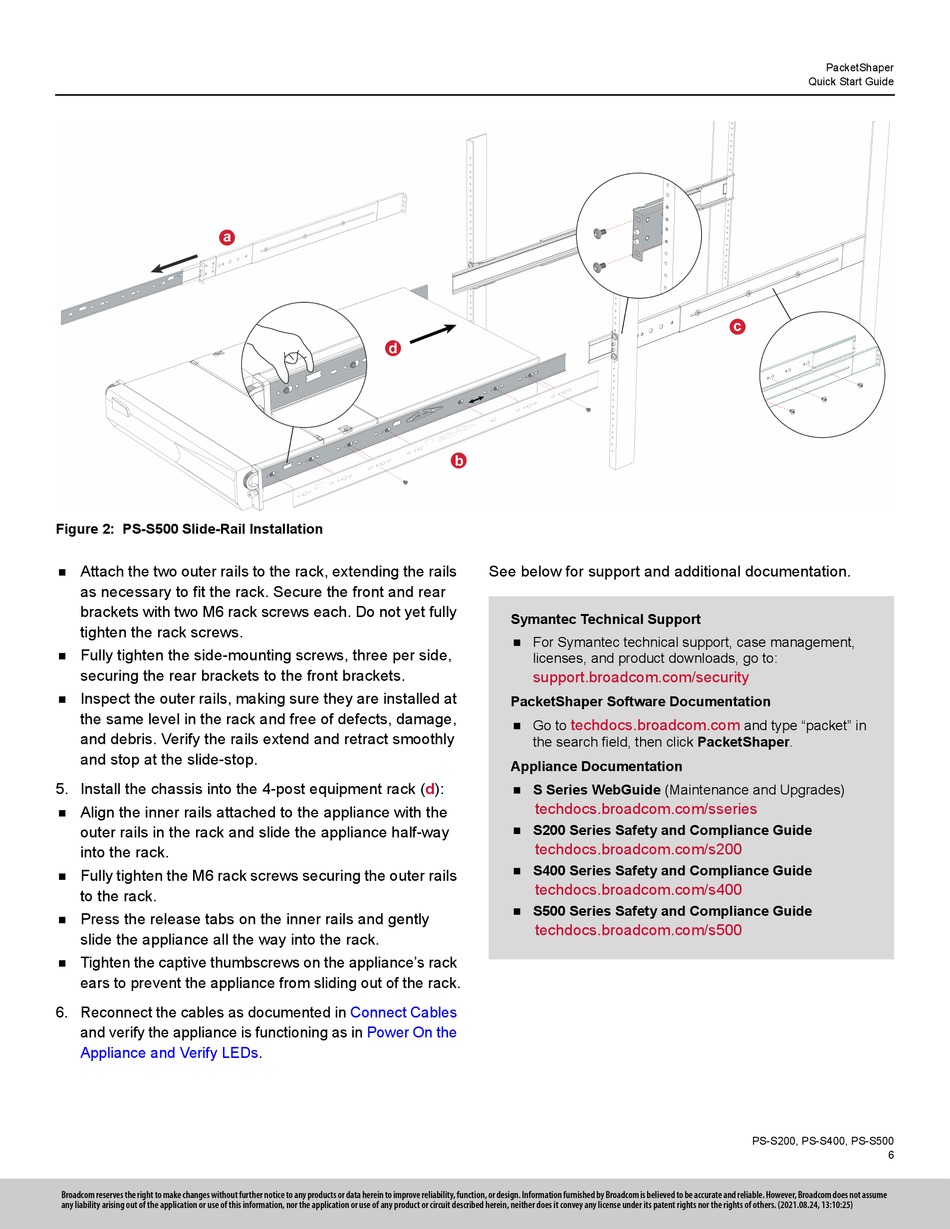

Figure 2: PS-S500 Slide-Rail Installation
Attach the two outer rails to the rack, extending the rails

as necessary to fit the rack. Secure the front and rear
brackets with two M6 rack screws each. Do not yet fully
tighten the rack screws.
Fully tighten the side-mounting screws, three per side,

securing the rear brackets to the front brackets.
Inspect the outer rails, making sure they are installed at

the same level in the rack and free of defects, damage,
and debris. Verify the rails extend and retract smoothly
and stop at the slide-stop.
5. Install the chassis into the 4-post equipment rack (d):
Align the inner rails attached to the appliance with the

outer rails in the rack and slide the appliance half-way
into the rack.
Fully tighten the M6 rack screws securing the outer rails

to the rack.
Press the release tabs on the inner rails and gently

slide the appliance all the way into the rack.
Tighten the captive thumbscrews on the appliance's rack

ears to prevent the appliance from sliding out of the rack.
6. Reconnect the cables as documented in
and verify the appliance is functioning as in
Appliance and Verify LEDs.
