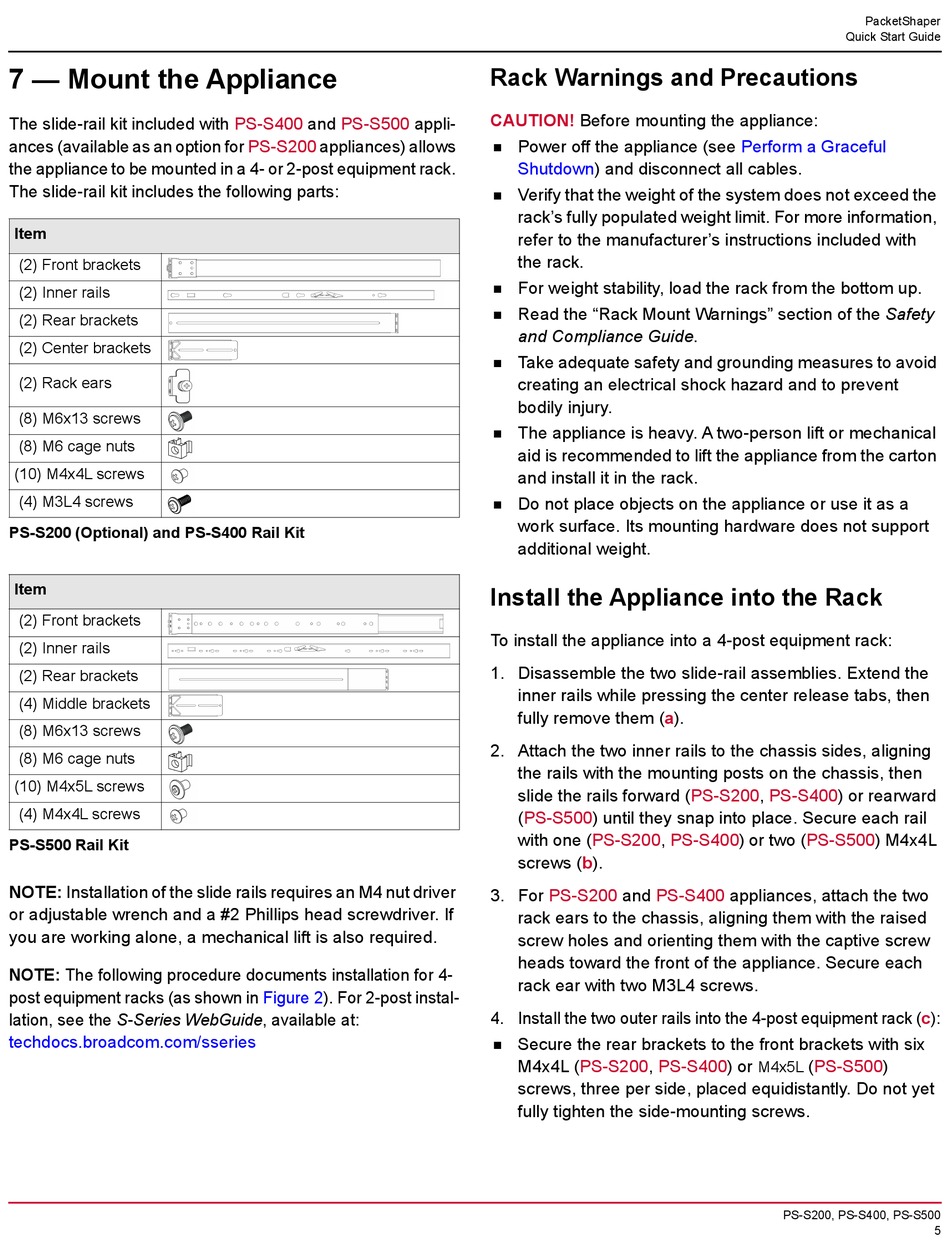

7 — Mount the Appliance
The slide-rail kit included with
ances (available as an option for
the appliance to be mounted in a 4- or 2-post equipment rack.
The slide-rail kit includes the following parts:
Item
(2) Front brackets
(2) Inner rails
(2) Rear brackets
(2) Center brackets
(2) Rack ears
(8) M6x13 screws
(8) M6 cage nuts
(10) M4x4L screws
(4) M3L4 screws
PS-S200 (Optional) and PS-S400 Rail Kit
Item
(2) Front brackets
(2) Inner rails
(2) Rear brackets
(4) Middle brackets
(8) M6x13 screws
(8) M6 cage nuts
(10) M4x5L screws
(4) M4x4L screws
PS-S500 Rail Kit
NOTE: Installation of the slide rails requires an M4 nut driver
or adjustable wrench and a #2 Phillips head screwdriver. If
you are working alone, a mechanical lift is also required.
NOTE: The following procedure documents installation for 4-
post equipment racks (as shown in
lation, see the S-Series WebGuide, available at:
techdocs.broadcom.com/sseries
PS-S400 and PS-S500
PS-S200 appliances) allows
Figure 2). For 2-post instal-

Rack Warnings and Precautions

CAUTION! Before mounting the appliance:
appli-
Power off the appliance (see

Shutdown) and disconnect all cables.
Verify that the weight of the system does not exceed the

rack's fully populated weight limit. For more information,
refer to the manufacturer's instructions included with
the rack.
For weight stability, load the rack from the bottom up.

Read the "Rack Mount Warnings" section of the Safety

and Compliance Guide.
Take adequate safety and grounding measures to avoid

creating an electrical shock hazard and to prevent
bodily injury.
The appliance is heavy. A two-person lift or mechanical

aid is recommended to lift the appliance from the carton
and install it in the rack.
Do not place objects on the appliance or use it as a

work surface. Its mounting hardware does not support
additional weight.
Install the Appliance into the Rack
To install the appliance into a 4-post equipment rack:
1. Disassemble the two slide-rail assemblies. Extend the
inner rails while pressing the center release tabs, then
fully remove them (a).
2. Attach the two inner rails to the chassis sides, aligning
the rails with the mounting posts on the chassis, then
slide the rails forward (PS-S200, PS-S400) or rearward
(PS-S500) until they snap into place. Secure each rail
with one (PS-S200, PS-S400) or two (PS-S500) M4x4L
screws (b).
3. For PS-S200
rack ears to the chassis, aligning them with the raised
screw holes and orienting them with the captive screw
heads toward the front of the appliance. Secure each
rack ear with two M3L4 screws.
4. Install the two outer rails into the 4-post equipment rack (c):
Secure the rear brackets to the front brackets with six

M4x4L (PS-S200, PS-S400) or
screws, three per side, placed equidistantly. Do not yet
fully tighten the side-mounting screws.
Perform a Graceful
and PS-S400 appliances, attach the two
M4x5L
PS-S200, PS-S400, PS-S500
