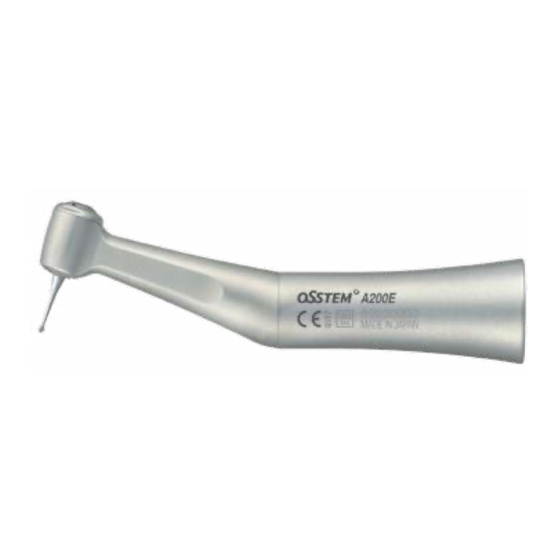

Osstem A200E Operation Manual

Air motor set
Hide thumbs
Table of Contents

Advertisement

Quick Links

AE
Set
A200E / A400E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A200E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Osstem A200E

Summary of Contents for Osstem A200E

  • Page 1 A200E / A400E...
  • Page 3 Chuck Open Open Align Chuck Close Close...

  • Page 4: Precautions For Handling And Operation

    User : Qualified Professionals Please read these precautions carefully and use only as intended or instructed. Intended Use : Dental Treatment (A200E, AE motor) Safety instructions are intended to avoid potential hazards that could result in personal injury or damage Dental Treatment / Dental Prosthetics (Cutting, Polishing) (A400E) to the device.

  • Page 5: Check Before Treatment

    U.S. Federal law restricts this device to sale by or on the order of a licensed physician. 3. Check before treatment Connect the handpiece to the motor and check for motor vibration, noise and overheating. If any abnormalities are found do not use the motor and contact your Authorized OSSTEM Dealer.

  • Page 6: Maintenance

    6-2 Lubrication 4. Water and Chip Air Supply to the Handpiece PANA SPRAY Plus 1) Attach the attached FX Spray nozzle to the neck of the Contra Angle handpiece. Apply PANA SPRAY Plus every time after each use and/or before autoclaving. 2) Trim the tube to the desired length then insert the tube end into the nozzle clamp on the motor.

  • Page 7: Warranty

    NOTICE OSSTEM parts installed. Replacement parts are available for seven years beyond discontinuation of the model. OSSTEM recommends Class B sterilizers as stated in EN13060.

  • Page 8: Specifications

    12. Specifications Model Hose Connection Type ISO 9168 Type 2 (Midwest 4 hole) Handpiece Connection Type E Type ISO 3964 Max. Rotation Speed 25,000min Breakdown Torque 2.0N·cm Drive Air Pressure 0.20 - 0.25MPa (2.0 - 2.5kgf/cm Air Consumption 50±5NL/min(0.25MPa) Water Pressure 0.10 - 0.25MPa (1.0 - 2.5kgf/cm Chip Air Pressure 0.15 - 0.25MPa (1.5 - 2.5kgf/cm...
  • Page 9 Disconnect the handpiece only after the motor has completely stopped rotating. Do not attempt to disassemble the product nor tamper with the mechanism except as recommend by OSSTEM in this Operation Manual. 2. Insertion & Removal of the Bur Do not allow any impact on to the product. Do not drop the product.
  • Page 10 Check that the Head Cap is firmly tightened. Also check for handpiece vibration, noise and overheating. 1) Remove the bur from the handpiece. If any abnormalities are found do not use the handpiece and contact your Authorized OSSTEM IMPLANT 2) Insert the Spray Nozzle into the Spray Port nozzle on the can.

  • Page 11: Replacing The Cartridge

    NOTICE When using NSK Care3 Plus automatic handpiece cleaning and lubrication system, refer to the Care3 System instructions. OSSTEM recommends Class B sterilizers as stated in EN13060. 5-3 Sterilization 6. Replacing the Cartridge Sterilize the product by autoclave sterilization. Remove the bur after each patient and sterilize as noted below.

  • Page 12: Periodical Maintenance Checks

    Use only a genuine NSK cartridge. 9. Warranty If a non genuine cartridge is used OSSTEM cannot guarantee performance and the handpiece warranty would become invalid. OSSTEM products are warranted against manufacturing errors and defects in materials. OSSTEM reserves the Always first finger tighten the head cap then secure firmly with the wrench.

  • Page 13: Spare Parts List

    10. Spare Parts List 12. Specifications Model Order Code Compatible Product Remarks Model A200E FX25-03 C1052700 A200E Cartridge Max. Rotation Speed (Motor) 40,000 min FX Wrench C1052701 A200E Max. Rotation Speed (Handpiece) 40,000 min FX Spray Nozzle C1052702 A200E Gear Ratio...
  • Page 14 Disconnect the handpiece only after the motor has completely stopped rotating. Do not attempt to disassemble the product nor tamper with the mechanism except as recommend by OSSTEM in this Operation Manual. 2. Insertion & Removal of the Bur Do not allow any impact on to the product. Do not drop the product.
  • Page 15 Check for handpiece vibration, noise and overheating. If any abnormalities are found do not use the When applying spray be sure to hold the handpiece firmly to prevent the handpiece from slipping out handpiece and contact your Authorized OSSTEM IMPLANT Co,. Ltd Dealer. of the hand due to the spray pressure.
  • Page 16 If the sterilizer chamber temperature may exceed 135°C during the dry cycle then delete the dry cycle. OSSTEM products are warranted against manufacturing errors and defects in materials. OSSTEM reserves the Autoclave sterilization is recommended for the product. The validity of other sterilization methods is right to analyze and determine the cause of any problem.
  • Page 17 10. Specifications Model A400E Max. Rotation Speed (Motor) 40,000 min Max. Rotation Speed (Handpiece) 40,000 min Gear Ratio 1:1 Direct Drive Bur Type ISO 1797-1 Type2 ø2.35mm HP Bur / Chucking Length 30mm Max. Bur Length 44.5mm Max. Working Part Diameter ø4mm Use Environment Temperature: 0 - 40°C (No Condensation), Humidity: 30 - 75%,...
  • Page 18 OSSTEM IMPLANT www.osstem.com 8th FL, World Meridian II, 123, Gasan digital 2-ro, Geumcheon-gu, Seoul 153-759, Korea...
