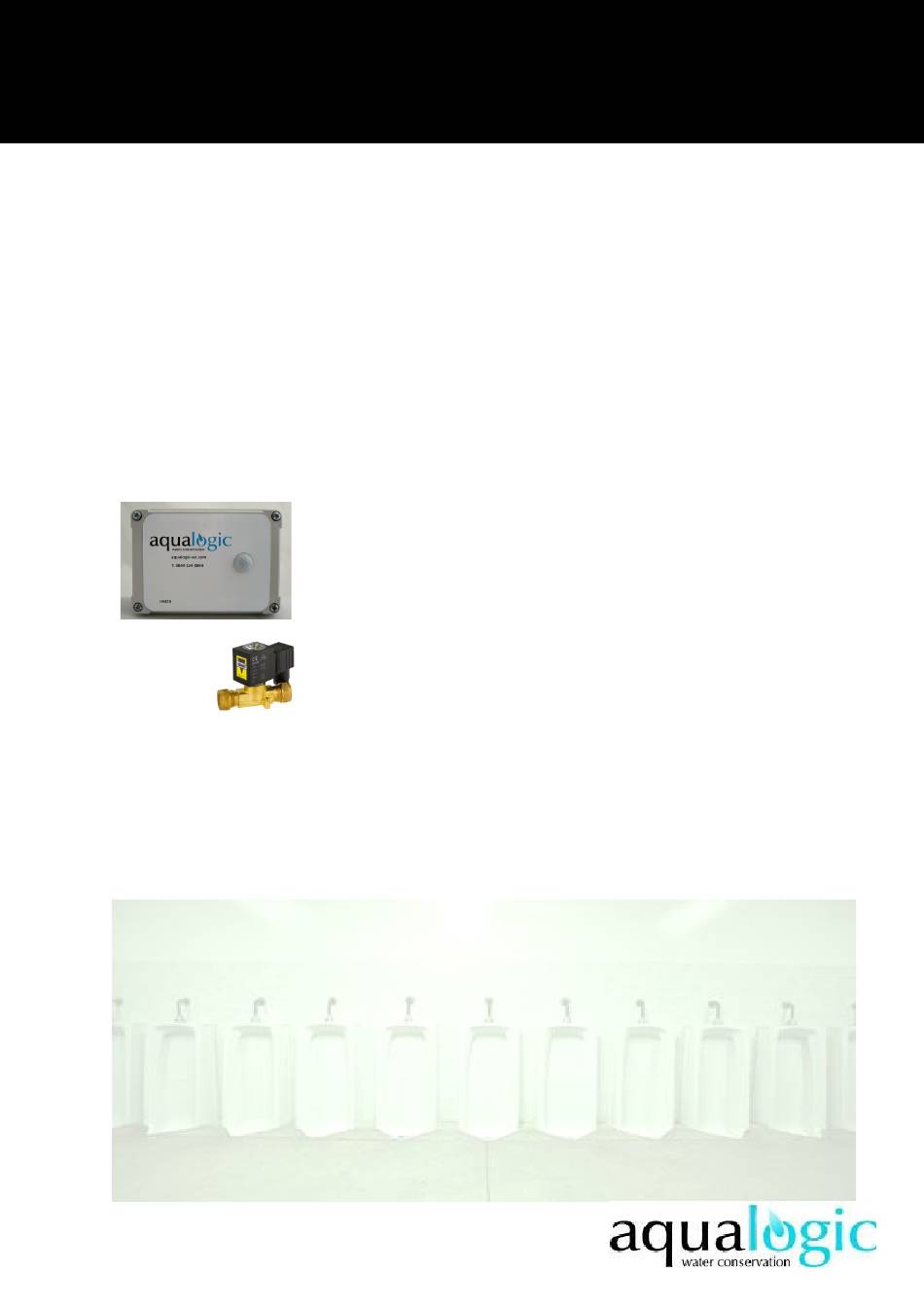

URINAL CONTROL SYSTEMS
HydroMate 20
Installation & Setup
Please check your box has the following contents
You will require the following:
1mm twin & earth flex
Cable Clips, Trunking or Conduit
20mm Cable glands, wall or ceiling
fixing Screws/plugs.
Recommended:
15mm isolation valve "AQRIV" (To comply with water regulations)
230v Supply from fused spur using 3 amp fuse (BS1361)
A wiring junction box -If connecting more than 1 valve to control unit
AQUHM20 1.2
Instructions
1 x Hydromate control standard surface mount
box.
1 x 15mm 230v Solenoid Valve.
Advertisement
Table of Contents
Related Manuals for AquaLogic HydroMate 20
Summary of Contents for AquaLogic HydroMate 20
- Page 1 URINAL CONTROL SYSTEMS HydroMate 20 Installation & Setup Instructions Please check your box has the following contents 1 x Hydromate control standard surface mount box. 1 x 15mm 230v Solenoid Valve. You will require the following: 1mm twin & earth flex...
- Page 2 ‘valve’. Note: The valve will work in either polarity. The Hydromate 20 can operate up to 3 solenoid valves. A suitable junction box will be required if installing multiple valves.
- Page 3 Hydromate 20 — identification of controller and settings Flush Frequency Solenoid Valve Connections Rotary Dial Valve 230v supply Using a slotted screwdriver turn the ‘Rotary dial’ to the selected Flush program. (See table 1 below) Before setting the fill time the cistern must be empty. NB: If the cistern is not completely empty at this stage, you will need to carry out steps 5 and 6 twice.
- Page 4 In case of a power failure, the unit’s memory will retain programmed settings. NB: Unexpected interruptions or pressure differentials with your water supply may cause fill times to drift over time. For further information or Technical assistance contact us on: Tel 0844 324 0844 or Email: info@aqualogic-wc.com...
