- Page 1 Explosion-proof Ion Bar Series AP&T AP-AB1602A Shanghai Anping Static Technology Co.,Ltd Explosion-proof Ion Bar Series AP&T...
- Page 2 Suitable for coating, printing, film and other industries with flammable working conditions E f f e c t i v e l y s o l v e t h e p r o b l e m s c a u s e d b y s t a t i c e l e c t r i c i t y Static Removal Prevent adhesion of objects...
- Page 3 Can be used safely in flammable and explosive environments Explosion-proof certificate No.：GYB21.3386X Explosion-proof mark：Ex sc Ⅱ B T4 Gc This product can be used in flammable and explosive working places corresponding to ⅡB or lower level with this safe explosion-proof function.
- Page 4 47.8 44.3 40.7 37.2 33.6 Discharge time distribution diagram of AP-AB1602A Ion balance voltage distribution diagram of AP-AB1602A with 1000mm bar length at 0.4MPa air pressure with 1000mm bar length at 0.4MPa air pressure Y（mm） -150 Test standard：ANSI/ESD.STM3.1，SJ/T 11446—2013 Horizontal test distance...
- Page 5 Other test data AP-AB1602A Product model: AP-AB1602A Ion bar length:100cm Power: 7KV 1 capacitor Test instrument: TREK158 with air source Test distance(mm) Discharge performance Air pressure Positive discharge Balance voltage Negative discharge Vertical Horizontal (MPa)1* time (S) time (S) AVE(V) -150 7.461...
- Page 6 Features Safe / Easy to use / Durable No.1 Electroshock-proof Protection against human electro-shock. No.2 Easy installation Hexagonal bolts are provided and put the slider nut into the special strip notch on the back of the bar body which are removable to left or right and can be easily installed in different environments.
-
Page 7: Product Specifications
Product specifications Product details / Product specifications / Product size Product specifications Model AP-AB1602A Explosion-proof mark Ex sc Ⅱ B T4 Gc Explosion-proof certificate No. GYB21.3386X Working voltage Power frequency≤ AC7000V Power Ion emission Power frequency AC Emitter electrode Discharge structure... -
Page 8: Product Details

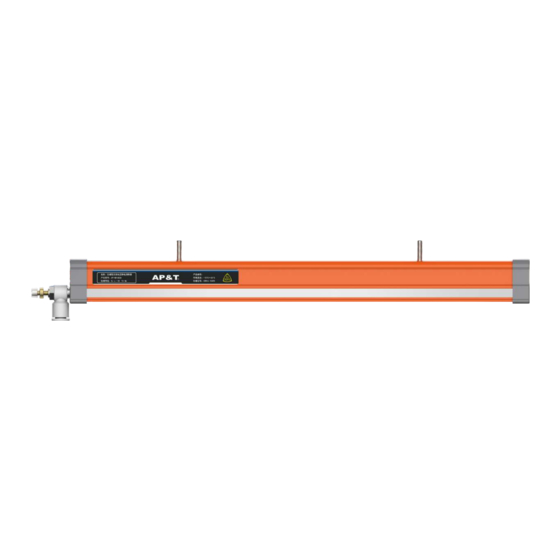

Product details Sliding mounting bolt（M5*20） Shielded high voltage wire Ground terminal High voltage plug Air source connector with throttle Stomata Discharge electrode Product size Unit：mm Shielded high voltage wire Sliding mounting bolt（M5×20 ） Discharge electrode Air source connector with throttle Stomata Ground terminal High voltage plug... -
Page 9: Installation Position
① P lace the ion bar in the working area where static electricity is to be eliminated. The AP-AB1602A ion bar should be about 100~ 300mm away from the surface of discharged object and the installation angle should be perpendicular to the surface of the charged body. -
Page 10: Precautions For Product Use
Voltage(V) Frequency (Hz) Secondary voltage (V) Insulation class ≤ 7000 AP-AB1602A ≤ 7000 The installation, use and maintenance of the product should also abide by the product manual and the requirements of the following related • standards and specifications: GB 3836.13–2013 Explosive environment Part 13: Repair, overhaul, repair and modification of equipment GB 3836.15–2000 Electrical equipment for explosive gas atmospheres Part 15: Electrical installations in hazardous locations (except coal mines) -
Page 11: Troubleshooting
Operation guide 1. Select the best static discharge position and install the bar body and the supporting power supply firmly. 2. Insert the high-voltage plug of the bar body into the high-voltage output connecting seat of the supporting high-voltage power supply. 3. - Page 12 AP&T Professional electrostatic intelligent monitoring/analysis and elimination solution provider 专 业 创 造 价 值 S p ecia lit y C r ea t es Va l u e Shanghai Anping Static Technology Co.,Ltd Tel : +86-21-64517676 Fax : +86-21-64517673 AP&T Postcode : 200233 Website : www.ap-static.com...
