e-motion H Setup Manual

E-Motion Model H Setup

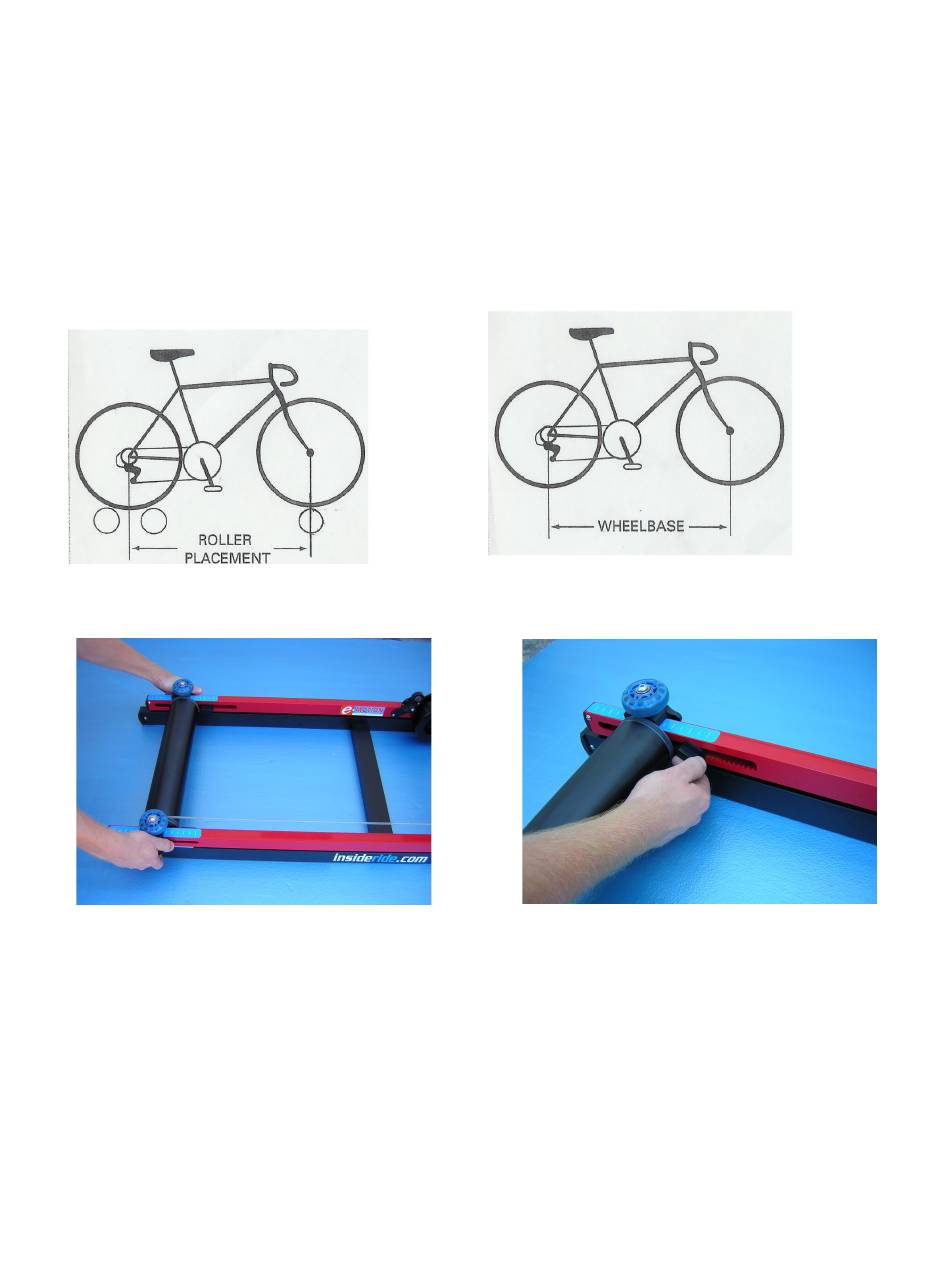

Your rollers ship fully assembled. All you need to do is make a simple

adjustment to fit your bike. Refer to the diagram here, which shows the

proper position of the front drum, directly centered beneath the front

wheel of the bike.

Note: the rollers will only work for bikes with a wheelbase between 36.5

and 42.5 inches

Step 1

Step 2

Step 1 : Loosen both hand knobs located on the ends of the front drum.

Step 2: Rotate the index knobs to move the drum. They are located in slots

next to the front drum. You may rotate both of them at the same time OR

alternate from one side to the other, one turn at a time. After you have

moved the drum to the desired location, place the bike on the rollers and

visually check the position.

Table of Contents

Need help?

Do you have a question about the H and is the answer not in the manual?

Page 1 E-Motion Model H Setup Your rollers ship fully assembled. All you need to do is make a simple adjustment to fit your bike. Refer to the diagram here, which shows the proper position of the front drum, directly centered beneath the front wheel of the bike.
Page 2 E-Motion Model H Setup Resistance adjustment Your rollers are fitted with a magnetic resistance unit which may be set to 4 different positions. Rotate the arm as shown to the numbered stops. The zero number is “off” and the resistance goes higher for the each of the settings 1...
