- Page 1 User’s Manual Mic Preamp QP5 ©2019 by IronAgeAudioworks...
- Page 2 ● Don’t service a box unless you’re a qualified technician. Power The unit is powered by the 500 series chassis it is mounted in. It complies with VPR standards, and can also be used with supplies up to +/-24V. ...

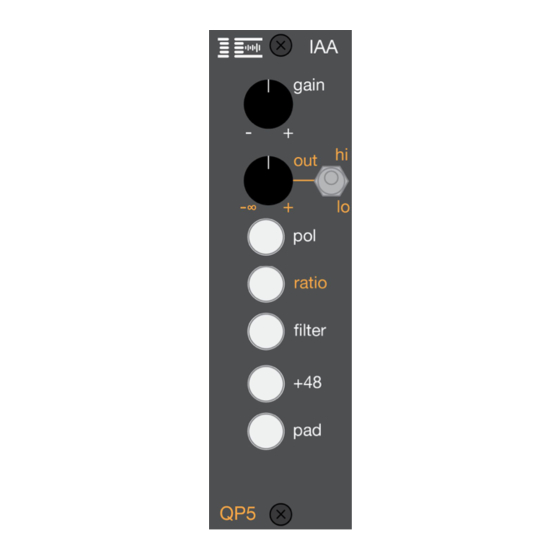

- Page 3 Overview The Iron Age 500 series mic preamp was designed as a utility front end solution. The mic preamp is the most important part of your signal chain, and this preamp gives the detail and depth your signal deserves. ...
- Page 4 500 series pinout. The output is a nominal +4 dBu transformer balanced line output using a Cinemag output transformer via the 500 series pinout. Chassis The Iron Age QP5 is a VPR compliant 500 series module. 3 ©2020 by IronAgeAudioworks...
-
Page 5: Technical Specifications
Technical Specifications Gain Range 28 - 80 dB Maximum Input Level -3.5 dBu Maximum Output Level +29 dBu Input Impedance 2300 Ohms, transformer balanced Output Impedance <75 Ohms, transformer balanced Frequency Response +0.1, -0.75 dB 20Hz-20kHz Actual Measured Noise -107 dBA typical ... -
Page 6: Warranty
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, TO THE EXTENT ALLOWED UNDER APPLICABLE STATE LAW. IN NO EVENT SHALL IRON AGE AUDIOWORKS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. ...
