Iron Age Audioworks 500 Series User Manual

User's Manual

Channel Strip 622

Table of Contents

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Page 2 Thank you for your purchase of an Iron Age 622 500 series module. Iron Age Audioworks is a small team of engineers and designers and we truly appreciate your business. We hope you enjoy using this as much as we enjoyed making it.

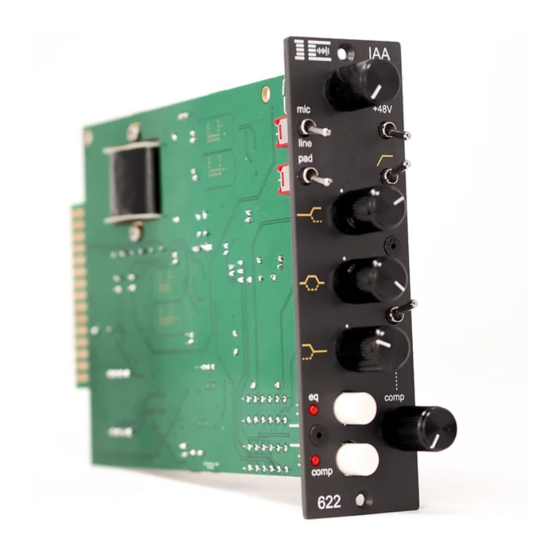

Page 3 Overview The Iron Age 500 series 622 channel strip module was designed as a flexible tracking and mix solution. The module is packed with features like no other in the 500 series format and has the instant Iron Age tone.
Page 4 The PAD switch engages a 20 dB pad in mic mode and a 6 dB pad in line mode. The +48 switch provides phantom power to the microphone. Because of the 500 series format, phantom power has the potential to be turned on inadvertently. Please be aware before turning it on! The HPF switch engages an active 60 Hz high pass filter.
Page 5 The input uses a Jensen mic input transformer to receive a nominal -54 dBu balanced input in mic mode or +4 dBu in line mode via the 500 series pinout. The output is a nominal +4 dBu transformer balanced line output via the 500 series pinout. Chassis The Iron Age H9 is a VPR compliant 500 series module.
Page 6 EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, TO THE EXTENT ALLOWED UNDER APPLICABLE STATE LAW. IN NO EVENT SHALL IRON AGE AUDIOWORKS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.

Channel strip 622
