- Page 1 User’s Manual Mic Preamp / EQ H9 ©2019 by IronAgeAudioworks...
- Page 2 Thank you for your purchase of an Iron Age H9 500 series module. Iron Age Audioworks is a small team of engineers and designers and we truly appreciate your business. We hope you enjoy using this as much as we enjoyed making it.

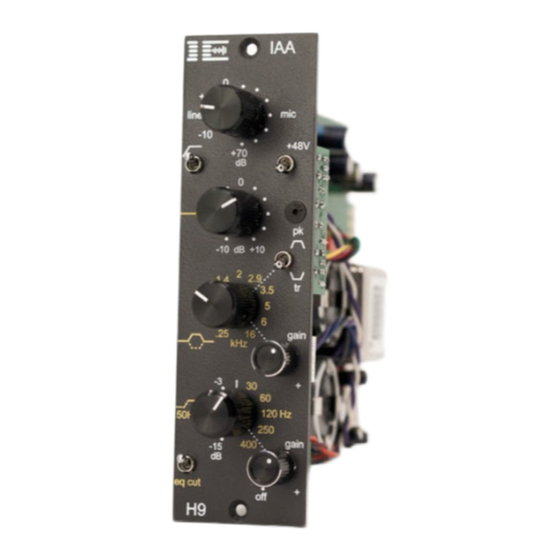

- Page 3 Overview The Iron Age 500 series H9 module was designed as a tribute to famous British consoles of the early 70s. The mic preamp and EQ combine for an instantly recognizable character, and are all around useful tools in tracking or mixdown. Each H9 features a discrete class A mic pre that offers 0 to 70 dB of gain in 10 dB steps.
- Page 4 Controls The GAIN knob adjusts the gain of the preamplifier. In the first three positions, it is in line input mode, which bypasses the mic input transformer and engages a pad. Line mode also disconnects phantom power from the input. In the final seven modes, the net gain is adjusted to the amount indicated.
- Page 5 Inputs and Outputs The input uses a Jensen mic input transformer to receive a nominal -66 dBu balanced input in mic mode or +4 dBu in line mode via the 500 series pinout. The output is a nominal +4 dBu impedance balanced line output via the 500 series pinout. Chassis The Iron Age H9 is a VPR compliant 500 series module.
- Page 6 Technical Specifications Gain Range 0 - 70 dB Line -10 - +10 dB Maximum Input Level -2.5 dBu Line +25 dBu Maximum Output Level +15 dBu Input Impedance 1500 Ohms, transformer balanced Line 10 kOhms, unbalanced Output Impedance 47 Ohms, impedance balanced Frequency Response +/- 1 dB 20Hz-20kHz Actual Measured Noise...
- Page 7 EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, TO THE EXTENT ALLOWED UNDER APPLICABLE STATE LAW. IN NO EVENT SHALL IRON AGE AUDIOWORKS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.
