Instruction Manual
Induction Hob
HB30-2INDFZ/TCR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HB30-2INDFZ/TCR and is the answer not in the manual?

Questions and answers

Related Manuals for EVE HB30-2INDFZ/TCR

Summary of Contents for EVE HB30-2INDFZ/TCR

  • Page 1 Instruction Manual Induction Hob HB30-2INDFZ/TCR...
  • Page 2 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory.
  • Page 3 supply. • Failure to install the appliance correctly could invalidate any warranty or liability claims. Operation and maintenance Electrical Shock Hazard • Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
  • Page 4 Important safety instructions • Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. • Never use your appliance as a work or storage surface. • Never leave any objects or utensils on the appliance. •...
  • Page 5 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;...
  • Page 6 •The appliance is not intended to be operated by means of an external timer or separate remote-control system. Congratulations on the purchase of your new Ceramic Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it.

  • Page 7: Presentation Of The Product

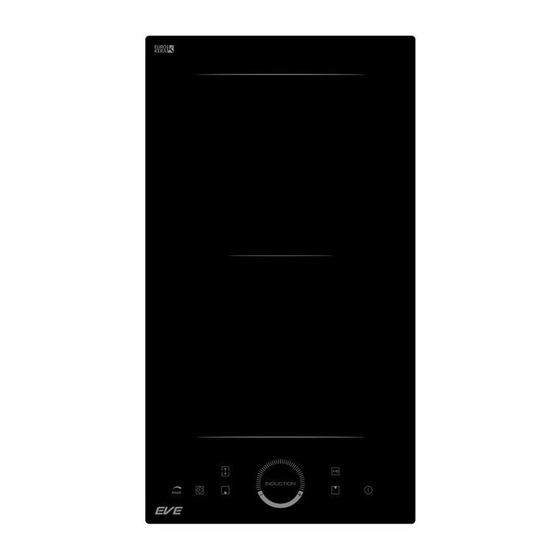

    Presentation of the product Top View 1. 2000 W cook zone, boost 2300w 2. 1500 W cook zone, boost 1800w 3. Glass plate 4. Control panel Control panel 1. Heating zone selection controls 2. Timer control 3. Power / Timer regulating controls 4.

  • Page 8: A Word On Induction Cooking

    A word on induction cooking Induction cooking is a safe, advanced, efficient, economical cooking technology. It functions by electro-magnetic vibrations producing heat directly in the pot, rather than indirectly by heating the glass surface. The glass actually becomes hot only because the pot heats it.
  • Page 9 Selecting the right cooking utensil • Use only cooking utensils with a base suitable for induction. Look for the induction symbol on the packaging or on the bottom of the pot. • You can check if your pan is suitable by doing a magnet test. Drag a magnet over the bottom of the pot.

  • Page 10: Using Your Induction Hob

    Using your induction hob To start cooking 1. Touch the ON/OFF control. After power on, the buzzer beeps once, all displays show “ – “ or “ – – “, indicating that the induction hob has entered the state of standby mode. 2.

  • Page 11: When You Have Finished Cooking

    When you have finished cooking 1. Touching the heating zone selection control that you wish to switch off。 2. Turn the cooking zone off by slide along the “—” to the left point. Make sure the power display shows “0”, then shows “H”. and then Turn the whole cooktop off by touching the ON/OFF control.
  • Page 12 1. Touch the heating zone selection button that you wish to boost, an indicator next to the key will flash. 2. Touch the Boost button, the heating zone will begin to work at Boost mode. The power display will show “P” to indicate that the zone is boosting. 3.
  • Page 13 1. Touch the heating zone selection button that you wish to use STOP + GO, an indicator next to the key will flash. 2. Touch the button STOP+GO, the cooking zone indicator will show “ll”. And then the operation of the induction cooktop will be deactivate within the scope of all cooking zones, except the STOP+GO, on/off and lock keys.
  • Page 14 As big zone 1.To activate the flexible area as a single big zone, simply press the dedicated key. 2. The power setting works as any other normal area. As two independent zones To use the flexible area as two different zones with different power settings, press the dedicated key again and the zones will return into their old settings.

  • Page 15: Restrictions When Using

    Restrictions when using In this hob every zone can work with Boost function. If you need to use boost, first make sure that the other zone is at the maximum power level of 5. Otherwise the symbols will flash on the display of the selected zone and power level is automatically set.

  • Page 16: Locking The Controls

    Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the “boost”...

  • Page 17: Using The Timer As A Minute Minder

    Protection by automatic stop Automatic stop is a safety protection feature of your induction cooking hob. It halts automatically if ever you forget to turn off your cooking. The default working time at various power levels is indicated in the table below: Level of power Default working time (hours)
  • Page 18 increase by 10 minutes. If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute. 4. Touch the ‘Timer’, the timer is cancelled, and the “--” will show in the minute display. 5. When the time is set, it will begin to count down immediately.
  • Page 19 Hint: Touch the “-” or “+” control of the timer once will decrease or increase by 1 minute. Touch and hold the “-” or “+” control of the timer will decrease or increase by 10 minutes. 4. Touching the heating zone selection control, and then touch the “Timer”, the timer is cancelled, and the“--”...

  • Page 20: Cooking Instructions

    (set to 6 minutes) (set to 3 minutes) 2. When cooking timer expires, the corresponding cooking zone will be switch off automatically and show “H” . NOTE: If you want to change the time after the timer is set, you have to start from step 1 Cooking instructions Pay attention when frying, because oil and fat heat up very quickly,...

  • Page 21: Heat Settings

    then place the meat in. 4. Turn the steak once only during cooking. The exact cooking time depends on the thickness of the steak and the cooking you desire. The time may vary from 2 to 8 minutes each side. Touch the steak to judge how it is cooked – the firmer it is, the more “well done”.

  • Page 22: Maintenance And Cleaning

    • stir-fry • searing • bringing soup to the boil • boiling water Maintenance and cleaning What? How? Important! Every day stains on 1. Cut power to cooking hob. • When the electric power is cut, the glass (finger and 2.

  • Page 23: Tricks And Tips

    Tricks and tips Problem Possible causes Necessary action Induction hob cannot No electric power Ensure induction hob is connected to be switched on. the power and it is switched on. Check whether there is a power cut in your building or region. If the problem persists after checking, call a qualified technician.
  • Page 24 Pots do not heat and Induction hob may not detect Use cooking pots for induction screen display. the pot, because it is not suited cooking. See the section “Selecting to induction cooking. the right cooking utensil”. Induction hob may not detect Centre the pan and ensure its base the pot, because it is too small corresponds to the size of the cooking...

  • Page 25: Technical Specifications

    induction cooking hob. Technical specifications Cooking hob 10033015 Cooking zones 2 zones Voltage 220-240 V ~ Electric power installed 3000-3800 W Dimensions L×W × H(mm) 288 X 520 X 62 Housing dimensions A × B (mm) 268 X 500 The weight and dimensions are approximate. We are continually improving our products, and we may modify the specifications, designs and models without notice.

  • Page 26: Before Locating The Fixing Brackets

    L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X (mm) 50 mini Always ensure the induction cooking hob is well ventilated and air inlet and outlet are not blocked. Ensure induction cooking hob is in good condition, as indicated above Remark: the safety distance between hob and furniture above it should be at least 760 mm.

  • Page 27: Connecting The Hob To The Mains Power Supply

    Cautions 1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. 3.
  • Page 28 1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. 2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
