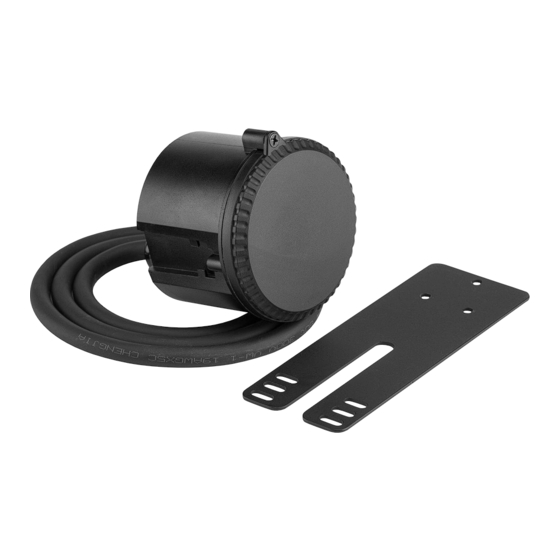

- Page 1 INSTALLATION & MAINTENANCE MANUAL HBLS (sensor for HBL fittings) 230 V 50Hz...
- Page 2 GENERAL INSTRUCTIONS These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following product: HBLS (sensor) SAFETY • Installation of this sensor should only be carried out by a qualified electrician or competent person to the latest Building and current IEE Wiring Regulations (BS7671) HBLS •...
- Page 3 Earth – green/yellow Neutral – blue Live – brown (Sensor) (Sensor) Neutral - blue Live - brown White: Dim - Black: Dim - Switched live – yellow (Sensor) Blue: Dim + Red: Dim + Fig 1 Fig 1 SENSOR SETUP SENSOR SETUP Detection area Can be reduced by selecting the dip switch layout below. Detection area Detection Detection area can be adjusted from a maximum range of 15 meters down to 7 meters by observing Area 100% the below settings...
- Page 4 Standby period Refers to the time period that the luminaire will remain at low light level in the absence of movement If set to “DISABLE”, the low light level will permanently be maintained until motion is detected STANDBY PERIOD DISABLE 60min 30min 10min...
- Page 5 Disable 200lx 100lx 50lx DETECTION DIAGRAM DETECTION DIAGRAM Ceiling Up to 15m Floor Up to 16m • Switch on power supply and check for correct operation WARNING This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance testing. Irreparable damage will occur if this instruction is not followed. GENERAL The unit should be recycled in the correct manner when it reaches the end of its life.
- Page 6 If this product should fail within its warranty period it should be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation costs associated with the replacement product. Your statutory rights are not affected.
