INSTALLATION AND
USER GUIDE
Installation and Warranty Card
To be read and retained by the user.

Advertisement

loading
Need help?

Need help?

Do you have a question about the OPÉRA B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CONVECTAIR OPÉRA B

Summary of Contents for CONVECTAIR OPÉRA B

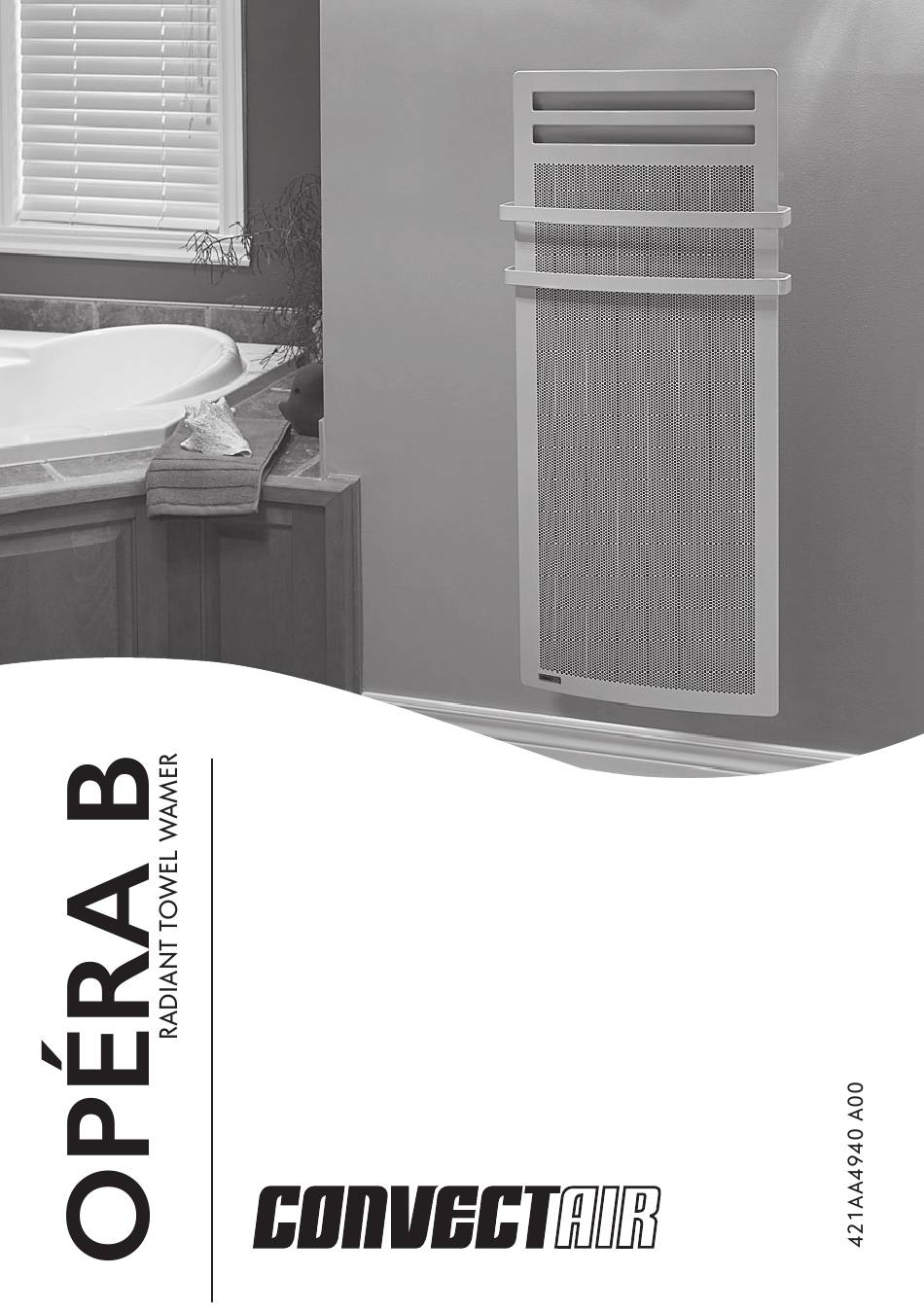

  • Page 1 INSTALLATION AND USER GUIDE Installation and Warranty Card To be read and retained by the user.
  • Page 2 Dear user, Thank you for your trust and congratulations on the purchase of your new CONVECTAIR electric heater. We design and manufacture the highest quality devices in the electrical industry. For the ultimate in comfort, and for maximum performance from your devices, please read the installation and operating instructions included in this manual.
  • Page 3 The smart technology that electric heating lacked. Your Opera B device is compatible with the Muller Intuitiv technology that uses the detection sensor of compatible Convectair heaters to understand your lifestyle and to suggest concrete and appropriate measures to save energy. Compatibility with voice assistants.

  • Page 4: Caution, Hot Surface

    Please read carefully the whole installation and operating instructions and in particular the following. CAUTION, HOT SURFACE ATTENTION: Some parts of the appliance may become hot and cause light burns. A very close attention has to be taken if children or vulnerable persons are present. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless...
  • Page 5 (1 in) (10 in) CAUTION: PLEASE MAINTAIN THE MINIMUM REQUIRED CLEARANCES (Fig. A). CONVECTAIR RECOMMENDS AN INSTALLATION HEIGHT OF 25 CM (10"). HEATER INSTALLATION: This heater must be installed in accordance with national and local codes and CONVECTAIR recommends an These instructions have been established at the moment of the heater’s...
  • Page 6 The installation must comply with applicable national and local standards, and CONVECTAIR recommends that it be done by a This manual was prepared at the time of manufacture of the device and in accordance with the standards applicable at the time.
  • Page 7 Figure B Installation of towel rails Hole spacing Bottom rail to be inserted BARRE INFÉRIEURE À INSÉRER Outline PAR LE HAUT DE L’APPAREIL. over the unit’s top (Vis prémontées sur la carrosserie) of unit (preassembled screws). BARRE SUPÉRIEURE À INSÉRER Top rail to be inserted Locking PAR LE HAUT DE L’APPAREIL...
  • Page 8 CONVECTAIR recommends that your heater be installed by a codes. This heater must be connected to a 240 Volt (60 cycles) circuit and with an appropriate breaker. Cut all electrical current before connecting the heater to avoid shocks and damages to the unit.
  • Page 9 ACTIONS PRESS DISPLAY Switch the heating Set the temperature. Modes To switch from one mode to another. Comfort mode To adjust to the desired set point. Economy mode Recommended for absences of less than Frost protection mode Recommended for “Open window” To enable or disable the function.
  • Page 10 “Open window” Behavioral Heating Programs function indicator indicator light Module compartment for future optional use Heating Selection of Desired manual Automatic Heating temperature operation modes operation key setting keys indicator light 5.1 SWITCHING ON AND OFF PRESS ACTIONS DISPLAY Switching on. The green indicator lights up and the screen displays The orange indicator lights up...
  • Page 11 5.2 COMFORT TEMPERATURE SETTING PRESS ACTIONS DISPLAY Increase or decrease the desired temperature set point. to store your favorite set point temperature. To adjust the temperature to your ideal comfort level, let the temperature stabilize for a few hours, with doors closed. NOTE During the temperature setting, an indicator allows you to control but also adjust the...

  • Page 12: Frost Protection Mode

    5.4 FROST PROTECTION MODE PRESS ACTIONS DISPLAY Press successively to access the “FREEZE PROTECTION” mode. The screen displays: NOTE use of this mode is recommended for maximum savings. It helps maintain the temperature of the room above freezing (approximately 7°C). 5.5 AUTOMATIC OPERATION PRESS ACTIONS...
  • Page 13 5.6 MANUAL OPERATION PRESS ACTIONS DISPLAY All automatic functions are disabled (programming) and the device switches to either: • Comfort mode and you can adjust the set point temperature as you wish. • Eco mode (this operating mode is recommended during absences •...
  • Page 14 5.7 ABSENCE DETECTION (CONTINUED) CHOICE OF OPTIONS PRESS ACTIONS DISPLAY First, the device must be Simultaneously press and hold until detection options 1, 2 or OFF are displayed. Allows you to switch from one option to another. See the explanation on the following page.
  • Page 15 5.7 ABSENCE DETECTION (CONTINUED) EXPLANATION OF OPTIONS DETECTION PILOT WIRE ORDER RESULT Gradual transition COMFORT absence ECO mode Immediate transition COMFORT in Comfort ECO mode movement DETECTION PILOT WIRE ORDER RESULT Gradual transition COMFORT absence ECO mode Gradual transition COMFORT Immediate transition movement in Comfort...
  • Page 16 5.8 OPEN WINDOW DETECTION FUNCTION PRESS ACTIONS DISPLAY Enable the function. Press and hold until the window icon is displayed on the screen. The window icon and the green event. Following an interruption, press again to restart the device. Disable the function. Press and hold until the window icon disappears from the screen.
  • Page 17 5.9 PARENTAL LOCK WITH CODE SEQUENCE FOR LOCKING WITH YOUR PERSONAL CODE approx. Modify Modify Modify Modify using using using using with with with with with with NOTE This function enables you to block access to device settings to remains active, even when the parental lock is enabled. SEQUENCE FOR UNLOCKING WITH YOUR PERSONAL CODE Modify Modify...
  • Page 18 5.10 CONSUMPTION SCALE INFORMATION DISPLAY This indicator provides information about the Consumption scale Indicator Green = Economical Red = Less economical NOTE For economical operation, it is recommended not to exceed a temperature of 19°C on average over the entire dwelling. 5.11 SETTING OF AUXILIARY FUNCTIONS PRESS ACTIONS...
  • Page 19 5.11 SETTING OF AUXILIARY FUNCTIONS (CONTINUED) PRESS ACTIONS DISPLAY ENABLE / DISABLE THE BUZZER Select one of these buzzer options. | = Enabled O = Disabled NOTE The buzzer remains active for the Allows you to switch to the next settings screen. CELSIUS / FAHRENHEIT SELECTION Select one of these options.
  • Page 20 ORDERS ACTION DISPLAY Heating Heating is instantly AUTO Lowering of the temperature by 3.5°C relative to the Comfort position or at your AUTO choice. Lowering of the temperature by 1°C relative to the Comfort position. AUTO Lowering of the temperature Comfort-2 by 2°C relative to the Comfort position.
  • Page 21 A- SETTING THE TIME PRESS ACTIONS DISPLAY NOTE In all cases, in order to use the programming, you must set the time and day on your device In the event of a power outage lasting more the time on your device. Simultaneously press for to access the programming menu.
  • Page 22 B - SETTING THE DAY PRESS ACTIONS DISPLAY NOTE Start with the previous section A - SETTING THE TIME to access the programming menu. Select the desired day using these keys. JO: LU = Monday JO: MA = Tuesday JO: ME = Wednesday JO: JE = Thursday JO: VE = Friday DY: SA = Saturday...

  • Page 23: Programming Set Up

    5.13 INTERNAL PROGRAMMING (CONTINUED) PROGRAMMING SET UP PRESS ACTIONS DISPLAY NOTE This mode enables the automatic operation of your heater at either the COMFORT set point or the ECO set point. Simultaneously press for to access the programming menu. Select one of these options. ON = Continue OFF = Exit the setting “ON”...
  • Page 24 5.13 INTERNAL PROGRAMMING (CONTINUED) PROGRAMMING SET UP PREDEFINED PROG. CHOICE MEANING The P1 program enables you to use the Comfort set Monday to Friday point temperature from 17h - 23h 5h - 9h 0h 2 4 10 12 14 16 18 20 22 24 and from 5 to 11 p.m.

  • Page 25: Sequence Of Actions

    5.13 INTERNAL PROGRAMMING (CONTINUED) PROGRAMMING SET UP PRESS ACTIONS DISPLAY NOTE This mode enables the automatic operation of your heater at either the COMFORT set point or the ECO set point. Simultaneously press for to access the programming menu. Select one of these options. ON = Continue OFF = Exit the setting “ON”...
  • Page 26 5.13 INTERNAL PROGRAMMING (CONTINUED) Example of PROGRAMMING SET UP programming SEQUENCE OF ACTIONS RESULT You want to set Time range the COMFORT set point temperature ranges: will return to to 9 a.m., midday the initial Pr Modify the end Modify the start position.
  • Page 27 NOTE This operation is optional. the device and on your thermometer. It is possible to harmonize both displays. Procedure: • This setting can only be performed if your device • All doors and windows must be closed. • Wait for the temperature in the room to stabilize (at least possible.
  • Page 28 THE DEVICE IS NOT HEATING. VERIFICATON PRESS ACTION Power up the device. Make sure the digital screen is active. Successively press to reach the comfort position. Make sure the installation If the digital screen has circuit breakers are pushed in still not turned on.
  • Page 29 (once every two weeks) by vacuuming the air inlets and outlets. Your CONVECTAIR device becomes hot when in use. Particular care must be taken in order to educate young children. Do not insert objects in the grids, as this may cause short circuits, Any other use not recommended by CONVECTAIR may cause short after some time.

  • Page 30: Warranty

    2000W - 240V~ 60Hz 150707 Manufacturer No. 412 8.5 WARRANTY All CONVECTAIR devices carry a double warranty: a two-year warranty against defects in materials and workmanship on all Both are applicable from the date of purchase by the provided with each device.
