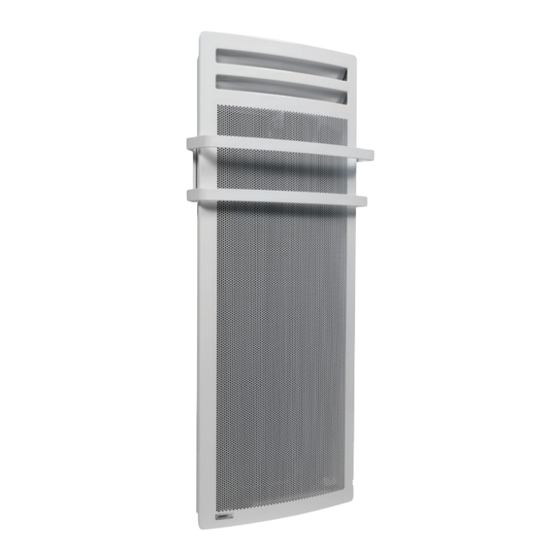

CONVECTAIR OPERA B 7635-C10-BB Installation And User Manual

Radiant towel wamer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION AND
USER GUIDE
Installation and Warranty Card
To be read and retained by the user.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPERA B 7635-C10-BB and is the answer not in the manual?

Questions and answers

Related Manuals for CONVECTAIR OPERA B 7635-C10-BB

Summary of Contents for CONVECTAIR OPERA B 7635-C10-BB

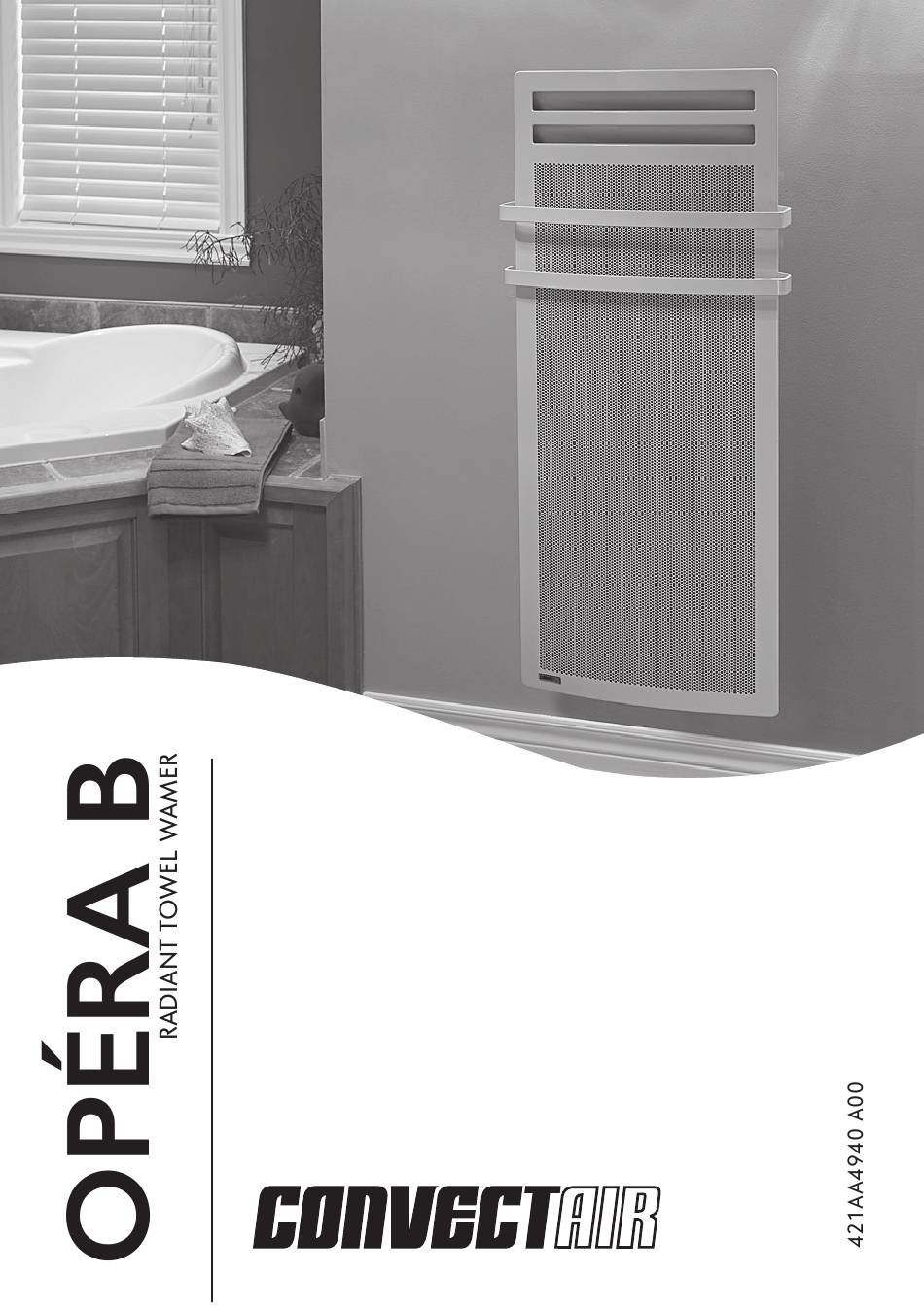

  • Page 1 INSTALLATION AND USER GUIDE Installation and Warranty Card To be read and retained by the user.
  • Page 2 Dear user, Thank you for your trust and congratulations on the purchase of your new CONVECTAIR electric heater. We design and manufacture the highest quality devices in the electrical industry. For the ultimate in comfort, and for maximum performance from your devices, please read the installation and operating instructions included in this manual.
  • Page 3 The smart technology that electric heating lacked. Your Opera B device is compatible with the Muller Intuitiv technology that uses the detection sensor of compatible Convectair heaters to understand your lifestyle and to suggest concrete and appropriate measures to save energy. Compatibility with voice assistants.

  • Page 4: Caution, Hot Surface

    Please read carefully the whole installation and operating instructions and in particular the following. CAUTION, HOT SURFACE ATTENTION: Some parts of the appliance may become hot and cause light burns. A very close attention has to be taken if children or vulnerable persons are present. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless...
  • Page 5 (1 in) (10 in) CAUTION: PLEASE MAINTAIN THE MINIMUM REQUIRED CLEARANCES (Fig. A). CONVECTAIR RECOMMENDS AN INSTALLATION HEIGHT OF 25 CM (10"). HEATER INSTALLATION: This heater must be installed in accordance with national and local codes and CONVECTAIR recommends an installation by a qualified electrician.
  • Page 6 The installation must comply with applicable national and local standards, and CONVECTAIR recommends that it be done by a certified electrician. This manual was prepared at the time of manufacture of the device and in accordance with the standards applicable at the time.
  • Page 7 Figure B Installation of towel rails Hole spacing Bottom rail to be inserted BARRE INFÉRIEURE À INSÉRER Outline PAR LE HAUT DE L’APPAREIL. over the unit’s top (Vis prémontées sur la carrosserie) of unit (preassembled screws). Top rail to be inserted BARRE SUPÉRIEURE À...
  • Page 8 The first time your Convectair heats, a light smoke could be released due to the burning of production residues. This is normal and should disappear after 2 to 3 minutes.
  • Page 9 ACTIONS PRESS DISPLAY Switch the heating on or off. Set the temperature. Modes To switch from one mode to another. Mode Comfort mode Mode To adjust to the desired set point. Mode Mode Economy mode Recommended for Mode absences of less than 24 hr.

  • Page 10: Switching On And Off

    “Open window” Behavioral Heating Programs function indicator indicator - predefined (P1/P2/P3) light - user-defined (P4/P5/P6) Module compartment for future optional use Heating Selection of Desired manual Automatic Heating temperature On/Off operation modes operation key On/Off key setting keys indicator light Be sure to remove the protective film from the display.
  • Page 11 5.2 COMFORT TEMPERATURE SETTING PRESS ACTIONS DISPLAY Increase or decrease the desired temperature set point. Press for 3 seconds to store your favorite set point temperature. To adjust the temperature to your ideal comfort level, let the temperature stabilize for a few hours, with doors closed.

  • Page 12: Automatic Operation

    5.4 FROST PROTECTION MODE Mode PRESS ACTIONS DISPLAY Press successively to access the “FREEZE PROTECTION” mode. The screen displays: Mode NOTE In the event of a long-term absence (more than 24 hr), use of this mode is recommended for maximum savings. It helps maintain the temperature of the room above freezing AUTO (approximately 7°C).

  • Page 13: Manual Operation

    5.6 MANUAL OPERATION PRESS ACTIONS DISPLAY All automatic functions are disabled (programming) and the device switches to either: • Comfort mode and you can adjust the set point temperature as you wish. • Eco mode (this operating mode is recommended during absences of less than 24 hr).
  • Page 14 5.7 ABSENCE DETECTION (CONTINUED) CHOICE OF OPTIONS PRESS ACTIONS DISPLAY First, the device must be turned off. Simultaneously press and hold until detection options 1, 2 or OFF are displayed. Allows you to switch from one option to another. Option 1 Prioritizes savings See the explanation on the following page.
  • Page 15 5.7 ABSENCE DETECTION (CONTINUED) EXPLANATION OF OPTIONS OPTION 1 – PRIORITIZES COMFORT DETECTION PILOT WIRE ORDER RESULT Gradual transition COMFORT in ECO (90 min) absence ECO mode absence Immediate transition COMFORT in Comfort movement ECO mode movement OPTION 2 – PRIORITIZES COMFORT DETECTION PILOT WIRE ORDER RESULT...
  • Page 16 Mode AUTO Mode 5.8 OPEN WINDOW DETECTION FUNCTION PRESS ACTIONS DISPLAY Enable the function. Press and hold until the window icon is displayed on the screen. Mode The window icon and the green indicator flash when the device turns off following a detection event.
  • Page 17 du Lundi au Vendredi 0h 2 4 10 12 14 16 18 20 22 24 AUTO Mode 17h à 23h 5h à 9h Indicateur de du Lundi au Vendredi consommation 0h 2 4 10 12 14 16 18 20 22 24 5.9 PARENTAL LOCK WITH CODE 12h à...
  • Page 18 5.10 CONSUMPTION SCALE INFORMATION DISPLAY This indicator provides information about the Consumption effect of your settings on your consumption. scale Indicator Green = Economical Red = Less economical NOTE For economical operation, it is recommended not to exceed a temperature of 19°C on average over the entire dwelling. 5.11 SETTING OF AUXILIARY FUNCTIONS PRESS ACTIONS...
  • Page 19 5.11 SETTING OF AUXILIARY FUNCTIONS (CONTINUED) PRESS ACTIONS DISPLAY SETTINGS SCREEN 2 ENABLE / DISABLE THE BUZZER Select one of these buzzer options. | = Enabled O = Disabled NOTE The buzzer remains active for the heating On/Off key. Allows you to switch to the next settings screen.
  • Page 20 Mode Mode 5.12 DETAILS OF THE 6 ORDERS GIVEN VIA THE PILOT WIRE Mode ORDERS ACTION DISPLAY Mode Heating Heating is instantly turned off. AUTO AUTO Mode AUTO Mode Lowering of the temperature by 3.5°C relative to the Comfort position or at your AUTO choice.
  • Page 21 Mode du L 5.13 INTERNAL PROGRAMMING (CONTINUED) AUTO AUTO A- SETTING THE TIME 0h 2 PRESS ACTIONS DISPLAY du L Indicateur de consommation NOTE Indicateur de consommation In all cases, in order to use the programming, AUTO AUTO you must set the time and day on your device 0h 2 du L (factory setting 00:00).
  • Page 22 Mode Mode AUTO AUTO Mode AUTO AUTO Indicateur de consommation Mode AUTO AUTO 5.13  INTERNAL PROGRAMMING (CONTINUED) B - SETTING THE DAY PRESS ACTIONS DISPLAY AUTO AUTO AUTO AUTO NOTE Indicateur de consommation Start with the previous section A - SETTING THE TIME to access the programming menu.

  • Page 23: Programming Set Up

    du Lundi au Vendredi 5.13 INTERNAL PROGRAMMING (CONTINUED) 17h à 23h 5h à 9h PROGRAMMING SET UP du Lundi au Vendredi 17h à 23h 5h à 9h 0h 2 4 10 12 14 16 18 20 22 PRESS ACTIONS DISPLAY du Lundi au Vendredi 0h 2 4 10 12 14 16 18 20 22...
  • Page 24 5.13 INTERNAL PROGRAMMING (CONTINUED) PROGRAMMING SET UP PREDEFINED PROGRAMS (P1 / P2 / P3) PREDEFINED PROG. CHOICE MEANING The P1 program enables you to use the Comfort set Monday to Friday point temperature from 17h - 23h 5h - 9h 5 to 9 a.m.

  • Page 25: Sequence Of Actions

    5.13 INTERNAL PROGRAMMING (CONTINUED) PROGRAMMING SET UP PRESS ACTIONS DISPLAY NOTE This mode enables the automatic operation of your heater at either the COMFORT set point or the ECO set point. Simultaneously press for 3 seconds to access the programming menu. Select one of these options.
  • Page 26 5.13 INTERNAL PROGRAMMING (CONTINUED) Example of PROGRAMMING SET UP “P4” programming SEQUENCE OF ACTIONS RESULT You want to set Time range the COMFORT set No. 3 from point temperature 6 p.m. to for 3 different time 10 p.m. is ranges: confirmed. You mornings from 6 a.m. will return to to 9 a.m., midday the initial Pr...
  • Page 27 HARMONIZATION OF DISPLAYS (THERMOSTAT / THERMOMETER) NOTE This operation is optional. There may be a difference between the readings displayed on the device and on your thermometer. It is possible to harmonize both displays. Procedure: • This setting can only be performed if your device is set between 17 and 23°C.
  • Page 28 THE DEVICE IS NOT HEATING. VERIFICATON PRESS ACTION Power up the device. Make sure the digital screen is active. Successively press to reach the comfort position. Make sure the installation If the digital screen has circuit breakers are pushed in still not turned on.

  • Page 29: Maintenance

    When starting up the CONVECTAIR device for the first time, it may emit light smoke caused by the heating of particles resulting from the production. This phenomenon is completely normal and will...

  • Page 30: Warranty

    Manufacturer No. 412 8.5 WARRANTY 2 YEARS against defects / 5 YEARS for the heating element. All CONVECTAIR devices carry a double warranty: a two-year warranty against defects in materials and workmanship on all parts, and a five-year warranty on the heating element itself.
