GB
Original user manual
Please read carefully before using your machine

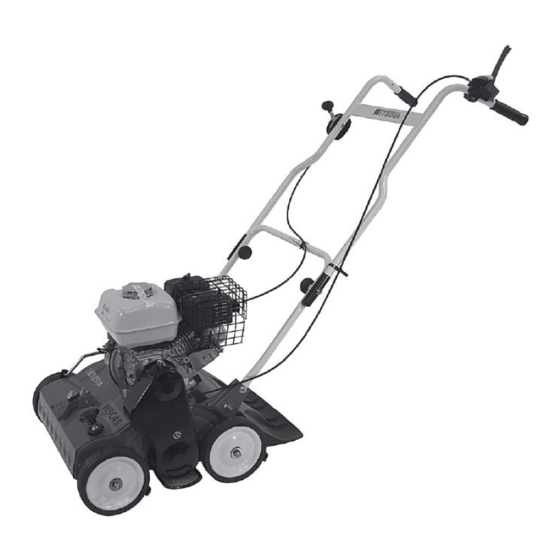

MSC45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSC45 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Etesia MSC45

Summary of Contents for Etesia MSC45

  • Page 1 Original user manual Please read carefully before using your machine MSC45...

  • Page 2: Table Of Contents

    CONTENTS 1• Service manual - Foreword ..................................3 2• Your safety and that of others ................................4 3• State and scope of delivery ..................................5 4• Description and marking ..................................6 5• Assembly ........................................ 7 6• Putting into service ....................................10 7•...

  • Page 3: 1• Service Manual - Foreword

    In accordance with article L.111-3 of the consumer code, ETESIA of the environment. undertakes to supply your dealership with spare parts, original or com-...

  • Page 4: 2• Your Safety And That Of Others

    2• YOUR SAFETY AND THAT OF OTHERS 2•1 USING IN CONFORMITY WITH THE • Spare parts must meet the technical requirements set by the manufacturer. This is always guaranteed for original spares. INTENDED PURPOSE • Carry out periodical inspections at the prescribed frequency or as indicated in the service manual! •...

  • Page 5: 3• State And Scope Of Delivery

    2• YOUR SAFETY AND THAT OF OTHERS • Replaced a damaged exhaust silencer. • Carry out a visual inspection before use to ensure that the wor- king tools and shafts are not damaged. To avoid imbalance, damaged shafts must always be replaced in sets. 3•...

  • Page 6: 4• Description And Marking

    4• DESCRIPTION AND MARKING 0,7 x 0,6 Danger area 1. Engine 11. Manufacturer’s address 2. Throttle lever 12. Engine manufacturer 3. Work unit control lever 13. Engine power 4. Collapsible handle 14. Machine number 5. Handle height adjustment 15. Weight 6.

  • Page 7: 5• Assembly

    5• ASSEMBLY IMPORTANT! Do not fill with oil or petrol yet. Before doing this, familiarise yourself with the whole machine, the assembly procedure and the tools and parts required. Delivery state Anti-projection protection with fixing parts Insert the fixing rod Place the flat spring and slide it on with a socket spanner Handle...
  • Page 8 5• ASSEMBLY Insert the screw with washer into the han- 1 x M8 x 25 dle support holes and the lower part of the handle 1 x 8,4-24-2 1 x M8 (S) Place the washer and pre-fit the nut wit- 1 x 8,4-24-2 hout tightening it 1 x SW 5...
  • Page 9 5• ASSEMBLY Adjust the handle according to your height. Then tighten the screws 2 x SW 13 1 x M6 x 65 Assemble the throttle lever 1 x 6,4-12-1,5 1 x 6,4-12-1,5 Screw on the washer and lock nut 1 x M6 (S) Tighten the screws IMPORTANT! Do not over-tighten the...

  • Page 10: 6• Putting Into Service

    6• PUTTING INTO SERVICE 6•1 BASIC SAFETY INSTRUCTIONS FOR • Do not start the engine if you are in front of the ejection duct. • Never place the hands or feet on or under rotating parts. Always NORMAL OPERATION stay away from the discharge opening. •...
  • Page 11 6• PUTTING INTO SERVICE 6•2 ADJUSTING THE HEIGHT OF THE HANDLE DANGER! The tank must be empty so that no petrol can escape. Petrol can catch fire while draining. WARNING! Switch the motor off. Protect the machine against unintentional starting. 1) The height of the handle is adjusted by the oblong 2) The handle height can be adjusted continuously by hole in the wall of the housing.
  • Page 12 6• PUTTING INTO SERVICE 3) The scarifying depth is set by turning the adjusting 4) Turn clockwise (+) to raise the blades, anticlockwise screw (-) to lower the blades. 5) Tighten the lock nut while maintaining the adjusting screw IMPORTANT! The work depth is set so that the blades only go 3 to 5 millimetres into the soil without damaging the grass roots.
  • Page 13 6• PUTTING INTO SERVICE 6•5 BLADE DRIVE 1) When the side lever is pressed, the clutch lift stop 2) Blade drive active device is freed. 6•6 STARTING/STOPPING THE HONDA GX MOTOR (QUICK GUIDE) Read the manufacturer’s instructions for use DANGER! Never allow the engine to run in enclosed or narrow spaces.
  • Page 14 6• PUTTING INTO SERVICE 3. STOPPING THE ENGINE 1) Place the engine speed le- 2) Turn the switch OFF. 3) Close the fuel valve. ver on 6•7 CHANGING THE SCARIFIER UNIT DANGER! Switch the motor off. Protect the machine against unintentional starting. DANGER! Close the fuel valve.
  • Page 15 6• PUTTING INTO SERVICE 5) Loosen the release device by pressing on the spring. 6) Push the release device upwards. CAUTION! There is a danger of pinching. 7) Turn the hook on the side. 8) Lower the interchangeable chassis. 9) Remove by pulling forward. 6•7•1 VARIOUS SCARIFYING UNITS 2) Toothed spring shaft MZ45R 1) Fixed blades MZ45C...
  • Page 16 6• PUTTING INTO SERVICE 6•7•2 FITTING SCARIFYING UNITS 2) Fitting instructions: Make sure the pin seats properly 1) Insert the scarifying unit in the housing. into its housing. 4) Now lower the locking until the locking device has 3) Raise the scarifying unit and hang it on the hook. acted.

  • Page 17: 7• Recommendations For Obtaining A Green Lawn

    7• RECOMMENDATIONS FOR OBTAINING A GREEN LAWN • A scarifier frees a lawn of weeds and moss. This matted layer, You should always add fertilizer when the sky is overcast and not composed of dead plant fragments, prevents air, water and in very hot periods or in high wind.
  • Page 18 8• MAINTENANCE AND SERVICING • Use internal combustion engines only in well ventilated areas! The • Regularly check the machine and in the interests of safety replace any exhaust gases contain toxic carbon monoxide. Comply with the regu- damaged parts. lations in force in the workplaces! •...
  • Page 19 8• MAINTENANCE AND SERVICING 8•3 OIL LEVEL CHECK Read the manufacturer’s instructions for use. WARNING! Switch off the engine and allow to cool. The machine must be protected against accidental starting. IMPORTANT! If the engine runs with an insufficient quantity of oil, this can cause serious damage. Only oils recommended by the manufacturer should be used.
  • Page 20 8• MAINTENANCE AND SERVICING 4) Remove the filter. 3) Unscrew the screw. 6) Tap the pre-filter carefully or clean it with compressed 5) Carefully remove the pre-filter and clean the vanes. air. 8•5 STORAGE WARNING! Switch off the engine and allow to cool. The machine must be protected against accidental starting. IMPORTANT! If the machine is not used for a long time, it must be stored in the recommended manner.
  • Page 21 8• MAINTENANCE AND SERVICING 8•6 SCARIFIER CLEANING To keep the scarifier in good condition, you should clean it regularly. Remove any loose dirt and dust with a soft brush. Wash plastic surfaces with soap and water. Use the usual products for cleaning vehicles. All remains of cleaning products must be rinsed away with water.

  • Page 22: 9• Maintenance Plan

    9• MAINTENANCE PLAN After a number of hours of service Each time At least At least Each before once every once a time after 3 months year cleaning Check the screws and nuts Check the oil level and top up if necessary First engine oil change Following engine oil changes Check the air filter...

  • Page 23: 10• Breakdowns And Remedies

    10• BREAKDOWNS AND REMEDIES ANORMAL OPERATION PROBABLE CAUSE REMEDY The engine does not start Fuel tank empty Fill with petrol Choke not engaged and engine cold Actuate the choke The spark plug lead is not connected Connect the spark plug lead Fuel pipe blocked Have the fuel pipe cleaned by a specialist workshop Air has penetrated the engine because the carburettor...

  • Page 24: 11• Transport

    11• TRANSPORT WARNING! Switch off the engine and allow to cool. The machine must be protected against accidental starting. Wear strong shoes. The handle must be fixed. 2) Transport with a vehicle: fix the machine with straps. 1) Raise the machine. The front and rear axles are used as fixing points.

  • Page 25: 12• Technical Specifications

    12• TECHNICAL SPECIFICATIONS Wheel base 310 mm Track width 560 mm Width 688 mm Height to engine 650 mm Height of the handle adjustable by approx. 900 mm to approx. 1070 mm Overall length max. 1400 mm (low handle position) Scarifying width 450 mm Scarifying depth...

  • Page 26: 13• Warranty

    ETESIA. Should ETESIA (main or secondary residence). not receive these part(s), a warranty claim would automatically be - Professional use = use of an ETESIA machine, in exchange of rejected. money or not, on public areas to maintain companies or institutions like : hospitals, associations,….or on private fields being owned by...
  • Page 28 13, rue de l’Industrie, 67165 WISSEMBOURG CEDEX declare under our responsibility that the scarifiers, type MSC45 to which this declaration refers, fulfil all the relevant terms of directive 2006/42/EC applicable to them as well as to the provisions of all other applicable European directives :...
  • Page 29 Stamp here please ETESIA SERVICE GARANTIE 13 rue de l'Industrie 67165 WISSEMBOURG CEDEX France...
  • Page 30 This card has to be returned completed to ETESIA upon the first setting up. MODEL: SERIAL NUMBER: WARRANTY CERTIFICATE USER NAME __________________________ Forename _________________________ Street ____________________________ Zip code __________________________ Town ____________________________Country___________________________ Tel _____________________________ Date of purchase _____ _____ 20 __...
