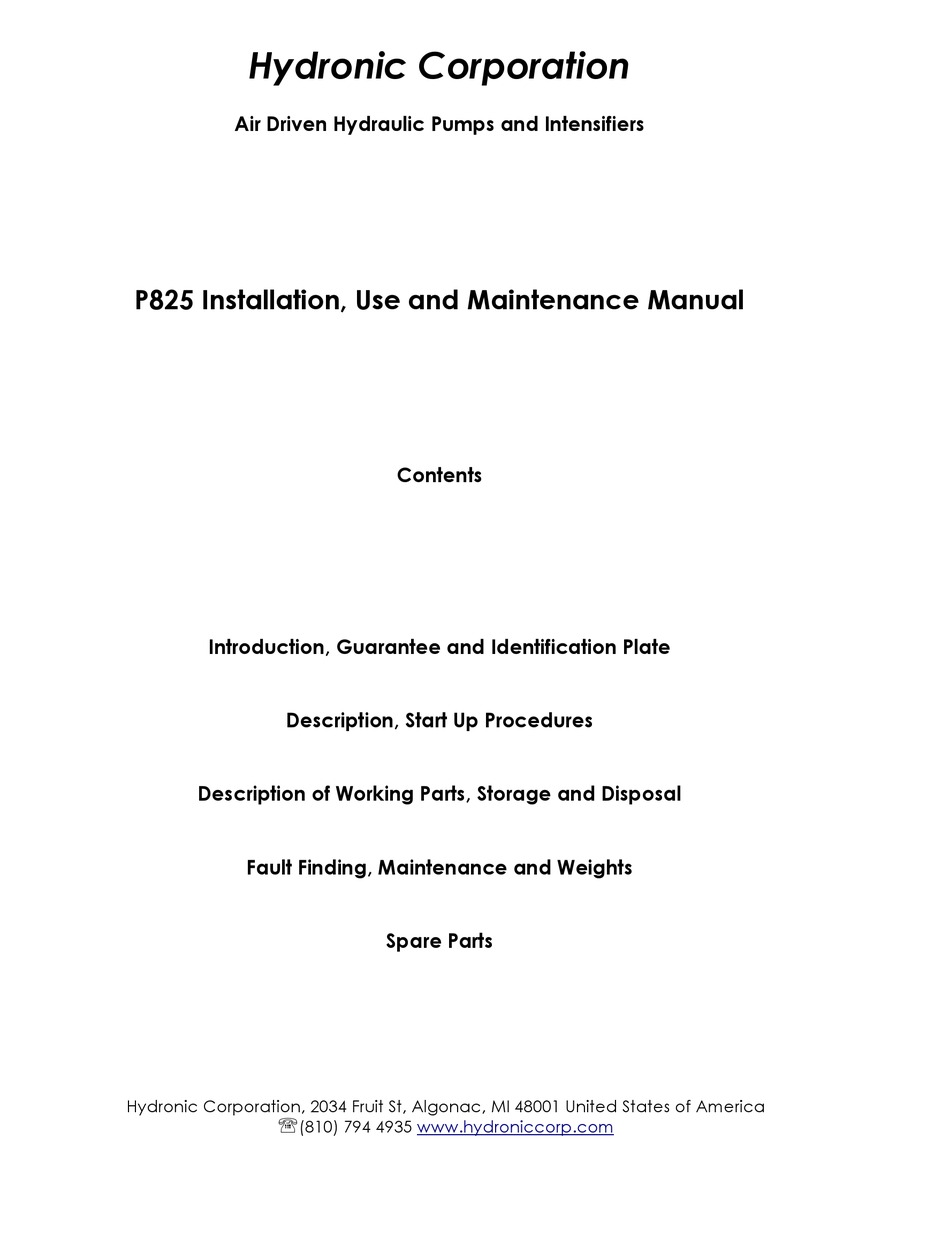

Hydronic Corporation
Air Driven Hydraulic Pumps and Intensifiers
P825 Installation, Use and Maintenance Manual
Contents
Introduction, Guarantee and Identification Plate
Description, Start Up Procedures
Description of Working Parts, Storage and Disposal
Fault Finding, Maintenance and Weights
Spare Parts
Hydronic Corporation, 2034 Fruit St, Algonac, MI 48001 United States of America
℡
(810) 794 4935
www.hydroniccorp.com
Advertisement
Related Manuals for Hydronic P825
Summary of Contents for Hydronic P825
- Page 1 Introduction, Guarantee and Identification Plate Description, Start Up Procedures Description of Working Parts, Storage and Disposal Fault Finding, Maintenance and Weights Spare Parts Hydronic Corporation, 2034 Fruit St, Algonac, MI 48001 United States of America ℡ (810) 794 4935 www.hydroniccorp.com...
- Page 2 The guarantee cannot cover pumps that may have been tampered with. Defective goods must be sent to Hydronic Corporation at Farmington Hills or to the distributor covering the area, freight pre-paid in either case. Any pump returned to us must be accompanied by a full written description of such faults or defects as have been discovered.
- Page 3 ½” bore for the suction line. Application Hydronic air driven hydraulic pumps are designed for operating oil hydraulic circuits and to cover the widest range of requirements to the best advantage. The pump itself operates quite simply, using a known pressure intensification principle.
- Page 4 Hydronic Air Driven Pumps P825 Installation, Use and Maintenance Booklet 4-26-13 Storage If the pump is to be kept out of use for a long period, clean the pump in general and drain the oil from the tank. Cover the pump and store it in a dry, well- protected place.
- Page 5 Hydronic Air Driven Pumps P825 Installation, Use and Maintenance Booklet 4-26-13 Starting - Up Oil pressure can be determined by regulation of the inlet compressed air pressure and bearing in mind the multiplication ratio pre-selected for the pump itself. The models are:...
- Page 6 In case of damage or if in doubt, do not use the pump and contact Hydronic Corporation or your distributor. The packaging [plastic bags, expanded polystyrene, nails, screws, wood, etc.] must not be left within reach of children since they are potential source of danger.
- Page 7 Hydronic Air Driven Pumps P825 Installation, Use and Maintenance Booklet 4-26-13 Gross weight P825 Basic pump of any ratio 46 lbs., 20.9 kgs. Contents of the package The packaging will always contain the following: 1 x air driven hydraulic pump...
- Page 8 Hydronic Air Driven Pumps P825 Installation, Use and Maintenance Booklet 4-26-13 Description Quantity * denotes contained in seal kits listed below. Plug Washer Spring Centering Guide Ball End Cap Screw Washer ‘O’ Ring Pump Body Seal pack #69 shown in detail. Sealing Washer edge should be toward the fluid side.
- Page 9 Hydronic Air Driven Pumps P825 Installation, Use and Maintenance Booklet 4-26-13 Screw Washer Head Old Air Valve Ring Nut Ring Nut ‘O’ Ring Sealing Ring Self Locking Nut Air Piston ‘O’ Ring Brackets Cylinder Barrel Plug ‘O’ Rings Oil Piston...
- Page 10 Hydronic Air Driven Pumps P825 Installation, Use and Maintenance Booklet 4-26-13 New Air Valve ITEM CODE DESCRIPTION 5.065.0052 BLOCK 3.051.0109 O-RING 3.051.0130 O-RING 3.094.0026 SCREW 4.091.0020 POWER VALVE 4.091.0028 PILOT VALVE 3.094.0061 SCREW 3.070.0096 SILENCER 3.070.0068 SILENCER 3.070.0028 PLUG Seal Kits for complete overhaul:...
